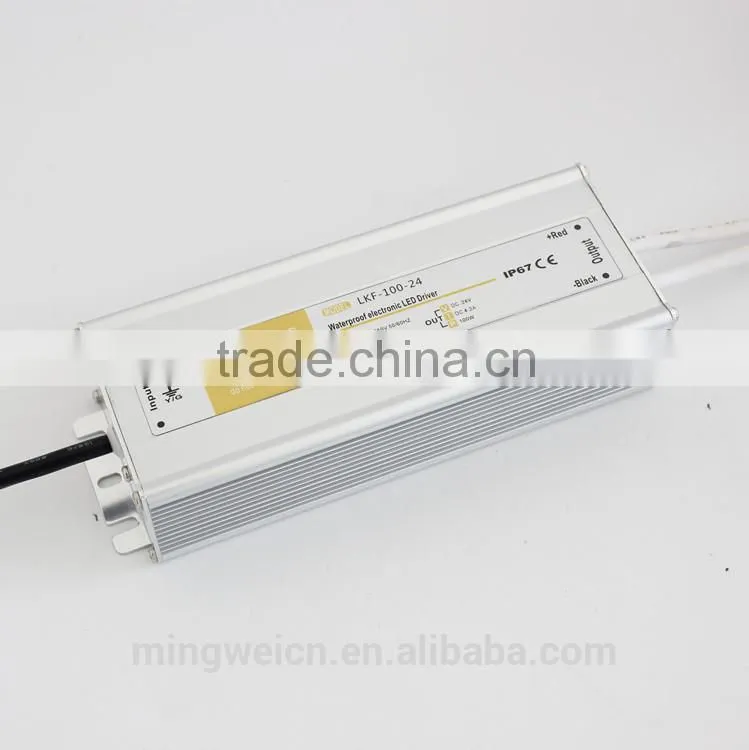

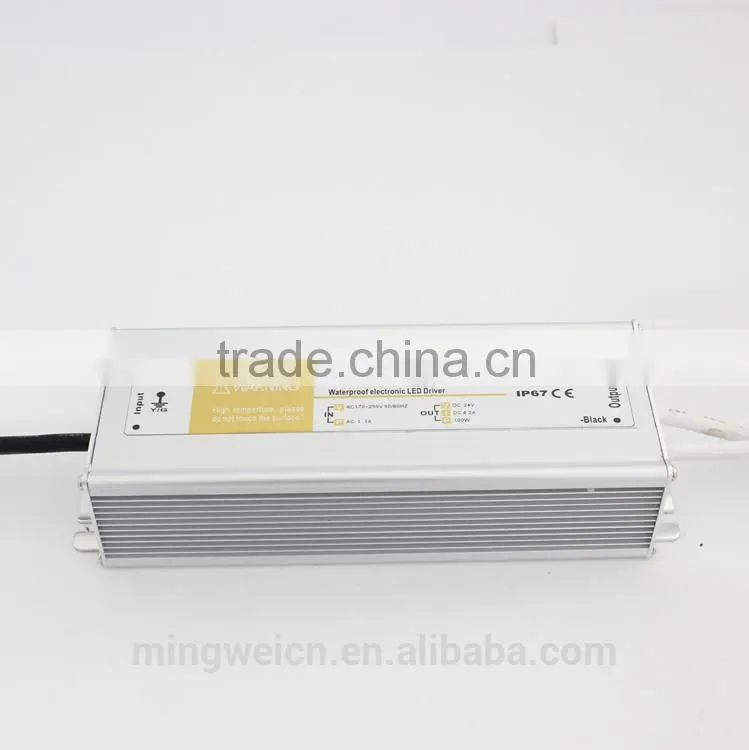

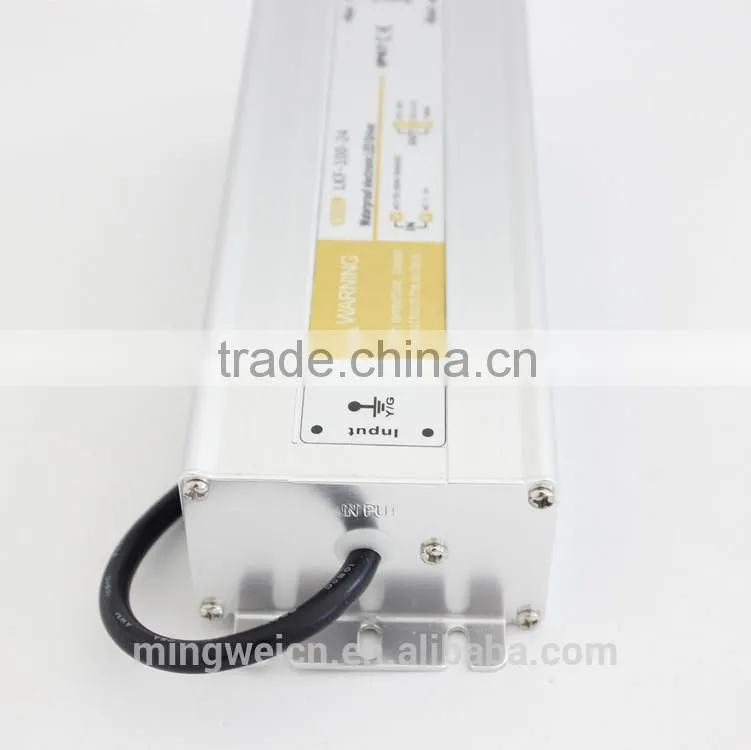

24V 100W Waterproof Constant Voltage Led Strip Power Supply
1.Features of led switching power supply
- Small size, High efficiency, High reliability, Long lifetime;
- Comp Universal AV input with full range: 90VAC~264VAC
- Comply with IP67 standard
- Compliant to worldwide safety regulations for lighting
- 100% burn-in tests (at full load), full-round tests. Stable and reliable
- Rated output can be customized
- Protection: Overload, Short-circuit, Over-temperature protection
3.specification
| LPV-100 series led waterproof power supply | ||||
| model specification | LPV-100-12 | LPV-100-15 | LPV-100-24 | LPV-100-48 |
| DC output voltage | 12v | 15v | 24v | 48v |
| Output voltage tolerance | ±5% | ±5% | ±5% | ±5% |
| Rated output current | 8.5A | 6.7A | 4.5A | 2A |
| Output current range | 0-8.5A | 0-6.7A | 0-4.5A | 0-2A |
| Ripple and noise | 100mvp-p | 150mvp-p | 150mvp-p | 150mvp-p |
| DC output power | 100w | 100w | 100w | 100w |
| Efficiency | 81% | 81% | 84% | 84% |
| Adjustable range for DC voltage | 170~264VAV ,47-63Hz ,240~370VDC | |||
| Input current | 1.2A/230V | |||
| AC dash current | Cold-start current 30A/230V | |||
| Leakage current | <1mA/240VAC | |||
| Overload protection | 115%~135% hiccup mode,auto-recovery | |||
| Over voltage protection | 115%~135% cut off the output,auto-recovery | |||
| High-temperature protection | ≥85°C cut off the output,auto-recovery | |||
| waterproof level | IP67 | |||
| Startup .rise .retention time | 200ms 100ms 30ms | |||
| Withstand voltage | I/P-O/P:1.5KVAC 1 minute I/P-FG:1.5KVAC 1 minute O/P-FG:0.5KVAC 1minute | |||
| Working temperature and humidity | -10°C- 60+°C,20%-90%RH | |||
| weight/packing | 1.2kg/pc,20pcs/carton,25kg in all | |||
| dimension | 222*68*43mm | |||
4.Key Application:
- Suitable for LED electronic display screen,
- LED street lights, LED tunnel lights,
- LED bridge lights, LED panel lights,
- LED ceiling lights, moving sign application, etc.
Shipping Policy:
• Samples checking: sending by Express (DHL / UPS / FEDEX / TNT/EMS)
• Bulk production: sending out by cargo shipping / air freight / Express
The service theory of our company is: Customer-driven organization supported by the productive people. If for any reasons you feel inconvenient, please contact us with no hesitate and we will do our best to help you resolve the problem.
Our perfect services are as followings:
2. Clients satisfied on the right schedule and quality
3. Professional service before and after sale competitive price
4. Quick feedback (Any of your inquiries will be replied with 24 hours)
JiangXi Mingwei Electric Co., Ltd was founded in 2003, which specializes in designing, researching, manufacturing and exporting switching power supply in China. Our new factory is located in TaiShang Pioneer industry Park Ruijin City Jiangxi province China , covering an area of 21000 square meter, factory building area for 20000 square meter. The products include AC/DC&DC/DC standard,DC/AC inverters PFC, open frame, battery charger, din rail, LED driver and custom-design switching power supplies, over 5000 models showing great flexibility. Mingwei has been a famous brand in China, and increasingly well-known in world market.
1. What is your warranty? And if I got wrong ones, how will you do with it?
A: If having wrong ones which cannot work, pls show us pictures, and we will replace the relative spare parts or a new one accordingly. If you wanna to refund, it also can be discussed.
2. What is your minimum order quantity?
A: The MOQ is 10PCS, but the quantity for OEM packages should be 1000PCS or more.
3. Which payment terms you can accept?
A: We accept T/T, L/C,
4. What are the shipping ways you can offer?
A: We can delivery the goods by air/sea/express according to customers' requirements. We can send goods by Shantou/ Xiamen port, usually from Xiamen Port is more convenient.
5. How about your goods’ quality?
A: All our goods are certificated by CE, RoHS and FCC. High quality is widely recognized by Europe and America.
6. Do you make OEM?
A: Yes, we can provide all kinds of OEM packing and labels.
