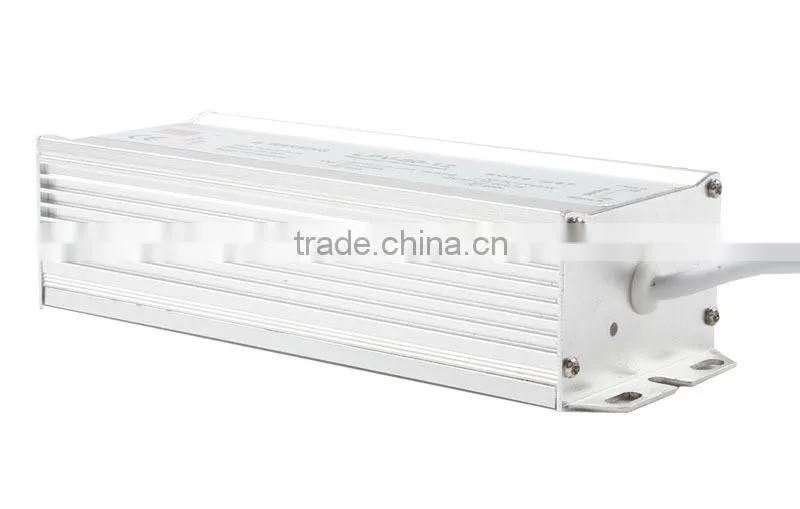

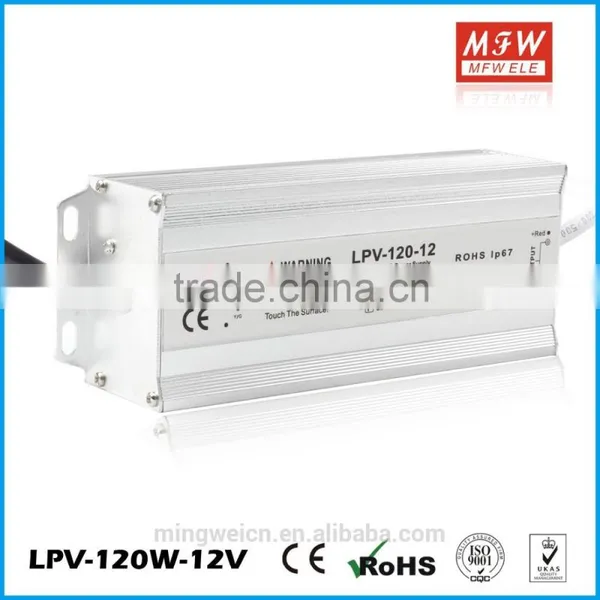

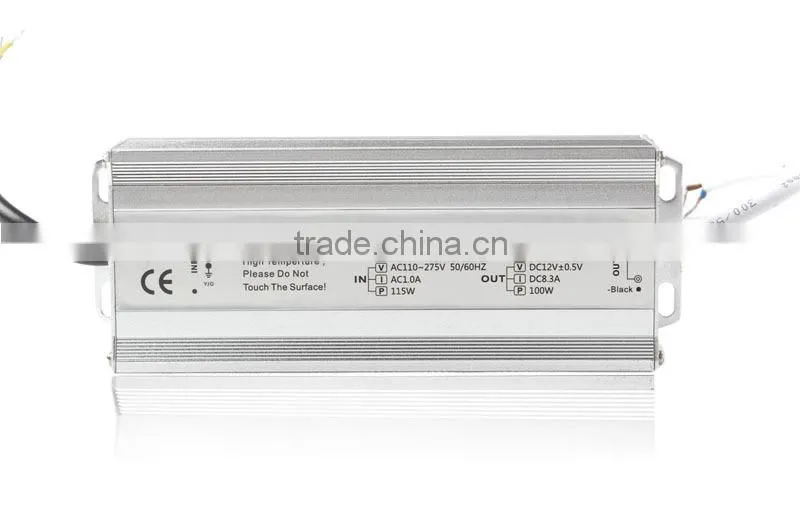

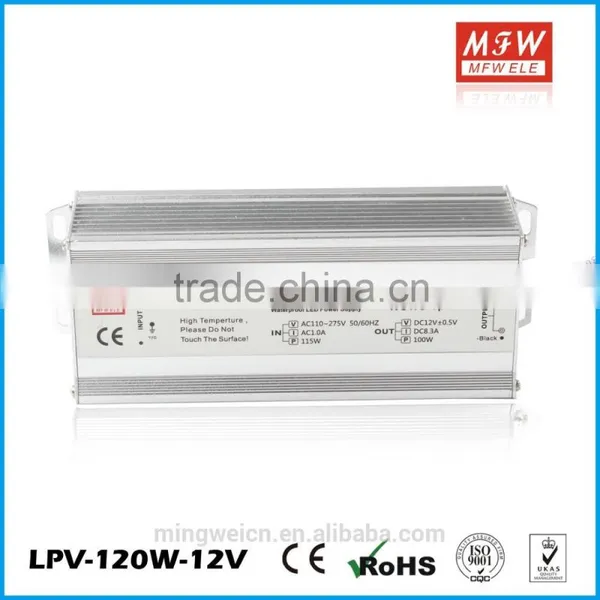

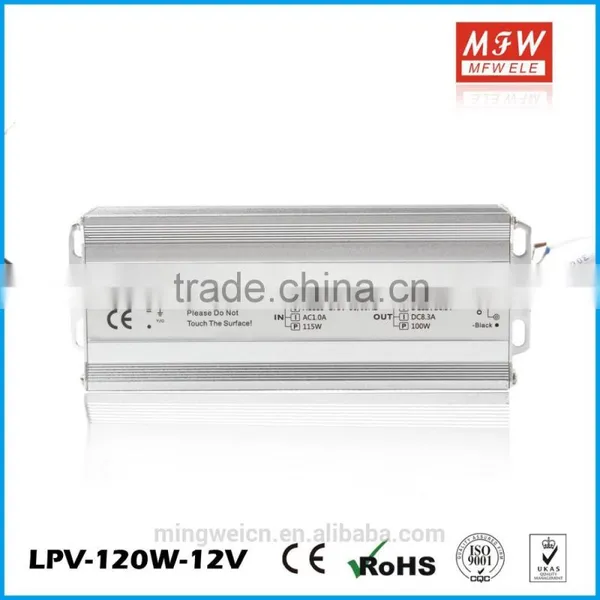

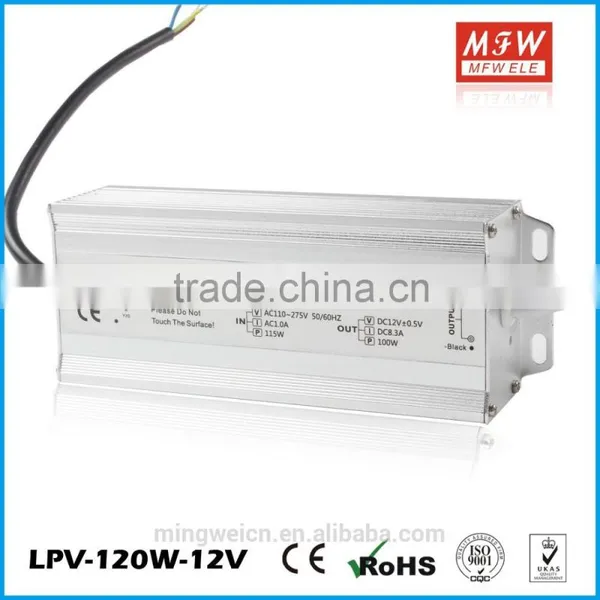

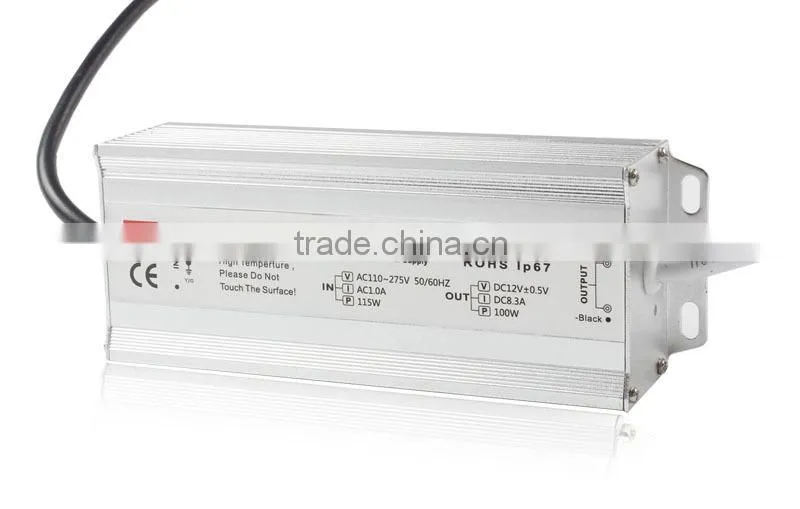

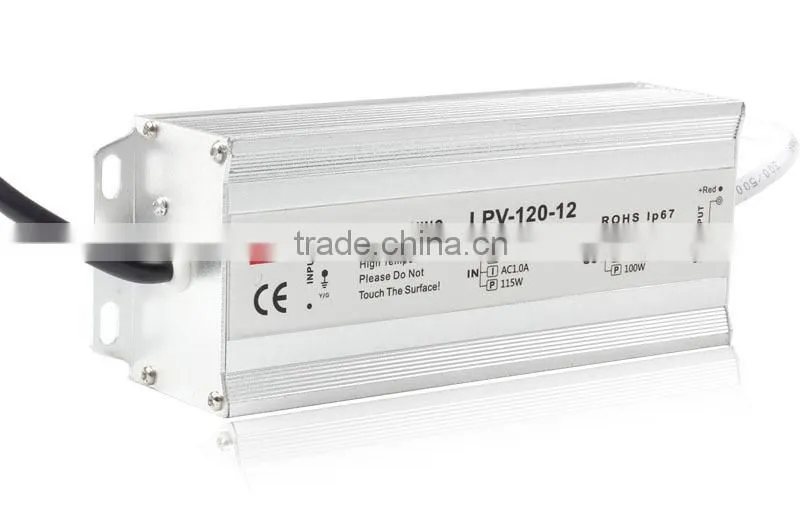

Help CenterConstant Voltage Waterproof LED Driver 12V 120W
Related Products
-
Mini Size High Efficiency Waterproof Power Supply Constant Voltage 120W 12voltUS$ 9.7 - 13MOQ: 1 Piece -
IP67 Constant Voltage Waterproof Power Supply Led Driver 12v 100wUS$ 9.7 - 13MOQ: 1 Piece
-
UL TUV Approved 12v 80w Waterproof Led Power Driver Constant Voltage LED Strip Power Supply With Ce ApprovedNegotiableMOQ: 100 Pieces
-
Aluminum ac to dc 60w 5a Waterproof Power Supply 12v Led DriverUS$ 4 - 6.5MOQ: 50 Pieces
-
China Supplier Wateproof 30W 12V Led Driver Light Transformer DC Power SupplyUS$ 2 - 6.5MOQ: 50 Pieces
Single Output Type Waterproof Led Driver
120W Led Driver Specifications:
| Model | LKF-120-12 | LKF-120-15 | LKF-120-24 | LKF-120-48 |
| Output | 12V,0~10A | 15V,0~8A | 24V,0~5A | 48V,0~2.5A |
| Error | ±5% | ±5% | ±5% | ±5% |
| Range | 75mV | 75mV | 75mV | 75mV |
| Efficiency | 83% | 83% | 84% | 84% |
| AC input voltage range | 110~264VAC 47~63Hz 240~370VDC | |||
| Input current | 1.2A/230V | |||
| AC inrush current | Cold-start current 40A/230V | |||
| Leakage current | Less than 1mA/230VAC | |||
| DC adjustable range | ±10% rated output voltage | |||
| Over load protection | 115~135% hiccup mode,auto-recovery | |||
| Waterproof level | IP67 | |||
| Setup rise hold up time | 200ms,100ms,30ms | |||
| Withsatand voltage |
I/P-O/P:1.5KVAC 1 minute I/P-FG:1.5KVAC 1 minute O/P-FG;0.5KVAC 1 minute |
|||
| Working temperature | -10 ° C~+60 ° C/20%~90%RH | |||
| Weight/Packing | 0.81KG, size:163mm*68mm*44mm 20pcs /ctns |
|||
Product size: 163mm*68mm*44mm
(L*W*H), 0.81KG/pc
Packaging: 20pcs/carton, GW: 19 Kg,
Delivery method:
ü Express service: FedEx/DHL/UPS/TNT/EMS
ü Air transportation: factory to airport
ü Ocean shipping: factory to port
Packing box picture:
Mingwei Corporation has been recognized as the leading manufacturer of industrial switching power supply and inverters in China. Our self-invested new factory is located in Jiangxi Ruijin, covering an area of 21000m2, and the factory building reach 20000m2. Our company offer products and services ranging from switching power supplies AC/DC&DC/DC standard, PFC, open frame, battery charger, din rail, LED driver to power inverter including mini car inverter, modified sine wave and pure sine wave inverter, battery charger, inverter with charger, domestic inverter, dc to dc converter, solar controller, solar power system, jump starters and other solar related products. Besides, more than 5000 models showing great flexibility. We have R&D department with more than 20 people to insure our product quality, with more than 500 workers guarantee on-time delivery.
- 1. Providing free samples for testing
- 2. The most authentic factoryprice.
- 3. We can use your logo and label on our products.
- 4. We can design and develop products according to your requirements.
- 5. We have longterm cooperation with our forwarder,so we can provide you the lowest freight and the fastest service..
- 6. All of our products have proceeded aging test before shipment and we guarantee to use our products safety.
- 7. All products and accessories have been tested by 3 times before ship out.
- 8. All products have 2 year warranty ,if there is no man-made problem,we will replace or repair for your freely.
- 9. We own the best after-sale service ,if any problems happen, our team will do
