OEM D-30a 30w 5v 12v dual switching power supply with low price
| Specification | D-30A | D-30B | ||
| CH1 | CH2 | CH1 | CH2 | |
| DC output voltage | 5V | 12V | 5V | 24V |
| Output voltage range | ±2% | ±3%,-7% | ±2% | ±3%,-5% |
| Rated output current | 4A | 1A | 2.2A | 1A |
| Output current range | 1~4A | 0.1~1A | 1~2.2A | 0~1A |
| Wave and noise | 50mVp-p | 100mVp-p | 50mVp-p | 100mVp-p |
| DC output power | 32W | 35W | ||
| Efficiency | 72% | 74% | ||
| AC input voltage range | 85~132VAC/170~264VAC selected by switch 47~370VDC | |||
| Input current | 0.8A/115V 0.45A/230V | |||
| AC inrush current | cold start current 18A/115V 36A/230V | |||
| Overload protection | 105%~150% Type:pulsing hiccup shutdown reset:auto recovery | |||
| Setup,rise,hold up time | 200ms,100ms,30ms | |||
| Working temperature and humidity | -10 °C~+60 °C ,20%~90%RH | |||
| Store temperature and humidity | -20 °C ~+85 °C ,10%~95%RH | |||
| Overall dimension | 129*98*38mm | |||
| Weight | 0.4kgs | |||
| Safety standards | Meet UL1012 requirement(not apply for the mark) | |||
| EMC standards | Meet FCC PARTI5J Conduction class B | |||

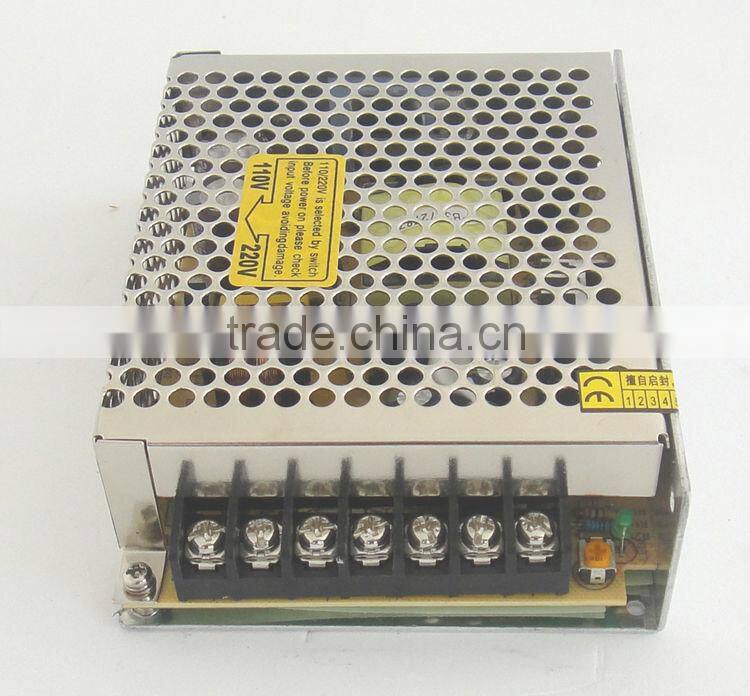

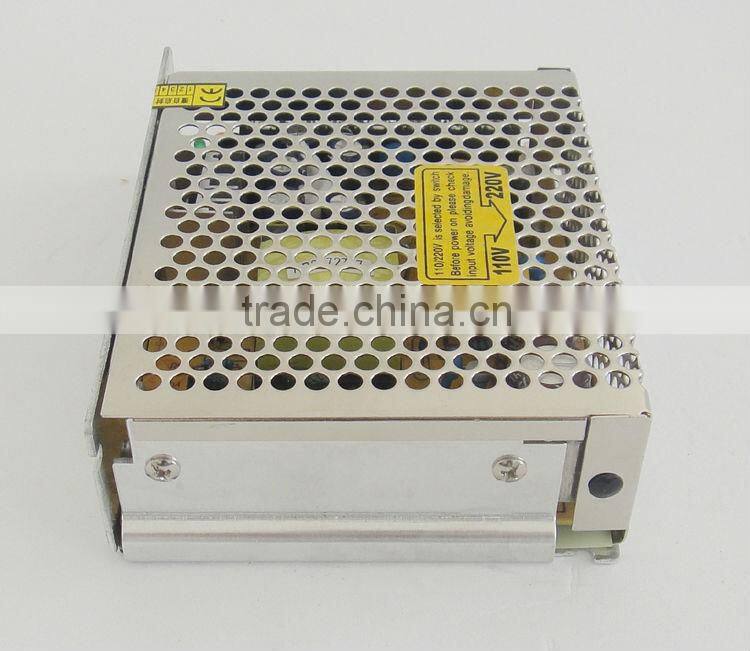

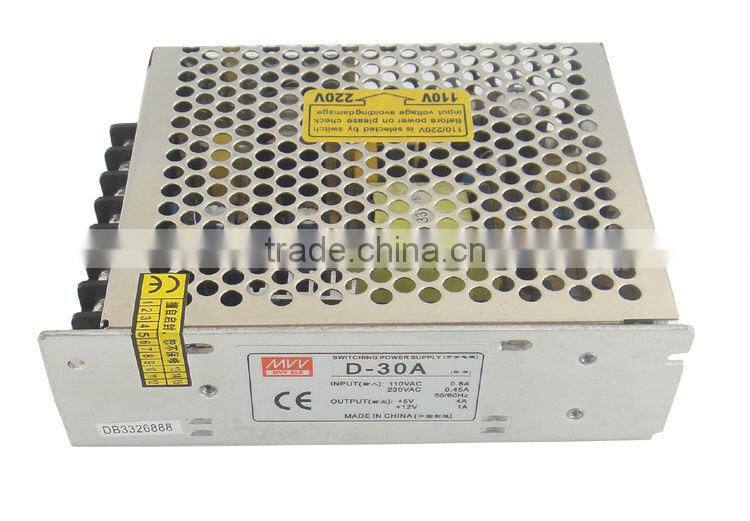

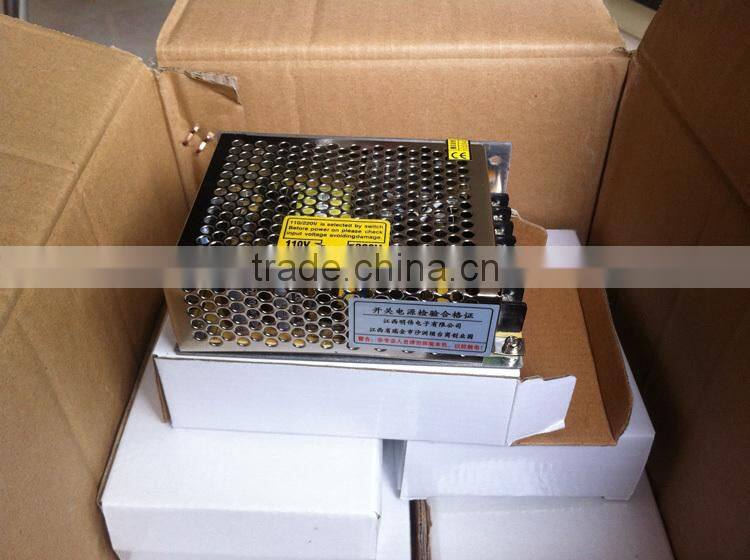

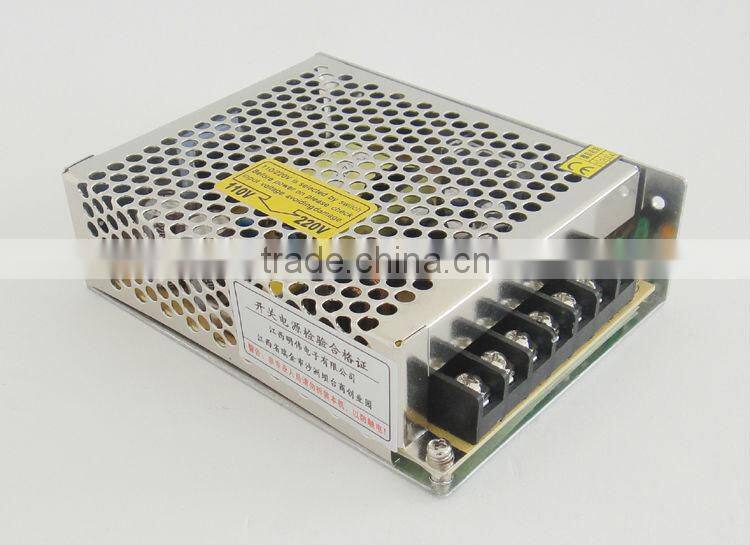

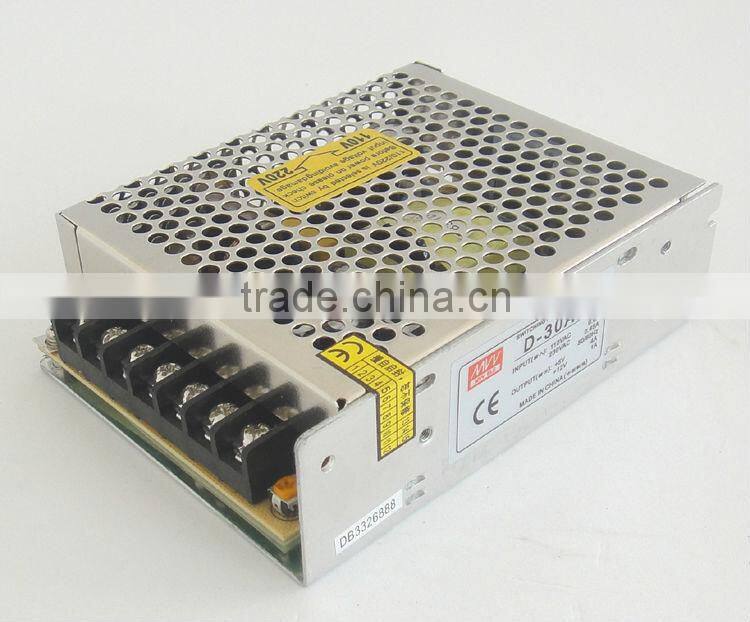

2,Product pictures
3.Related certifications
7 Advantages
1,-Global leading professional inverter manufacturer
2,-Perfect product quality:100% full bum-in test
3,-Test report:CE,RoHS,UL,ISO9001-2008
4,-Monthly production capaciy:8,000 pcs
5,-Fast delivery:Usually in 7 days
6,-20,000 square meters workshop,200 skilled workers
7,-OEM & ODM both are warmly welcomed
Mingwei Corporation, founded in 2003,is recognized as the leading manufacturer of industrial switching powelies and inverters in China. Our self-invested new factory is located in Jiangxi Ruijin, covering an area of 21000m²,factory building 20000m².The products include AC/DC&DC/DC standard, PFC, open frame, battary charger, din rail, LED driver and custom-design switching power supplies, over 5000 models showing greating flexibility. “Mingwei” has been a famous brand in China, and incresingly well-known in world market.

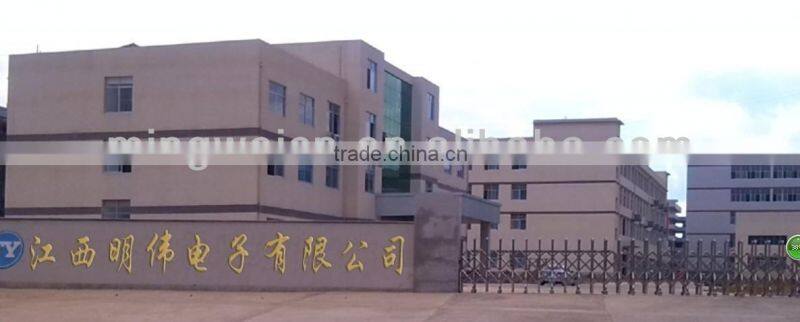

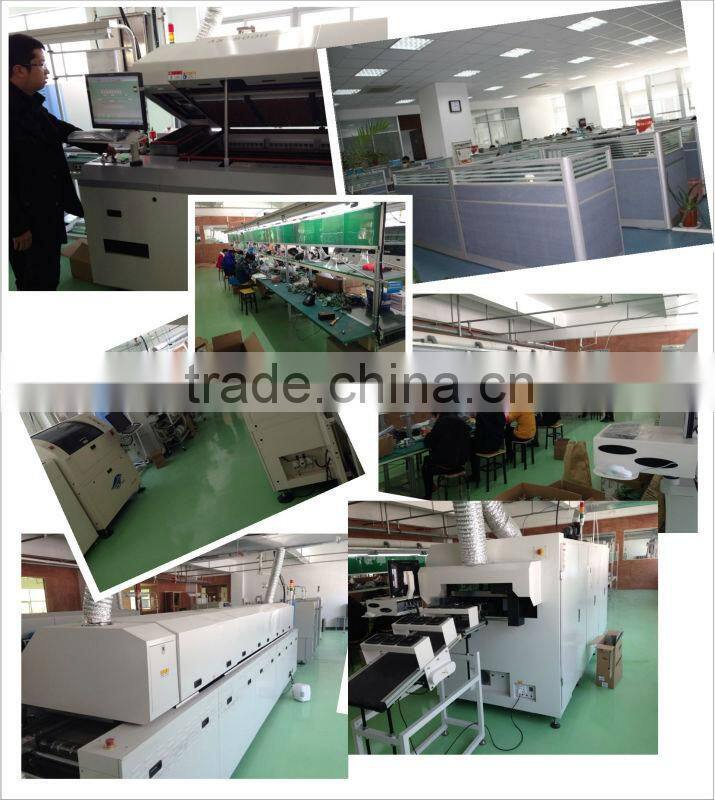

WELCOME TO VISIT OUR FACTORY!
