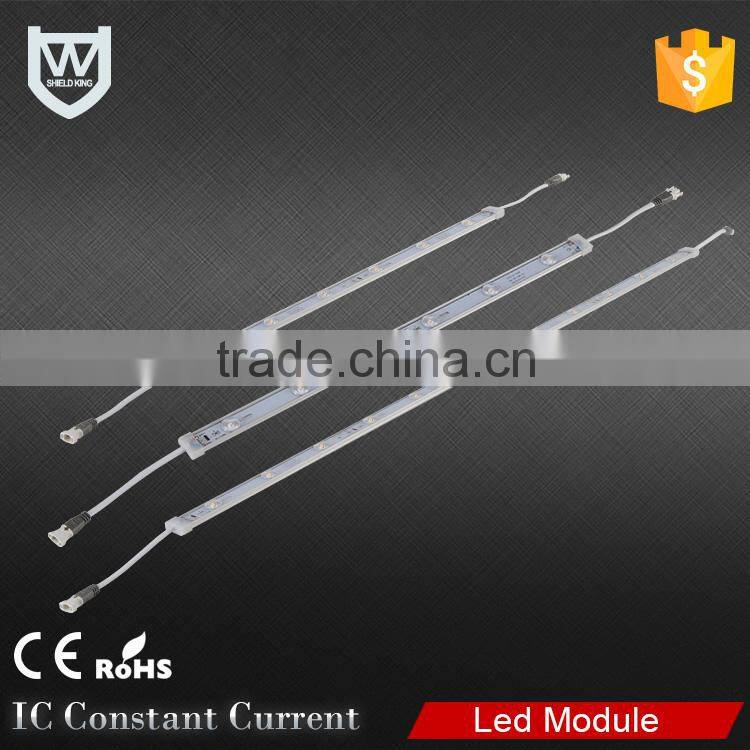

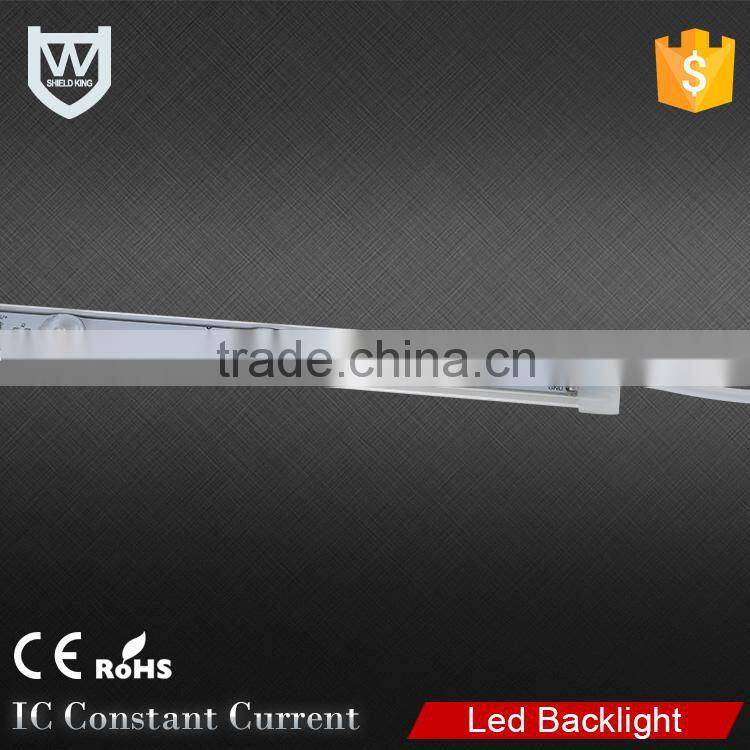

Promotion IC constant current led module bar 3 Years Warranty DC 12V osram 3030 LED Module ip67

Name: Promotion IC constant current led module bar 3 Years Warranty DC 12V osram 3030 LED Module ip67
Brand: Shield King
Availability: InStock

FOB Price

USD $2.55 - $2.92 / Piece

100 Pieces(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port Shenzhen/ Guangzhou/ Zhongshan
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Model Number	DW-M001-440-6W	Chip Material	InGaN
Emitting Color	Other, warm white/ middle white/ pure white	Luminous Flux(lm)	600
Power	Other, 6W, 6W	Color Rendering Index(Ra)	85
Color Temperature	3000K/ 4000K/ 6000k	Operating Temperature(℃)	-30, 80
Storage Temperature(℃)	-30, 80	Place of Origin	Guangdong, China
Brand Name	Shield King	Certification	CE

Product Description

Promotion IC constant current led module bar 3 Years Warranty DC 12V osram 3030 LED Module ip67

warm white led module	Specification
	Brand	Shield King
	Name	led module bar,warm white led module, led sign module
	Model	DW-M001-44-6W
	Dimension	L440W20H6mm
	Power	6W( 6pcs*1W)
	LED brand	Osram 3030led
	LED Qty	6pcs
	Input voltage	AC12V / DC24V
	CCT	6000K/ 4000K/ 3000K
	IP Rating	IP67
	Operating Current	150mA
	Viewing angle	178°
	Operating humidity	10%-90%RH
	Material	Aluminum profile
	Working lifespan	50,000 hrs
	Control Propram	Import constant IC from Japan, stable constant current and efficiency
	Feature	1: Our products are adopted original German Osram led, which is characteristic efficiency, stable, durable and eco-friendly. 2: The shell is made from aluminum alloy, perfect sructure and elegant shape. It's solid, corrosion resistance and easily install. 3: Import Japan acrylic backlight lens, lead to high light transmittance, wide viewing angle, meet the requirement of short distant backlighting installtion. 4: The leds are protected by the embedment from top grade waterproof silicone, the IP grade is 67
	Application	1: Advertisement lighting boxes in subway, airport, railway station etc. 2: Indoor & outdoor of signage illuminating in hotels, stores.. 3: Backlighting for the exterior wall of building. 4: Decorating the channel of indoor as Cove lighting

Led module bar

Hot Sale

AD lighting boxes in subway, airport, railway station etc. Backlighting for words, hotel, etc...

Power supply

led module shipping

FAQ

Q1: What is the Warranty for the light?

A1: For the light,we have 2 years warranty.If there is any proble on our responsibility we pay the ship and repalcement.

Q2: What is colour temperature?

A2: Shield King's LED Lighting offer lamps in warm, natural,pure and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is, the warmer the light given by the LED

• Warm white = 2700K-3200K

• Natural white = 4000K-4500K

• Pure white = 5000K-5500K

• Cool white = 6000K-6500K

Q3:: What is CRI?

A3: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.For LED tubes,the CRI is mostly 70-75Ra,and 80Ra with higher cost.But there are some suppliers write a high data to attract clients,please note.

Q4: Will your LED light spotlight work on a dimmer switch?

A4: We do not recommend using our LED spotlight on a dimmer switch, this type of switch can potentially cause damage to the light.If you want we will custome for you.
