Home > Products > Led module light > Wholesale module price ce rohs 2.4W waterproof 4 LEDS SMD 5730 injection LED Module for advertising backlighting

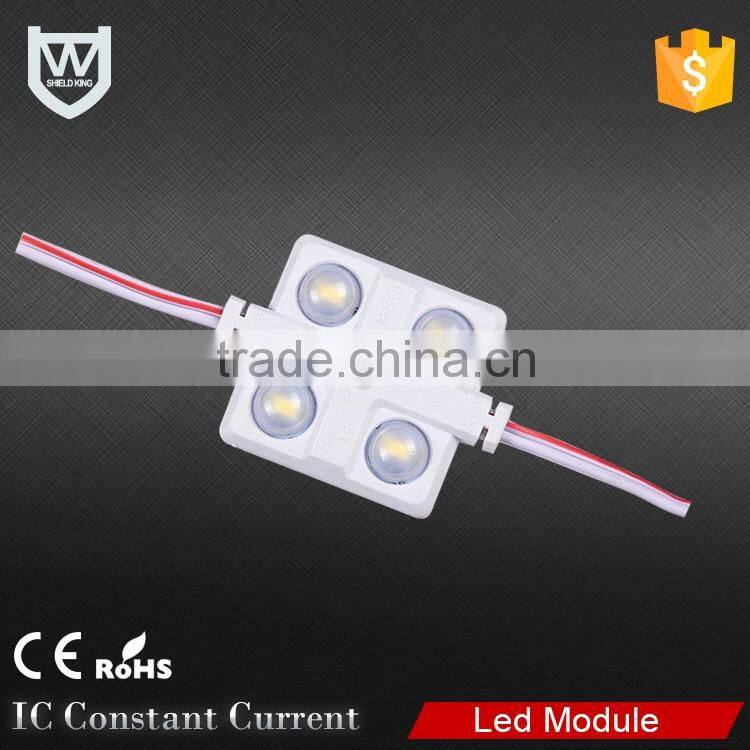

Wholesale module price ce rohs 2.4W waterproof 4 LEDS SMD 5730 injection LED Module for advertising backlighting
- 100000 Piece / Pieces per Month
- Shenzhen/ Guangzhou/ Zhongshan
- Credit Card
You May Like
-
High Quality 1w Injection Waterproof cob power led injection module rgb for Advertising light boxes
-
waterproof IP65 165LM SMD led module 3leds white red green blue R/G/B 1.2W 5730 led modules
-
High quality IP65 180LM 2w led backlight white cob high power flip chip led module 12v with ce rohs certificate
-
3 Years warranty ABS injection IP65 waterproof unique SMD 2835 edge lighting led module 12v with optical lens
-
China Injection Molding Waterproof 4LEDs 5730 SMD Mini LED Module Decorative Light Lamp 12V
-
CE ROHS Listed Aluminum Osram 1.44watt edge light led 12V 120LM high power led module for led channel letter
Product Details
| Model Number | DW-M004-2.4W | Chip Material | InGaN | |
| Emitting Color | Other, white/middle white/warm white/R/G/B | Luminous Intensity | high bright | |
| Luminous Flux(lm) | 220 | Power | Other, 2.4W | |
| Power Dissipation | 0.72 | Color Rendering Index(Ra) | 85 | |
| Color Temperature | 6000K\4000K\3000K\R\G\B | Operating Temperature(℃) | -40, 60 | |
| Storage Temperature(℃) | -30, 80 | Place of Origin | Guangdong, China | |
| Brand Name | Shield King | Certification | CE |
Product Description
Wholesale module price ce rohs 2.4W waterproof 4 LEDS SMD 5730 injection LED Module for advertising backlighting
Product name:Led injection module
item/power:DW-M004-2.4W
Application:advertising light source,light box source
luminous letter source,jewelry
bar,KTV,landscape lighting source
PRODUCT PARAMETERS | |||
Item | DW-M004 | Angle | 160° |
power | 2.4W | IP Rating | IP65 waterproof |
LED | 5730 4PCS | Operating Temperatures | -40°—60° |
Voltage | DC12V | Series Qty | 20pcs per bunch the largest series 60pcs (prohibit surpass in series qty) |
Material | PCB+ABS | Adapter power | DC12V |
Size | L38*W38*H9mm | Relative Humidity | 10%—90%RH |
CCT | 6000K4000K3000KRGB | Continuous power | >90% |
Lumen | 220LM | Warranty | 3years |
Current | 200MA | Packaging details | 20pcs per bunch 10bunch per bag 10bag per carton (2000pcs per carton) |
Working life | ≥50000hrs | Carton size | 44*35*27cm |
Power factor | >0.9 | Weight | according to your quantity |
Performance features:
(1)High quality import chip,Top-encapsulation ,high brightness,small lighting failure,good lighting effect
(2)Tai Wan Qi Mei sizing material anti flaming,anti-static,strong weather ability,impact resistant
(3)better heat dissipation,low-power,long-life,maintenance-free
(4)With double-sided adhesive and screws two installation methods, the customers install and use easier
(5)10pcs per bunch the largest series 60pcs prohibit surpass series
Applicable scope:
(1)Led lighting box ,led luminous letter,led sign
(2)Led outdoor advertising sign,bar,KTV
(3) Led lighting engineering,led landscape engineering
(4)Hotel,building external wall landscape
Q1: What is the Warranty for the light?
A1: For the light,we have 2 years warranty.If there is any proble on our responsibility we pay the ship and repalcement.
Q2: What is colour temperature?
A2: Shield King's LED Lighting offer lamps in warm, natural,pure and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is, the warmer the light given by the LED
• Warm white = 2700K-3200K
• Natural white = 4000K-4500K
• Pure white = 5000K-5500K
• Cool white = 6000K-6500K
Q3:: What is CRI?
A3: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.For LED tubes,the CRI is mostly 70-75Ra,and 80Ra with higher cost.But there are some suppliers write a high data to attract clients,please note.
Q4: Will your LED light spotlight work on a dimmer switch?
A4: We do not recommend using our LED spotlight on a dimmer switch, this type of switch can potentially cause damage to the light.If you want we will custome for you.
