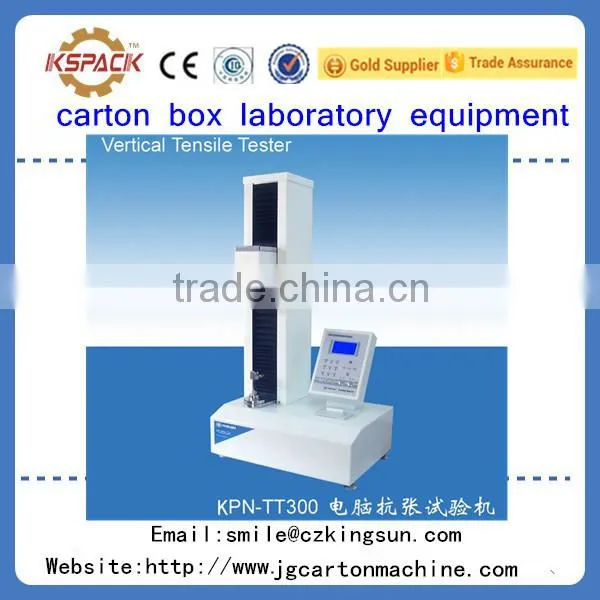

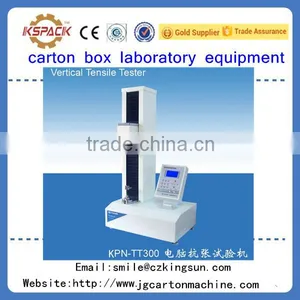

KPN-TT300 Tensile Tester
l Introduction
PN-TT300 computer tensile tester is a new type of test developed by our company according to the specification of national standard. With mechanical and electrical integration configuration, the instrument is well-designed using modern mechanical design theory, human engineering design criteria and advanced double CPU micro computer processing technology. It is a new generation of tester with innovative design, convenient using, excellent performance and pleasing appearance.
With the vertical configuration, the interval between clamping heads of the instrument can be set at will within a certain large range. The instrument is widely used for testing the tensile strength, elongation and tensile energy absorption of paper, paper board and other non-metal materials. It can measure:
Tensile force, tensile strength, fracture length, tensile energy absorption, tensile index, tensile energy absorption index of paper
It can test: Tensile force, tensile strength, peel strength and elongation of foil and aluminum polymer tape,
l Main technical specifications
- Power: AC220V±10% 2A 50HZ
- Measuring range: 4 options are selectable: 0~30N /0~100N/0~300N/0~500N
- Tensile velocity: 1.0~500.0 mm/min (Can be adjusted digitally)
- Return velocity: 1.0~500.0 mm/min(Can be adjusted digitally)
- Interval between clamping heads: 20~200 mm(Can be set digitally)
- Minimum distinguishability for elongation: ≤0.1 mm
- Communication output: standard RS232 interface
- Ambient conditions: temperature 20~40℃. Relative humidity<85%
- External dimensions: Length × Width × Height=530mm×400mm×950mm
