Led Advertising Light Board

Name: Led Advertising Light Board
Brand: Shield King
SKU: 108255013
Availability: InStock

US$ 2.4 - 3.2 MOQ: 50 Pieces

Key Specifications

Model Number:

DW-M001

Chip Material:

InGaN

Emitting Color:

Other, warm white/ middle white/ pure white

Zhongshan Shield King Lighting Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/ Guangzhou/ Zhongshan

Delivery Detail:

Delivery time depends on order quantity.

Model Number DW-M001

Chip Material InGaN

Emitting Color Other, warm white/ middle white/ pure white

Luminous Flux(lm) 1500

Power Other, 15W

Color Rendering Index(Ra) 85

Color Temperature 3000K/ 4000K/ 6000K

Operating Temperature(℃) -30, 80

Storage Temperature(℃) -30, 80

Place of Origin Guangdong, China

Brand Name Shield King

Certification CE

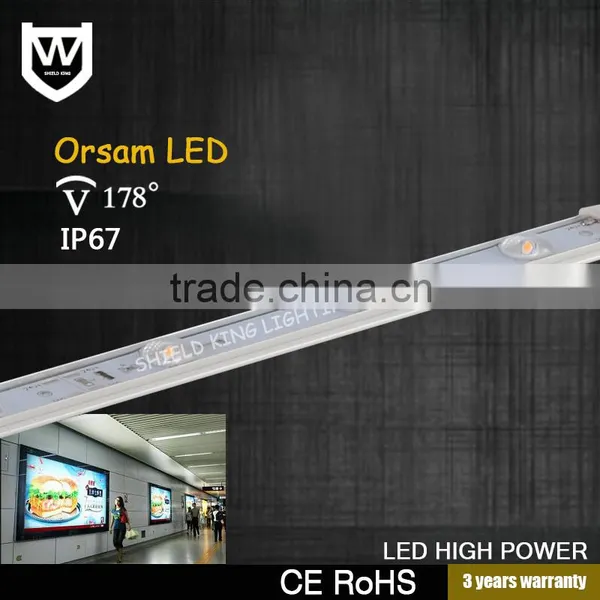

led advertising light board

Feature:

Widely application in led channel letter, backlighting, billboard and lightbox in store, subway lighting boxes.
Easily installation.
High brightness with constant current IC.
Long working life reduce the cost the replace the lights.

Led rigid bar data

lightbox led strip bar	Specification
	Brand	Shield King
	Name	led module bar, led rigid bar, led strip bar, lightbox led strip bar
	Model	DW-M001-1085-15W
	Dimension	L1085W20H6mm
	Power	15W( 15pcs*1W)
	LED brand	Osram 3030led
	LED Qty	15pcs
	Input voltage	AC12V / DC24V
	CCT	6000K/ 4000K/ 3000K
	IP Rating	IP67
	Operating Current	150mA
	Viewing angle	178°
	Operating humidity	10%-90%RH
	Material	Aluminum profile
	Working lifespan	50,000 hrs
	Control Propram	Import constant IC from Japan, stable constant current and efficiency
	Feature	1: Our products are adopted original German Osram led, which is characteristic efficiency, stable, durable and eco-friendly. 2: The shell is made from aluminum alloy, perfect sructure and elegant shape. It's solid, corrosion resistance and easily install. 3: Import Japan acrylic backlight lens, lead to high light transmittance, wide viewing angle, meet the requirement of short distant backlighting installtion. 4: The leds are protected by the embedment from top grade waterproof silicone, the IP grade is 67
	Application	1: Advertisement lighting boxes in subway, airport, railway station etc. 2: Indoor & outdoor of signage illuminating in hotels, stores.. 3: Backlighting for the exterior wall of building. 4: Decorating the channel of indoor as Cove lighting
