Specifications
Engine Oil Filter Machine1. vacuum type
2. for viscosity less than 220mm 2/s
ZJC Series Vacuum Engine Lubrication Oil Filter Machine
(Suitable for lubricating oil with Kinetic viscosity < 320mm²/s)
Machinery oil, hydraulic oil, compressor oil, refrigerator oil and other industrial oil will be polluted by water, emulsification and particles from transportation and lubricating system running.
Features of the oils: high viscosity, high water content, high requirements on cleanness.
YUNENG ZJC Series Vacuum Engine Lubrication Oil Filter Machine can effectively remove water and particles. To solve emulsification and remove water by vacuum distillation, remove particles by multi-stage of filters.
The special design and mature technology can promise its after-treatment oil index:
Water content: ≤50ppm
Filtration accuracy: 3 micron
Particles: no (by visual test)
Parameter of ZJC Series Vacuum Engine Lubrication Oil Filter Machine
Item |
Parameter |
Unit |
ZJC0.6KY-R |
ZJC1.2KY-R |
ZJC1.8KY-R |
ZJC3KY-R |
ZJC6KY-R |
ZJC9KY-R |
ZJC12KY-R |
ZJC18KY-R |
|
Technical Parameter |
Flow Rate |
L/min |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|
Working Vacuity |
Mpa |
-0.07 ~ -0.101 |
|||||||||
Working Pressure |
Mpa |
≤0.6 |
|||||||||
Temperature Range |
oC |
45-65 |
|||||||||
Power Supply |
|
50Hz 380V 3-Phase 4-Wire (or as requested) |
|||||||||
Total Power |
KW |
6+1.5 |
9+1.5 |
12+1.5 |
30+3 |
2X30+4.4 |
3X30+6 |
4X30+7 |
5X30+9 |
||
Inlet/Outlet Diameter |
mm |
20/20 |
20/20 |
25/20 |
32/25 |
38/32 |
64/48 |
76/64 |
89/76 |
||
|
Size |
Length |
mm |
1300 |
1300 |
1300 |
1900 |
1900 |
2100 |
2200 |
2300 |
|
Width |
mm |
1000 |
1050 |
1050 |
1400 |
1400 |
1500 |
1600 |
1700 |
||
Height |
mm |
1250 |
1450 |
1450 |
1950 |
2100 |
2150 |
2250 |
2300 |
||
Weight |
Kg |
350 |
420 |
510 |
950 |
1200 |
1600 |
2200 |
3500 |
||
Oil Treatment Index |
Water Content |
ppm |
≤100 |
||||||||
Filtering Accuracy |
µm |
≤5 |
|||||||||
Cleanness |
NAS |
Grade 5~7 |
|||||||||

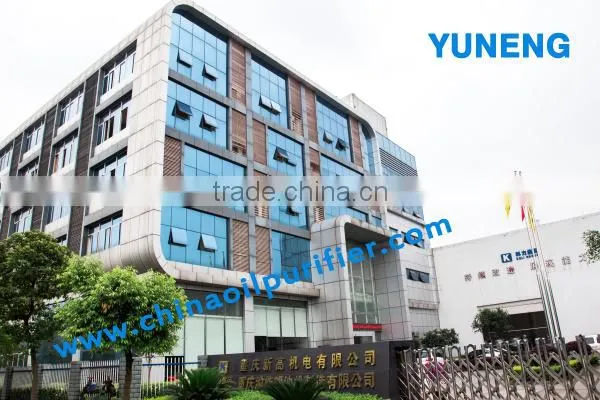

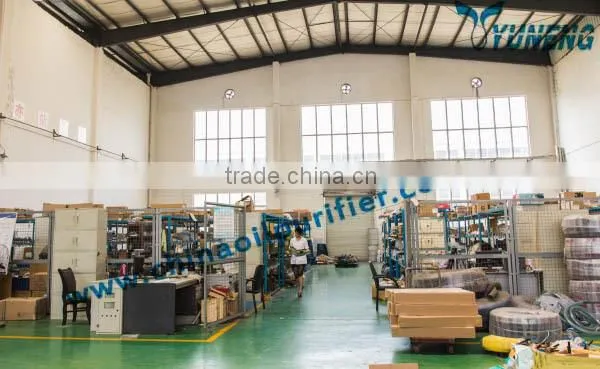

Factory & workshop look
To be shipped
Exibition
Yuneng products list:
1. Insulation Oil filtration machine:
ZJA Ultra-high Transformer / Insulation Oil filtration machine (1000KV, ±800KV, 750KV, ±660KV project) (2 stage vacuum)
ZJA High-vacuum Transformer / Insulation Oil filtration machine (110KV-500KV project)) (2 stage vacuum)
ZJB Transformer / Insulation Oil filtration machine (≤110KV) (one stage vacuum)
ZJ Vacuum Pumping machine (extract vacuum, dry transformer)
GF Dry Air Generator (produce dry air for operators to maintain transformer, reactors…).
JZ OLTC (on-load tap changer) online Oil filtration machine
Quantitative oil injection machine (customized product)
2. Turbine Oil filtration machine:
JT coalescing dehydration oil filtration machine (dehydration by special filters)
DYJC online turbine oil filtration machine (dehydration by special filters and vacuum system)
ZJC-T vacuum oil filtration machine for turbine oil (dehydration by vacuum system)
3. Lubricating Oil filtration machine:
ZJC-R Series Vacuum Engine Lubrication Oil Filter Machine (machinery oil, hydraulic oil, compressor oil, coolant oil, cutting oil..)
ZJC-M Oil filtration machine for OCS. (oil with high viscosity 100-320cst at 40℃)
4. Other kinds of oil filtration machine:
KYJ fire-resistance oil filtration machine (EHC oil)
LY plate-frame pressure oil filtration machine (simple, paper filtration)
YL mobile oil filtration machine (simple, cheap)
5. Waste oil regeneration machine (by chemicals or by high temperature distillation)
YNZSY used oil filtration machine (by chemicals)
YNZSY-LTY used tire oil filtration machine (by chemicals)
Waste oil distillation machine
6. Oil tester/ analyzer:
Dielectric oil breakdown strength tester
Water content tester
Inline Digital Flow Meter and Totalizer
Viscosity analyzer
Flash point analyzer (close cup)
Flash point analyzer (open cup)
Interfacial tension analyzer
Gas chromatograph
