Specifications
YUNENG Vacuum Hydraulic Oil Processing Machine1. vacuum type
2. for viscosity less than 320mm 2/s
3. remove water and partic

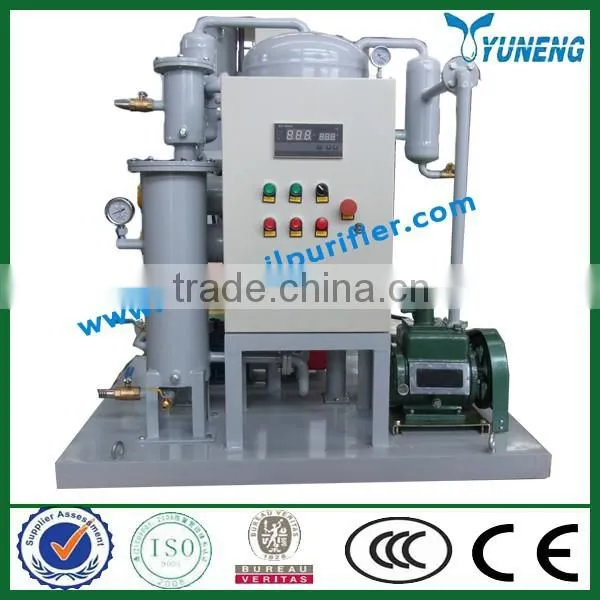

YUNENG Vacuum Hydraulic Oil Processing Machine
(Suitable for lubricating oil with Kinetic viscosity < 320mm²/s)
YUNENG Vacuum Hydraulic Oil Processing Machine (Machinery oil, hydraulic oil, compressor oil, refrigerator oil and other industrial oil )will be polluted by water, emulsification and particles from transportation and lubricating system running.
Features of the oils: high viscosity, high water content, high requirements on cleanness.
YUNENG vacuum hydraulic oil processing machine can effectively remove water and particles. To solve emulsification and remove water by vacuum distillation, remove particles by multi-stage of filters.
The special design and mature technology can promise its after-treatment oil index:
Water content: ≤50ppm
Filtration accuracy: 3 micron
Particles: no (by visual test)
Item |
Parameter |
Unit |
ZJC0.6KY-R |
ZJC1.2KY-R |
ZJC1.8KY-R |
ZJC3KY-R |
ZJC6KY-R |
ZJC9KY-R |
ZJC12KY-R |
ZJC18KY-R |
|
Technical Parameter |
Flow Rate |
L/min |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|
Working Vacuity |
Mpa |
-0.07 ~ -0.101 |
|||||||||
Working Pressure |
Mpa |
≤0.6 |
|||||||||
Temperature Range |
oC |
45-65 |
|||||||||
Power Supply |
|
50Hz 380V 3-Phase 4-Wire (or as requested) |
|||||||||
Total Power |
KW |
6+1.5 |
9+1.5 |
12+1.5 |
30+3 |
2X30+4.4 |
3X30+6 |
4X30+7 |
5X30+9 |
||
Inlet/Outlet Diameter |
mm |
20/20 |
20/20 |
25/20 |
32/25 |
38/32 |
64/48 |
76/64 |
89/76 |
||
|
Size |
Length |
mm |
1300 |
1300 |
1300 |
1900 |
1900 |
2100 |
2200 |
2300 |
|
Width |
mm |
1000 |
1050 |
1050 |
1400 |
1400 |
1500 |
1600 |
1700 |
||
Height |
mm |
1250 |
1450 |
1450 |
1950 |
2100 |
2150 |
2250 |
2300 |
||
Weight |
Kg |
350 |
420 |
510 |
950 |
1200 |
1600 |
2200 |
3500 |
||
Oil Treatment Index |
Water Content |
ppm |
≤100 |
||||||||
Filtering Accuracy |
µm |
≤5 |
|||||||||
Cleanness |
NAS |
Grade 5~7 |
|||||||||
Factory & workshop look
To be shipped
Exibition
Yuneng products list:
1. Insulation Oil processing machine:
ZJA Ultra-high Transformer / Insulation Oil processing machine (1000KV, ±800KV, 750KV, ±660KV project) (2 stage vacuum)
ZJA High-vacuum Transformer / Insulation Oil processing machine (110KV-500KV project)) (2 stage vacuum)
ZJB Transformer / Insulation Oil processing machine (≤110KV) (one stage vacuum)
ZJ Vacuum Pumping machine (extract vacuum, dry transformer)
GF Dry Air Generator (produce dry air for operators to maintain transformer, reactors…).
JZ OLTC (on-load tap changer) online Oil processing machine
Quantitative oil injection machine (customized product)
2. Turbine Oil processing machine:
JT coalescing dehydration oil processing machine (dehydration by special filters)
DYJC online turbine oil processing machine (dehydration by special filters and vacuum system)
ZJC-T vacuum oil processing machine for turbine oil (dehydration by vacuum system)
3. Lubricating Oil processing machine:
ZJC-R vacuum Oil processing machine for lubricating oil (machinery oil, hydraulic oil, compressor oil, coolant oil, cutting oil..)
ZJC-M Oil processing machine for OCS. (oil with high viscosity 100-320cst at 40°C)
4. Other kinds of oil processing machine:
KYJ fire-resistance oil processing machine (EHC oil)
LY plate-frame pressure oil processing machine (simple, paper filtration)
YL mobile oil processing machine (simple, cheap)
5. Waste oil regeneration machine (by chemicals or by high temperature distillation)
YNZSY used oil processing machine (by chemicals)
YNZSY-LTY used tire oil processing machine (by chemicals)
Waste oil distillation machine
6. Oil tester/ analyzer:
Dielectric oil breakdown strength tester
Water content tester
Inline Digital Flow Meter and Totalizer
Viscosity analyzer
Flash point analyzer (close cup)
Flash point analyzer (open cup)
Interfacial tension analyzer
Gas chromatograph
