7 5v 1a ac dc Adapter 9v 1.5a / Canon ac Adapter K30290

7 5v 1a ac dc Adapter 9v 1.5a / Canon ac Adapter K30290 thumbnail-1
7 5v 1a ac dc Adapter 9v 1.5a / Canon ac Adapter K30290 photo-1
US$ 2.5 - 5 MOQ: 500 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
NiteRay
Model Number:
NR6005
Contact Supplier Request Quote Chat Now
Shenzhen NiteRay Technology Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong / Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name NiteRay
Model Number NR6005
Output Type AC
Connection Plug In

Specifications

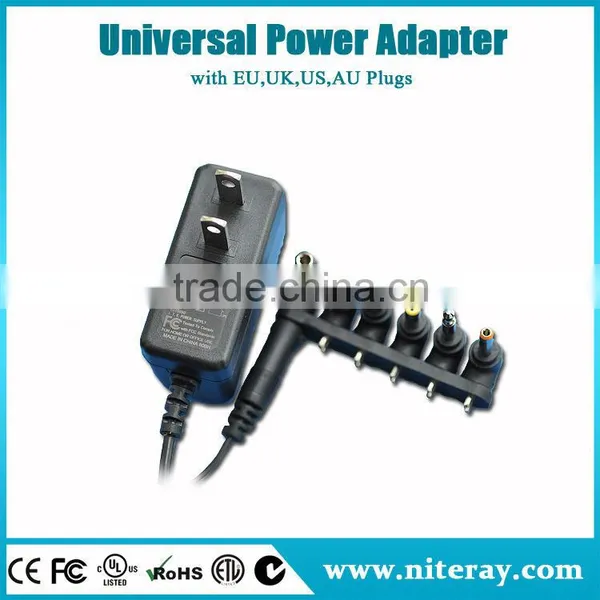

1) AC DC switching power adapter with plugs: UA, EU, UK, AU
2) CE/RoHS/ UL/FCC/C-Tick/SAA/BEAB/GS
3) Slim and compact design

7 5v 1a ac dc adapter 9v 1.5a / canon ac adapter k30290
High Voltage Power Supply Adapter



 PRODUCT HIGHLIGHT
1. Complete, inexpensive, self-contained
2. Regulated power source
3. Super power supply, fixed frequency control circuit guarantees Stable, long-lasting output required by any mobile Eectronics, such as mobile phones, PDA, Digital camera, CDMA Digital phones, Walkie- talkie, tester machine, HUB, Modem, Scanner, Printer and much more
4. Extra safe design, all with their respective
5. Safety approvals
6. Ultra low no-load /standby power consumption, meeting EC 2005 green power requirements
7. Light, sleek, and compact design
8. On-line LED power indicator
9. High efficiency circuitry that generates little heat B urn-in EMI filter

 PROTECTION
Short circuit protection
Over voltage protection
Over current protection
Thermal shutdown capability

 RELIABILITY
Burn-in: 100% full load, 40 ± 5° C, 4Hrs min
Leakage Current: 0.25mA max. At 254Vac
Withstanding Voltage: (between primary & secondary) 3000Vac 1 minute 10mA max
MTBF: Meet MIL-HDBK-217F over 50K hours, full load, 25 ° C
SAFETY APPROVALS:
UL60950 3 rd edition CAN/CSA C22.2 NO. 60950
EN60950: 2000
CE(Low Voltage Directive)
AS/NZS 60950: 2000
PSE IEC60950
GB4943-2001
EMISSIONS:
FCC Part15 class B
EN55022 class B
AS/NZS3548, AS/NZS4251.1 class B
VCCI class B
CNS13438 class B
GB9254-1998/GB17625.1-2003
CISPR22 class B

 SAFETY APPROVALS
UL1310
EN60335
CE

 IMMUNITY
EN55024/A1: 2001
Electrostatic discharge: 61000-4-2
Radiated electromagnetic fields: 61000-4-3
Fast transients(burst): 61000-4-4
Surge transients: 61000-4-5
Conducted disturbance: 61000-4-6
Voltage dips, interruptions&variations: 61000-4-11

INPUT CONDITION DC OUTPUT  VOLTAGE DC OUTPUT  CURRENT OUTPUT VOLTAGE  PRECISION RIPPLE  &  NOISES REGULATION MAXIMAL OUTPUT  POWER
LINE LOAD
Input voltage: 90-264VacFrepuency: 47-63Hz Inputcurrent: 0.6A 1 3.0-4.0V 0.1-4.0A 6% 100 mV ± 1% ± 5% 16W
2 4.1-6.0V 0.08-4.0A 6% 100 mV ± 1% ± 5% 24W
3 6.1-6.9V 0.07-4.1A 6% 100 mV ± 1% ± 5% 25W
4 7.0-8.0V 0.06-3.57A 5% 100 mV ± 1% ± 5% 25W
5 8.1-9.0V 0.055-3.09A 5% 100 mV ± 1% ± 5% 25W
6 9.1-10.0V 0.05-2.75A 5% 100 mV ± 1% ± 5% 25W
7 11.1-11.9V 0.04-2.25A 5% 100 mV ± 1% ± 5% 25W
8 12.0-17.9V 0.04-2.5A 5% 100 mV ± 1% ± 5% 30W
9 18.2-22.0V 0.035-1.67A 5% 100 mV ± 1% ± 5% 30W
10 22.1-30.0V 0.03-1.36A 5% 100 mV ± 1% ± 5% 30W
11 30.5-31.0V 0.025-0.98A 5% 150 mV ± 1% ± 5% 30W
12 31.5-48.0V 0.02-0.95A 5% 150 mV ± 1% ± 5% 30W



Description Symbol Min Typ Max Units Comment
Input
Voltage V  IN 90 120/240 264 V AC 2 Wire no Protective Ground
Frequency F  LINE 47 50/60 63 Hz
No-load Input Power(230VAC)       0.5 W
Efficiency η   75   %
Inrush Current(240Vac) I   40   A Cold 25 o C
Environmental
Operating Temperature T 0 / 40 o C Free convection, Sea level
Non-operating temperature T -20 / 80 o C Free convection, Sea level
Operating humidity T 10 / 90 %RH Non condensing
Non-operating humidity T 10 / 90 %RH Non condensing
