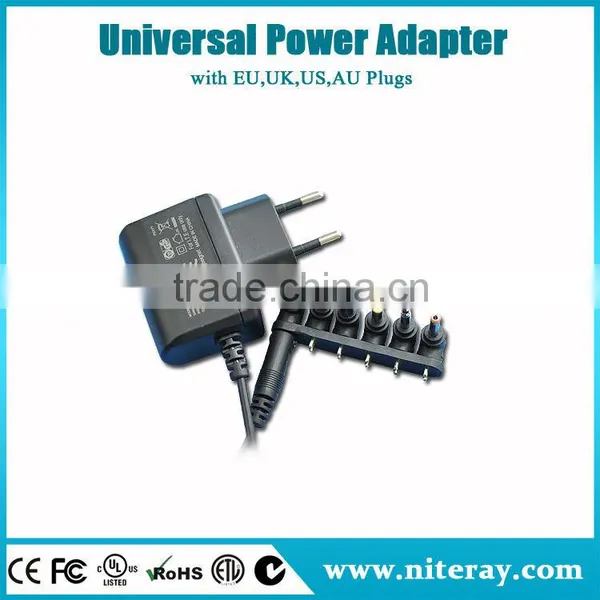

auto power off switches ac 220v to dc 12v adapter 18v 500ma ac/dc adapter

Specifications

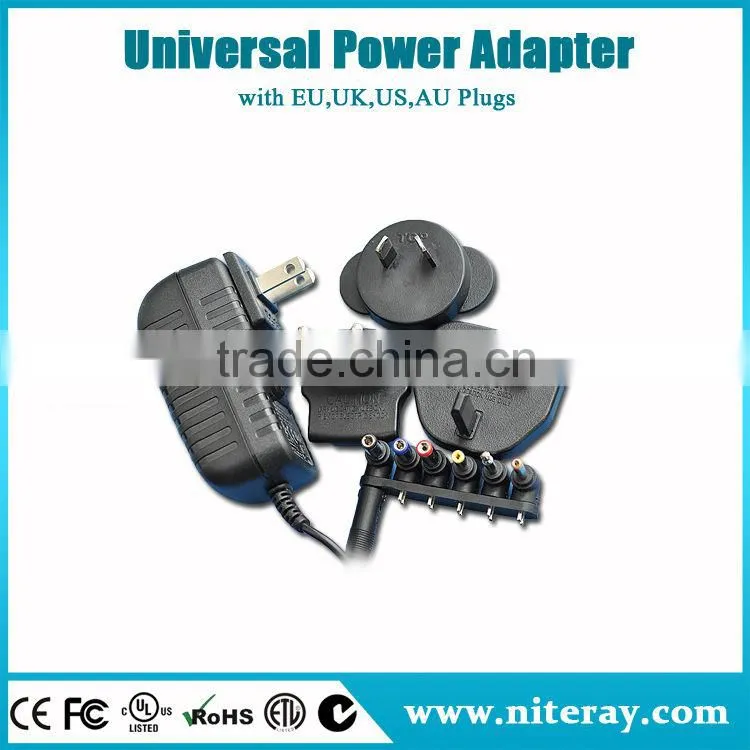

1) AC DC switching power adapter with plugs: UA, EU, UK, AU
2) CE/RoHS/ UL/FCC/C-Tick/SAA/BEAB/GS
3) Slim and compact design



 PRODUCT HIGHLIGHT
1. Complete, inexpensive, self-contained
2. Regulated power source
3. Super power supply, fixed frequency control circuit guarantees Stable, long-lasting output required by any mobile Eectronics, such as mobile phones, PDA, Digital camera, CDMA Digital phones, Walkie- talkie, tester machine, HUB, Modem, Scanner, Printer and much more
4. Extra safe design, all with their respective
5. Safety approvals
6. Ultra low no-load /standby power consumption, meeting EC 2005 green power requirements
7. Light, sleek, and compact design
8. On-line LED power indicator
9. High efficiency circuitry that generates little heat B urn-in EMI filter

 PROTECTION
Short circuit protection
Over voltage protection
Over current protection
Thermal shutdown capability

 RELIABILITY
Burn-in: 100% full load, 40 ± 5° C, 4Hrs min
Leakage Current: 0.25mA max. At 254Vac
Withstanding Voltage: (between primary & secondary) 3000Vac 1 minute 10mA max
MTBF: Meet MIL-HDBK-217F over 50K hours, full load, 25 ° C
SAFETY APPROVALS:
UL60950 3 rd edition CAN/CSA C22.2 NO. 60950
EN60950: 2000
CE(Low Voltage Directive)
AS/NZS 60950: 2000
PSE IEC60950
GB4943-2001
EMISSIONS:
FCC Part15 class B
EN55022 class B
AS/NZS3548, AS/NZS4251.1 class B
VCCI class B
CNS13438 class B
GB9254-1998/GB17625.1-2003
CISPR22 class B

 SAFETY APPROVALS
UL1310
EN60335
CE

 IMMUNITY
EN55024/A1: 2001
Electrostatic discharge: 61000-4-2
Radiated electromagnetic fields: 61000-4-3
Fast transients(burst): 61000-4-4
Surge transients: 61000-4-5
Conducted disturbance: 61000-4-6
Voltage dips, interruptions&variations: 61000-4-11

INPUT CONDITION		DC OUTPUT  VOLTAGE	DC OUTPUT  CURRENT	OUTPUT VOLTAGE  PRECISION	RIPPLE  &  NOISES	REGULATION		MAXIMAL OUTPUT  POWER
						LINE	LOAD
Input voltage: 90-264VacFrepuency: 47-63Hz Inputcurrent: 0.6A	1	3.0-4.0V	0.1-4.0A	6%	100 mV	± 1%	± 5%	16W
	2	4.1-6.0V	0.08-4.0A	6%	100 mV	± 1%	± 5%	24W
	3	6.1-6.9V	0.07-4.1A	6%	100 mV	± 1%	± 5%	25W
	4	7.0-8.0V	0.06-3.57A	5%	100 mV	± 1%	± 5%	25W
	5	8.1-9.0V	0.055-3.09A	5%	100 mV	± 1%	± 5%	25W
	6	9.1-10.0V	0.05-2.75A	5%	100 mV	± 1%	± 5%	25W
	7	11.1-11.9V	0.04-2.25A	5%	100 mV	± 1%	± 5%	25W
	8	12.0-17.9V	0.04-2.5A	5%	100 mV	± 1%	± 5%	30W
	9	18.2-22.0V	0.035-1.67A	5%	100 mV	± 1%	± 5%	30W
	10	22.1-30.0V	0.03-1.36A	5%	100 mV	± 1%	± 5%	30W
	11	30.5-31.0V	0.025-0.98A	5%	150 mV	± 1%	± 5%	30W
	12	31.5-48.0V	0.02-0.95A	5%	150 mV	± 1%	± 5%	30W



Description	Symbol	Min	Typ	Max	Units	Comment
Input
Voltage	V  IN	90	120/240	264	V AC	2 Wire no Protective Ground
Frequency	F  LINE	47	50/60	63	Hz
No-load Input Power(230VAC)				0.5	W
Efficiency	η		75		%
Inrush Current(240Vac)	I		40		A	Cold 25 o C
Environmental
Operating Temperature	T	0	/	40	o C	Free convection, Sea level
Non-operating temperature	T	-20	/	80	o C	Free convection, Sea level
Operating humidity	T	10	/	90	%RH	Non condensing
Non-operating humidity	T	10	/	90	%RH	Non condensing
