plastic magnetic sheeting
- 1000 Roll / Rolls per Month
- Shanghai or Ningbo
- T/T
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | Winchoice | Model Number: | WIN006-1 |
| Type: | Permanent | Composite: | Plastic Magnet | Shape: | Other, roll |
| Application: | Industrial Magnet |
Packaging Details
Single roll wrapped up with plastic film in a carton; 25 cartons put into a pallet.
Product Description
Specifications

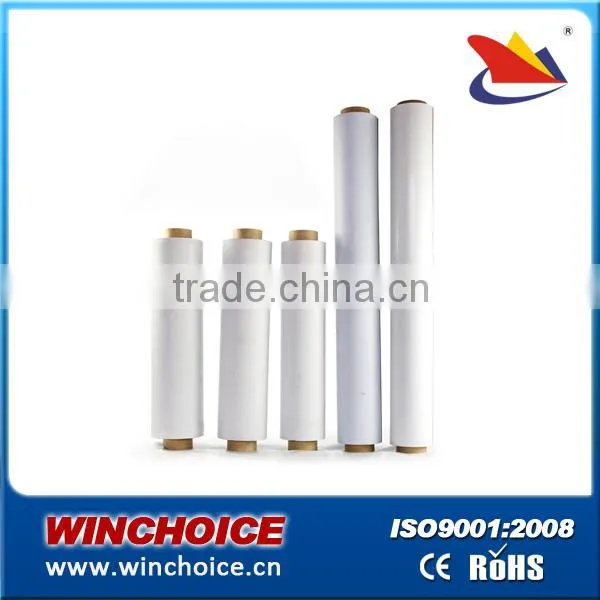

plastic magnet, isotropic rubber magnet sheeting, 900mm wide, 20m long, 0.9mm thick, with white gloss PVC1.Material: isotropic rubber magnet, white PVC sheet, UV oil
2.Magnetization Pattern: one-side. Multipole; magnetic gap: 2mm
3. Dimension:
Dimension can be customized:
•min thickness:0.3mm
•max width:1200mm
•roll length: according to your requirement
4.Surface Treatment:
•magnetized surface coated with UV oil
•unmagnetized surface laminated with 0.1mm white PVC sheet
•surface treatment also can be customized:
laminated with color PVC, four color printed PVC, self-adhesives,
or directly screen printing on magnet sheet and so on.
5. Our rubber magnet passed RoHS for SGs test.
Magnet Characteristics | BR |
| Hcb |
| Hcj |
| (BH)max |
| Density |
WINCHOICE GRADE | mT | Gs | kA/m | Oe | kA/m | Oe | kJ/m³ | MGOe | g/cm³ |
YN10 | >230 | >2300 | >159 | >2000 | >207 | >2600 | 7.5-9.5 | 0.94-1.12 | 3.5-3.8 |
YN12 | >245 | >2300 | >169 | >2120 | >247 | >3100 | 9.5-11.5 | 1.12-1.44 | 3.5-3.8 |
YN14 | >265 | >2650 | >191 | >2400 | >263 | >3300 | 11.5-13.5 | 1.44-1.7 | 3.5-3.8 |
YN16 | >275 | >2750 | >175 | >2250 | >263 | >3300 | 12.5-14.0 | 1.6-1.8 | 3.7-3.8 |
YN20 | >280 | >2800 | >199 | >2500 | >358 | >4500 | 16-22.4 | 2.0-2.8 | 3.7-5.0 |
YN25 | >350 | >3500 | >239 | >3000 | >478 | >6000 | 22.4-28 | 2.8-3.5 | 3.4-5.0 |
YN35 | >400 | >4000 | >263 | >3300 | >557 | >7000 | 28-36 | 3.5-4.5 | 3.7-5.0 |
YN40 | >460 | >4600 | >294 | >3700 | >637 | >8000 | 36-42.4 | 4.5-5.3 | 3.7-5.0 |
YN45 | >500 | >5000 | >311 | >3900 | >677 | >8500 | 42.4-49.6 | 5.3-6.2 | 3.7-5.0 |
