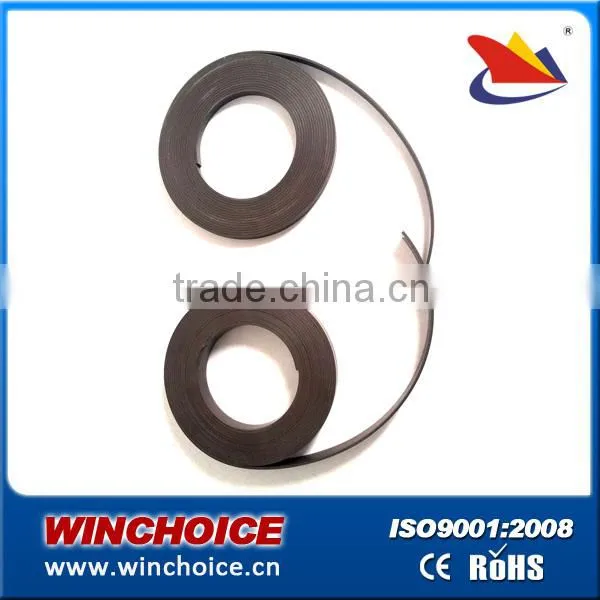

Flexible Magnet Door Strip
Specifications
extruded flexible plastic magnet strip, 25*1.5mm, applied for fridge door seal, educational field, etc.
1.Material: isotropic rubber magnet, white PVC sheet, UV oil
2.Magnetization Pattern: one-side. Multipole; magnetic gap: 2mm
3. Dimension:
Dimension can be customized:
•min thickness:0.3mm
•max width:1200mm
•roll length: according to your requirement
4.Surface Treatment:
•magnetized surface coated with UV oil
•unmagnetized surface laminated with 0.1mm white PVC sheet
•surface treatment also can be customized:
•laminated with color PVC, four color printed PVC, self-adhesives,
•or directly screen printing on magnet sheet and so on.
5. Our rubber magnet passed RoHS for SGs test.
Magnet Characteristics |
BR |
|
Hcb |
|
Hcj |
|
(BH)max |
|
Density |
WINCHOICE GRADE |
mT |
Gs |
kA/m |
Oe |
kA/m |
Oe |
kJ/m³ |
MGOe |
g/cm³ |
YN10 |
>230 |
>2300 |
>159 |
>2000 |
>207 |
>2600 |
7.5-9.5 |
0.94-1.12 |
3.5-3.8 |
YN12 |
>245 |
>2300 |
>169 |
>2120 |
>247 |
>3100 |
9.5-11.5 |
1.12-1.44 |
3.5-3.8 |
YN14 |
>265 |
>2650 |
>191 |
>2400 |
>263 |
>3300 |
11.5-13.5 |
1.44-1.7 |
3.5-3.8 |
YN16 |
>275 |
>2750 |
>175 |
>2250 |
>263 |
>3300 |
12.5-14.0 |
1.6-1.8 |
3.7-3.8 |
YN20 |
>280 |
>2800 |
>199 |
>2500 |
>358 |
>4500 |
16-22.4 |
2.0-2.8 |
3.7-5.0 |
YN25 |
>350 |
>3500 |
>239 |
>3000 |
>478 |
>6000 |
22.4-28 |
2.8-3.5 |
3.4-5.0 |
YN35 |
>400 |
>4000 |
>263 |
>3300 |
>557 |
>7000 |
28-36 |
3.5-4.5 |
3.7-5.0 |
YN40 |
>460 |
>4600 |
>294 |
>3700 |
>637 |
>8000 |
36-42.4 |
4.5-5.3 |
3.7-5.0 |
YN45 |
>500 |
>5000 |
>311 |
>3900 |
>677 |
>8500 |
42.4-49.6 |
5.3-6.2 |
3.7-5.0 |
