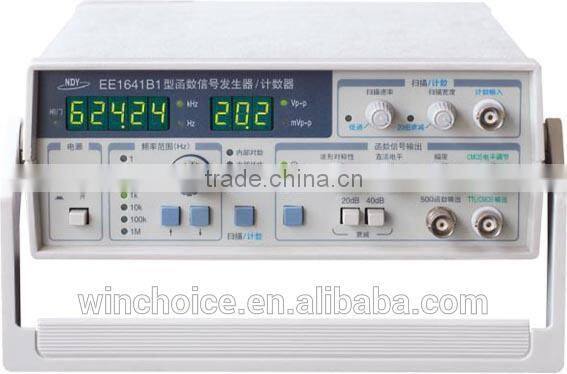

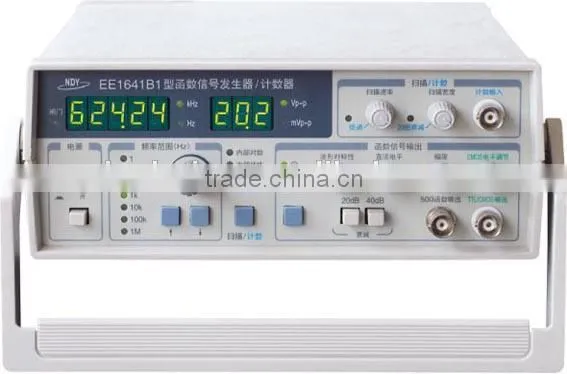

Help CenterSignal Function Generator
Related Products
Specifications
1) multi waveform: sine, triangle, square, ramp, pulas, TTL and COMS
Main Specifications:
1.Output frequency:0.2Hz~3/10/15MHz
2.Output amplitude:10Vp-p(50Ω) 20Vp-p(1MΩ)
3.Output waveform: 7 waveforms including sine, triangle, square etc.
4.Central level and duty cycle adjustable.
5.Square wave edge:≤30ns
6.Sine distortion:≤1%
7.Output impedance:50Ω(function),600Ω(TTL synchronous output)
8.TTL/CMOS output(3V~15V level adjustable)
9.Output signal attenuation:0dB/20dB/40dB/(20+40)dB
10.Frequency range of the frequency counter:0.2Hz~20MHz
11.Size and weight:240×220×80(mm)3, 2kg
Main Features:
1.LSI circuitry
2.Displaying output amplitude (3 LEDs) and output frequency (max. 5 LEDs) simultaneously
3.Used as a 20MHz frequency counter(equal-accuracy measurement)
4.Multiple output method (fixed frequency, internal/external sweep frequency, single pulse)
5.Self-provided TTL/CMOS level adjustable output
6.Overall output protection, unique flashing alarm at wrong connection
7.SMT technology, portable structure design
8.DC level adjustable
