Transformer Vacuum Drying Equipment1. Air drier for for transformer
2. Fast delivery
3. OEM service offered
4. ISO 9001
Factory Direct Sale Transformer Vacuum Drying Equipment with CE
GF Series Transformer Vacuum Drying Equipment with CE is suitable for supplying dry air for transformer maintenance. Dry air can keep good insulation of transformer, reactor and other power facilities. Meanwhile, operators will not be short of oxygen to maintain inside.
It is safer, cheaper, more reliable & convenient than using nitrogen.
With GF Series Transformer Vacuum Drying Equipment, youcan save time for maintenance and get good efficiency.
Transformer Vacuum Drying Equipment Parameter
Item |
Parameter |
Unit |
GF-60 |
GF-100 |
GF-200 |
GF-360 |
GF-480 |
|||||
Technical Parameter |
Flow |
M³/h |
60 |
100 |
200 |
360 |
480 |
|||||
Working Pressure |
Mpa |
0.6~0.8 |
||||||||||
Pressure Drop |
Mpa |
0.05 |
||||||||||
Noise |
dB(A) |
70 |
||||||||||
Working Power |
KW |
380V-50Hz 3 Phase 4 Wire |
||||||||||
Total Power |
KW |
17 |
17 |
25 |
48 |
58 |
||||||
|
Size |
Length |
cm |
230 |
230 |
230 |
320 |
320 |
|||||
Width |
cm |
170 |
170 |
170 |
225 |
225 |
||||||
Height |
cm |
235 |
235 |
235 |
240 |
240 |
||||||
Diameter |
DN |
40/50 |
40/50 |
40/50 |
40/50 |
40/50 |
||||||
Weight |
Kg |
1200 |
1450 |
1600 |
1900 |
2200 |
||||||
After Treatment Index |
Discharge Pressure |
Mpa |
0.02~0.03 |
|||||||||
Dew Point |
°C |
-50°C ~ -70°C |
||||||||||
Particle |
um |
0.01 |
||||||||||
Oil content in air outlet |
ppm |
0.01 |
||||||||||

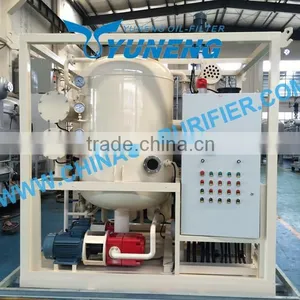

picturs of GF Series Transformer Vacuum Drying Equipment :
photos of company and workshop:
packages:
Yuneng products list:
1. Insulation Oil filtration machine:
ZJA Ultra-high Transformer / Insulation Oil filtration machine (1000KV, ±800KV, 750KV, ±660KV project) (2 stage vacuum)
ZJA High-vacuum Transformer / Insulation Oil filtration machine (110KV-500KV project)) (2 stage vacuum)
ZJB Transformer / Insulation Oil filtration machine (≤110KV) (one stage vacuum)
ZJ Vacuum Pumping machine (extract vacuum, dry transformer)
GF Dry Air Generator (produce dry air for operators to maintain transformer, reactors…).
JZ OLTC (on-load tap changer) online Oil filtration machine
Quantitative oil injection machine (customized product)
2. Turbine Oil filtration machine:
JT coalescing dehydration oil filtration machine (dehydration by special filters)
DYJC online turbine oil filtration machine (dehydration by special filters and vacuum system)
ZJC-T vacuum oil filtration machine for turbine oil (dehydration by vacuum system)
3. Lubricating Oil filtration machine:
ZJC-R vacuum Oil filtration machine for lubricating oil (machinery oil, hydraulic oil, compressor oil, coolant oil, cutting oil..)
ZJC-M Oil filtration machine for OCS. (oil with high viscosity 100-320cst at 40℃)
4. Other kinds of oil filtration machine:
KYJ fire-resistance oil filtration machine (EHC oil)
LY plate-frame pressure oil filtration machine (simple, paper filtration)
YL mobile oil filtration machine (simple, cheap)
5. Waste oil regeneration machine (by chemicals or by high temperature distillation)
YNZSY used oil filtration machine (by chemicals)
YNZSY-LTY used tire oil filtration machine (by chemicals)
Waste oil distillation machine
6. Oil tester/ analyzer:
Dielectric oil breakdown strength tester
Water content tester
Inline Digital Flow Meter and Totalizer
Viscosity analyzer
Flash point analyzer (close cup)
Flash point analyzer (open cup)
Interfacial tension analyzer
Gas chromatograph
