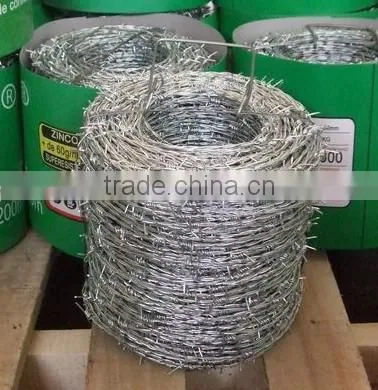

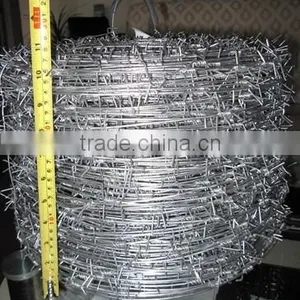

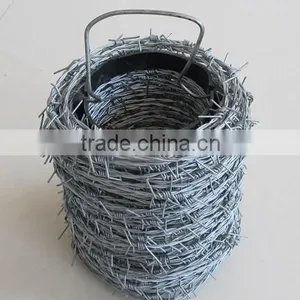

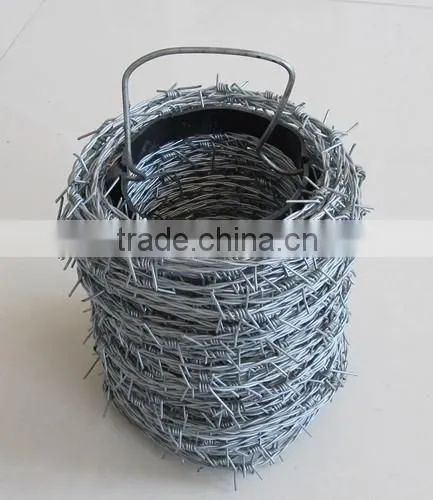

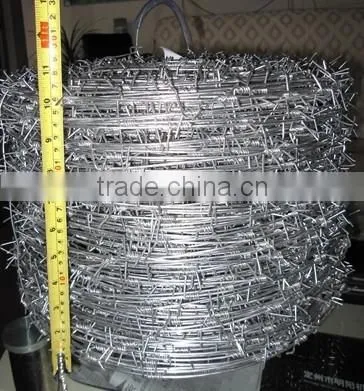

Galvanized Barbed wire
Galvanized Barbed Iron Wire has 2 strands and 4 points. Barbs' distance can be 3-6 inches.
Galvanized Barbed Wire is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.
PVC Coated Barbed Wire(plastic coated barbed tape)
Core wire of PVC Coated Barbed Wire can be galvanized iron wire or black annealed iron wire.
Colors: green, blue, yellow, orange, gray, is available with PVC Coated Barbed Iron Wire produced by us.
Tensile strength of Standard PVC Coated Barbed Iron Wire is 30-45 kgs./mm2.
Packing: 5—50kg/coil, lined with P.V.C strips, and then on pallet, or nude packing. Other packing can be available as your request.
Barbed Wire Uses: Barbed wire can be widely used as accessories for woven wires fences to form a fencing system or security system. It is called barbed wire fences or barbed obstacles when it is used simply by itself along the wall or the building to give a kind of protection. Barbed wire is also written as barbed tape as it is always used in a line to form a kind of tape.
Barbed wire material: high quality low carbon steel wire, stainless steel wire, medium carbon steel wire, PVC wire with the colors of blue, green and yellow, etc.
Type |
Wire gauge (BWG) |
Barb distance (cm) |
Barb length (cm) |
Tensile strength (N/MM2) |
||
|
General Barbed Wire
|
Electronic galvanized and hot dip zinc plating barbed wire |
10x12 |
7.5-15 |
1.5-3 |
400-500 |
|
12x12 | ||||||
12x14 | ||||||
14x14 | ||||||
14x16 | ||||||
16x16 | ||||||
16x18 | ||||||
PVC or PE coated barbed wire |
Before coating |
After coating |
7.5-15 |
1.5-3 |
400-500 |
|
1.0mm-3.5mm |
1.4mm-4.0mm |
|||||
BWG11-20 |
BWG 8-17 |
|||||
BWG11-20 |
BWG8-17 |
|||||
PVC/PE coating thickness:0.4mm-0.6mm,different colors or length are available. | ||||||
|
Double Twisted barbed wire |
Electronic galvanized Hot dip galvanized Stainless Steel wire, Medium carbon steel wire |
12x14 |
10.2-12.4 |
1.5-3 |
400-500
100-1200 |
|
14x14 | ||||||
14x15 | ||||||
15x15 | ||||||
16x16 | ||||||
15x17 | ||||||
16x17 | ||||||
