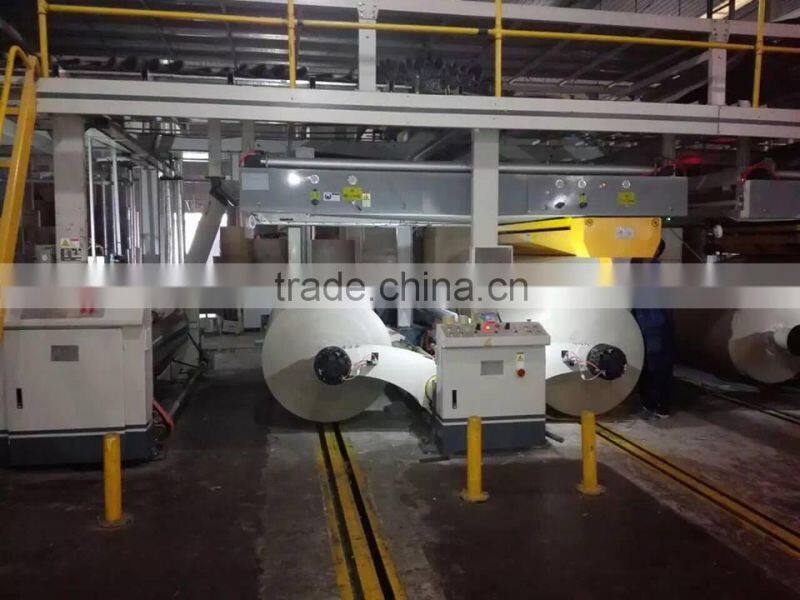

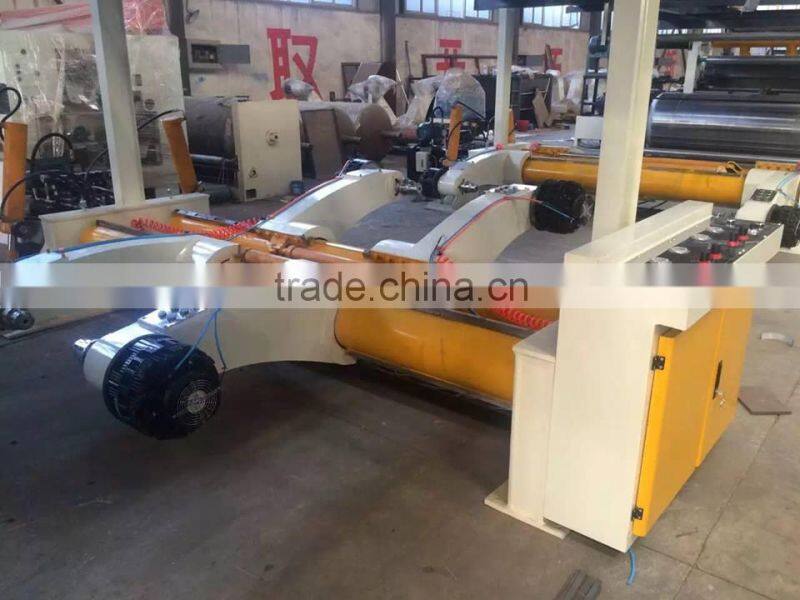

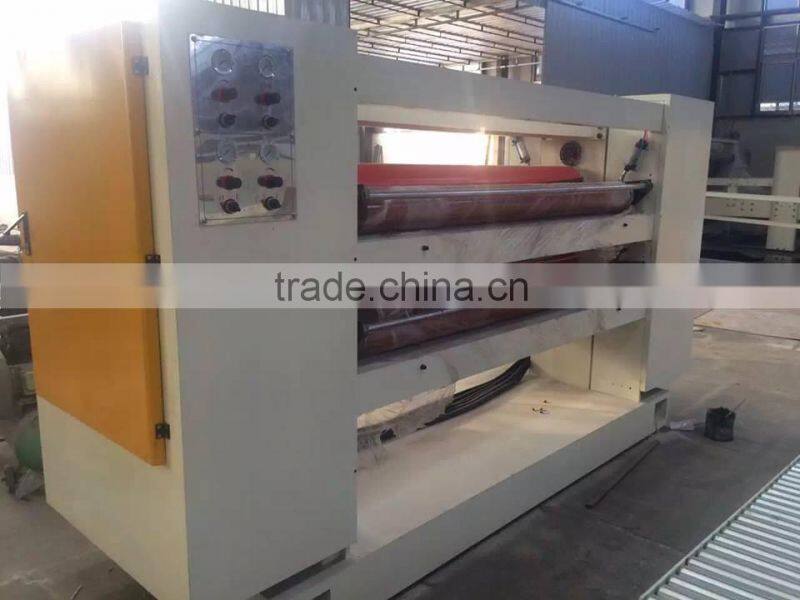

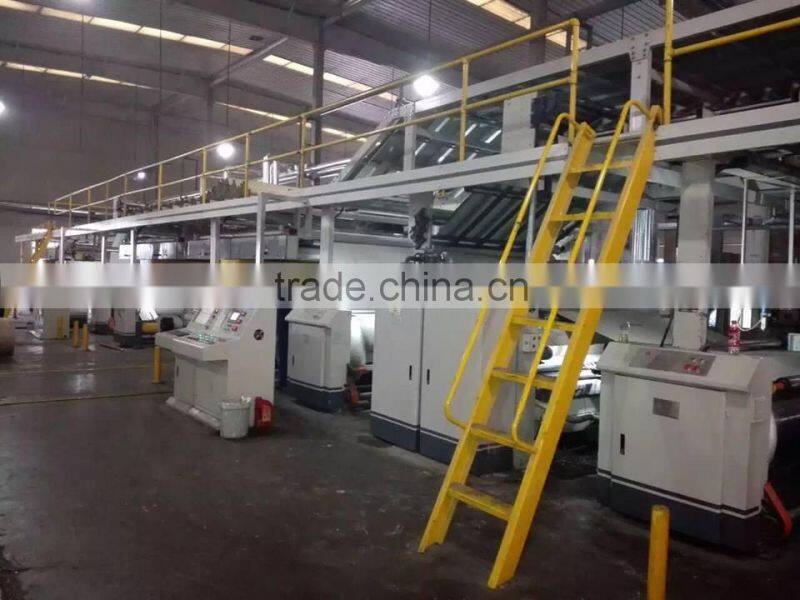

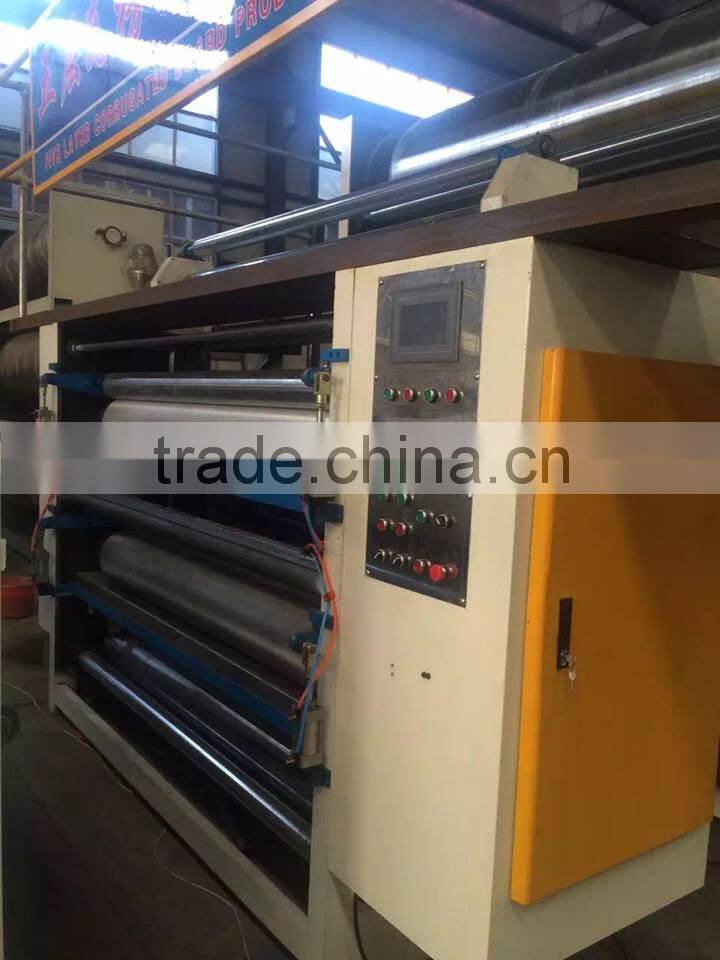

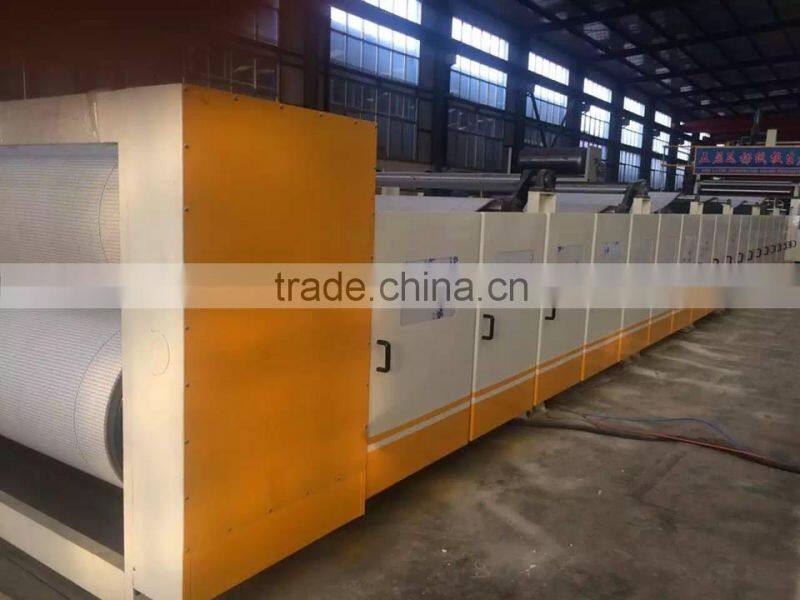

chinese manufacturer 5ply corrugated paperboards production line
corrugated board production line:
main technical parameters and requirements in production line
type:WJ100-2000-I type 5 layer corrugated paperboard production line:
The maximum production width of the corrugated cardboard:2000mm
Design speed:100m/min
Economic speed:60-80m/min
note:Production line speed test paper should meet the following requirements:(the surface temperature of the equipment is not less than 172℃)
Paper rating of not less than B grade Paper moisture content of about:11%±2%
top paper:100—250g/m2 core paper:100--250g/m2
corrugated paper:100—200g/m2
Flute-type combination:A ,C, B, E(as customers’ requirement)
2.Steam the necessary requirements:
amount of steam 2500—3000Kg/Hr the highest pressure:1.2Mpa
common pressure:0.8-1.1Mpa
6,power supply:380V 50Hz Three-phase four-wire system
7,equipment installed total power:about120KW
The actual power consumption:about 60KW(full speed)

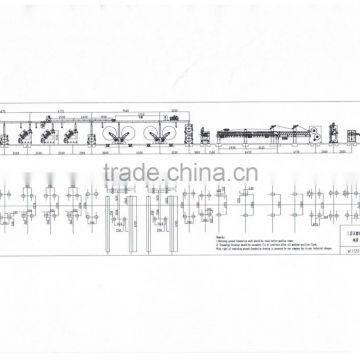

8,equipment covers:about46m×10m×5m(Specific length of foundation Figure prevail)
9,Equipment out of paper orientation:According to the user to determine the transmission plant set left or right position
10,Equipment applicability,Available in A, B, C class domestic or imported paper Paper
Customer-owned section
1,steam heating system:proposal with 2000Kg / Hr of a steam boiler pressure:1.25Mpa steam pipeline.
2,air compressed machine,air pipeline,glue conveying pipe.
3,power supply,wires connected to the operation panel and line pipe.
4,water sources,water pipelines,buckets and so on.
5,Water, electricity, gas flush mounting civil foundation.
6,Test with the base paper,corn starch (potato),Industrial use caustic soda,borax and other material.
7,Oil equipment,lubricating oil,hydraulic oil,lubricating grease.
8,installation,commissioning of food, accommodation.And provide installers with the installation.
