Custom China Membrane Switch Keyboard Thin Film Switch
- 5000 Piece / Pieces per Month
- Dalian
- T/T L/C D/P D/A Credit Card PayPal
-
New 913A0123H01 oil level sensor, York screw compressor oil level control fault repair
-
Side press sinking board switch, game controller, light touch switch, handle button 3 * 4 * 3.5, side press smiling face switch
-
Original C&K genuine PTS647SK38SMTR2 LFS 4.5x4.5x3.8-250GF SMT switch
-
Original C&K genuine PTS645SK43SMTR92 LFS 6X6X4.3H 260GF SMT switch
-
Original C&K genuine PTS641TK25SMTR2LFS 6.2x6.2x2.5 five pin 250GF SMT switch
-
USB3.0 two-way switch usb converter
Product Details
Place of Origin: | Liaoning, China | Brand Name: | Geeton | Model Number: | GMS-304 |
Max. Current: | 100mA | Max. Voltage: | 35V(DC) |
Product Description
Specifications
Thin Film Switch1,Material;matte PET
2,Type:tactile
3,OEM & ODM
4,Certification:ISO9001:2008,ISO14001:2004&ROHS
Custom China Membrane Switch Keyboard Thin Film Switch

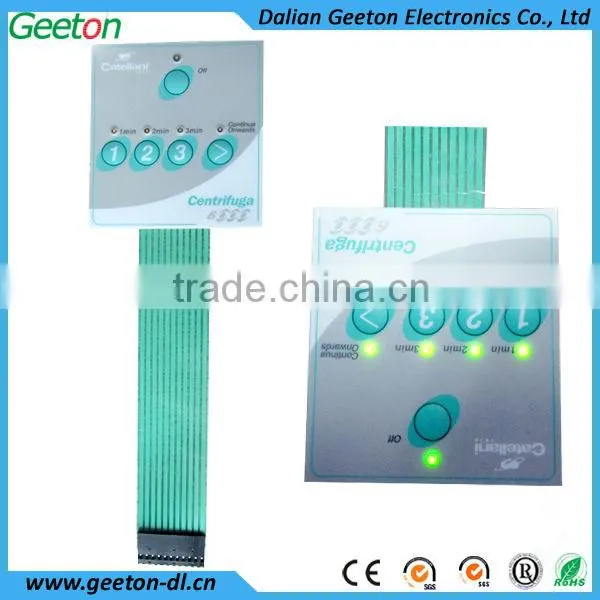

NO.1:Thin Film Switch picture
NO.2:Thin Film Switch Performance
Thin Film Switch Performance | |
Electrical Performance | |
Circuit Grade | 35V(DC),100mA,1 W |
Loop Resistance | 10Ω - 500Ω(According the trace length and materials to confirm) |
Insulation Resistance | >100MΩ 250V(DC) |
Dielectric Resistance | 250VRms(50 - 60Hz/1 min) |
Contact Chatter Time | ≤5ms |
Service Life | flat type≥5 million times |
tactile type:≥1 million times | |
Mechanical Properties | |
Operating Force | flat type 57-284g (2-10 Oz) |
tactile type 170-397g (6-14 Oz) | |
Switch Stroke | flat type 0.1 - 0.5mm |
tactile type 0.6 - 1.5mm | |
Environmental Parameters | |
Operating Temperature | -20°C - +80°C |
Storage Temperature | -40°C - +85°C |
Humidity | 40°C,90%-95%,240 hours |
NO.3:Thin Film Switch Advantages
Appearance | Beautiful, bright in color |
Design | Small size, light weight, thin thickness, various types of products can be designed according to customer requirements. |
Feature | Abrasion resistant, Tightness is good, moisture-proof, dust-proof, anti-oil, anti-corrosion and erosion of harmful gases proof, acid and alkali proof, quake proof. |
Quality | In-house 100% functionally tested. |
Life expectancy | High lifespan, different types of membrane switch is more than 1 million times. |
Operation | Easy to operate, intuitive, safe and reliable, Installation and connection convenience. |

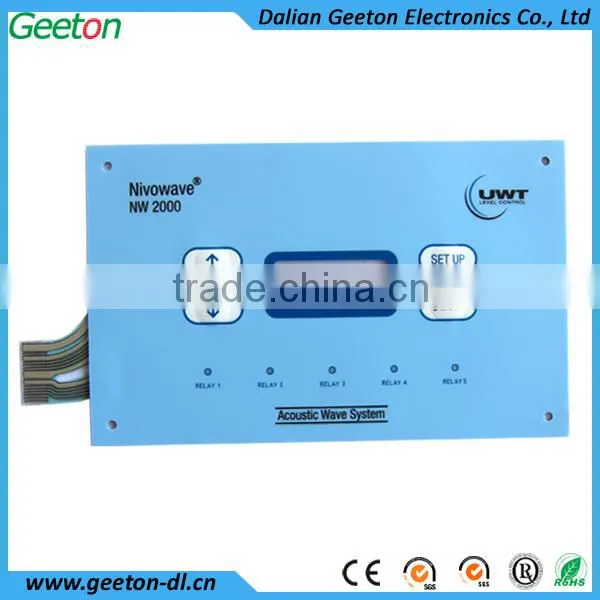

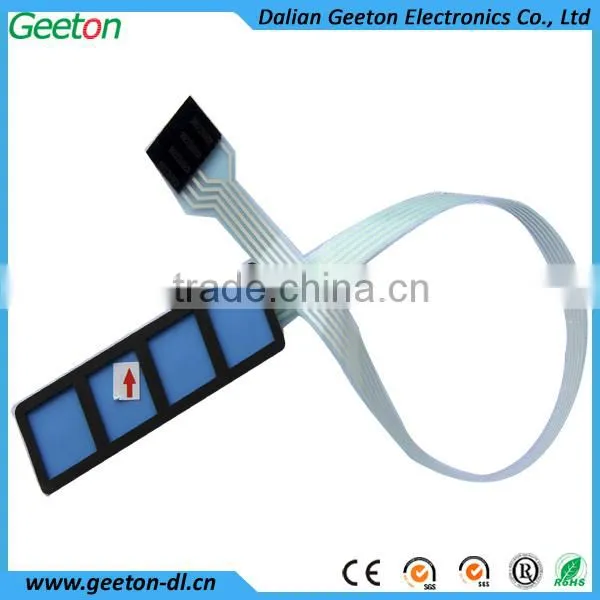

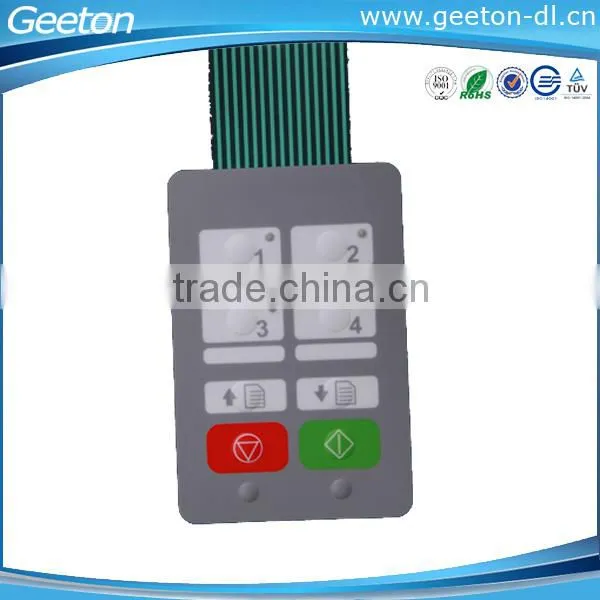

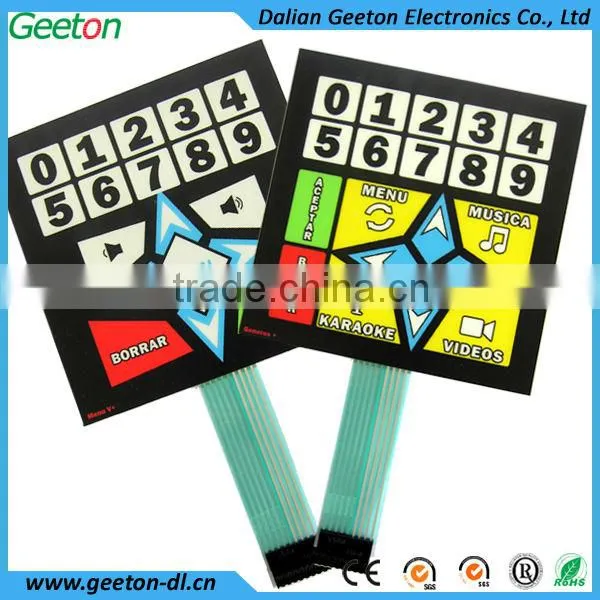

NO.4:The others Thin Film Switch pictures
NO5: The Film Switch Type
NO.6:Application & Recommend
No. 7: Flow Chart
No. 8: Company panorama & Customers visiting
NO.9:Why choose us !
1. Brief Company Introduction
lFounded in 2003, have 6000 m2 workshop area and 200 employees.
lMain products: membrane switch, graphic overlay, label, acrylic panel, sticker,FPC and 2D&3D autototive dials.
lApplication Fields: household electrical appliances, beautity & medical equipment, sports equipment, telecommunication, office automation, test instrument, children's toys, industrial meters and automobile instruments.
lCertification: ISO9001:2008, ISO14001:2009, TS16949:2009, raw material can meet RoHS standard.
lCooperative Clients
