Specifications
Electronic Switches Overlay1. Material: Autotex F150

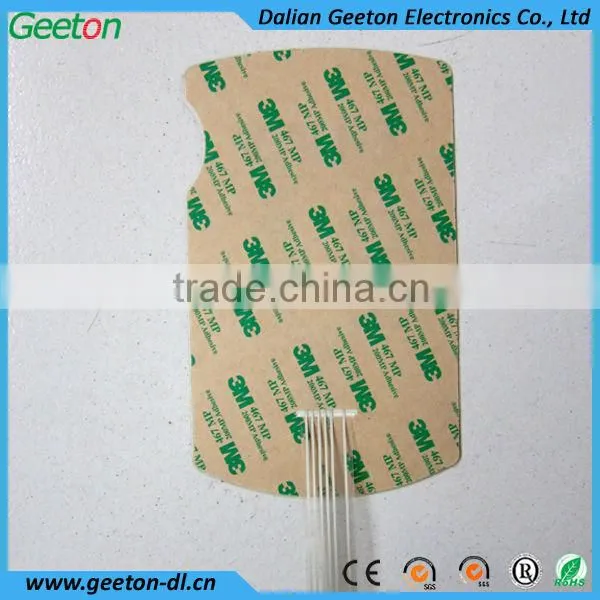

2. Rear Adhesive:3M467
3. OEM&ODM
4. ISO9001,ISO14001,TS15949
NO.1 LED Electronic Switches Overlay
Membrane Switch Performance | |
Electrical Performance | |
Circuit Grade |
35V(DC),100mA,1 W |
Loop Resistance |
10Ω - 500Ω(According the trace length and materials to confirm) |
Insulation Resistance |
>100MΩ 250V(DC) |
Dielectric Resistance |
250VRms(50 - 60Hz/1 min) |
Contact Chatter Time |
≤5ms |
Service Life |
flat type≥5 million times |
tactile type:≥1 million times | |
Mechanical Properties | |
Operating Force |
flat type 57-284g (2-10 Oz) |
tactile type 170-397g (6-14 Oz) | |
Switch Stroke |
flat type 0.1 - 0.5mm |
tactile type 0.6 - 1.5mm | |
Environmental Parameters | |
Operating Temperature |
-20°C - +80°C |
Storage Temperature |
-40°C - +85°C |
Humidity |
40°C,90%-95%,240 hours |

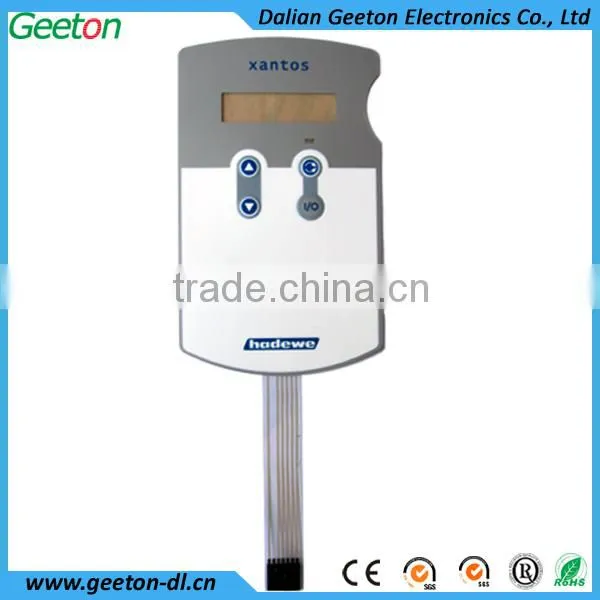

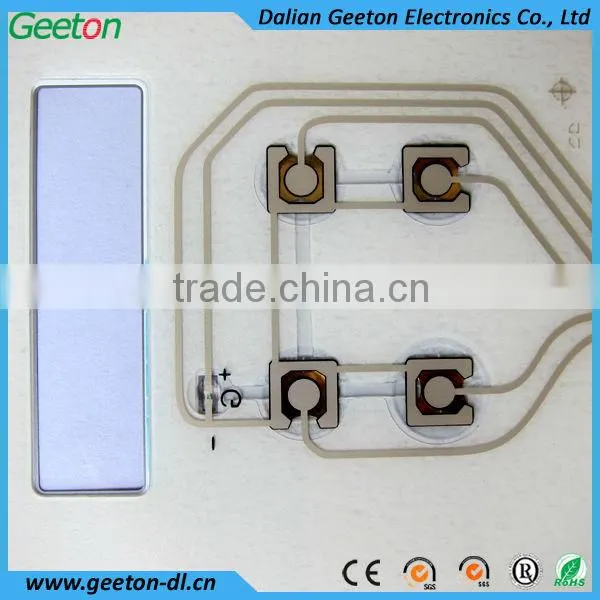

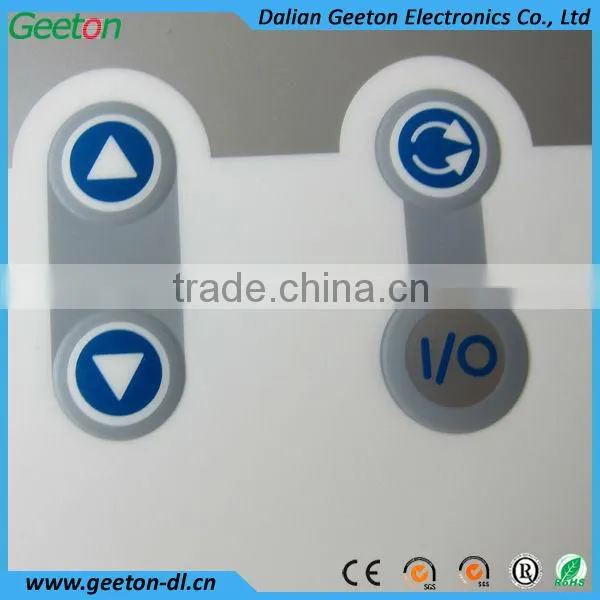

NO.2 Electronic Switches Overlay Pictures
NO.3 Certification
NO.4 Flow Chart
NO.5 Package
NO.6 Cooperative Clients & Customers Visiting
NO.7 Beleuchtete Tastatur Recommend
