Help CenterWaterproof One Button and LED Membrane Switch Manufacturer
Related Products
-
2015 New! Waterproof PET Membrane KeypadUS$ 1 - 3MOQ: 1 Piece -
LED Membrane Switches With 3M AdhesiveUS$ 0.5 - 5MOQ: 100 Pieces
-
Custom Waterproof LED Membrane Switch With Flexible CircuitUS$ 1.5 - 4MOQ: 1 Box
-
Waterproof One Key Membrane Switch With BacklightUS$ 1.5 - 3MOQ: 100 Boxes
-
Tactile 17 Keys Membrane Switch With 5 LEDs ManufacturerUS$ 1.5 - 4MOQ: 1 Box
Specifications
membrane Switcha material: Matt PET
b Butoon emboss+metal dome
c ROHS,ISO9001:2008,ISO14001
d ODM&OEM&Custom

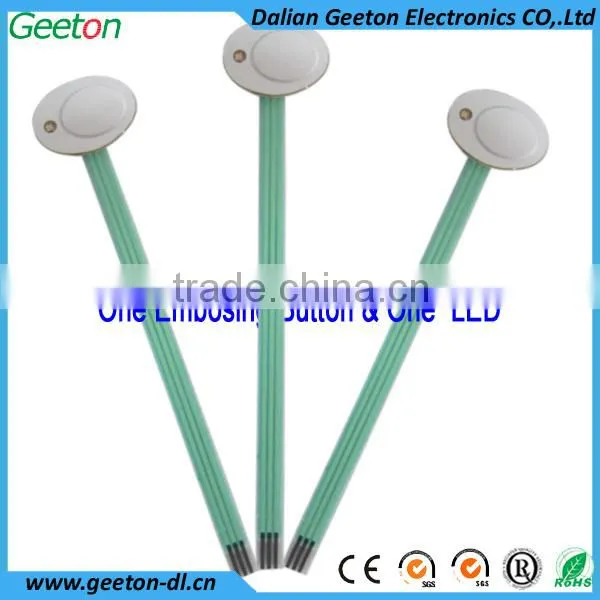

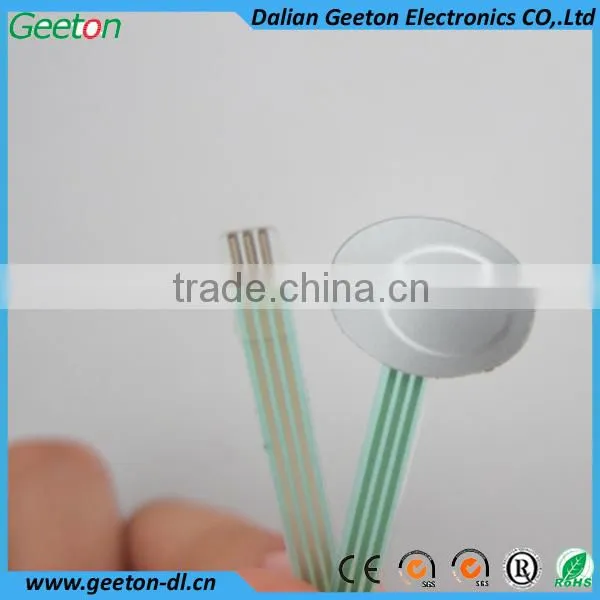

NO.1 Waterproof One Button and LED Membrane Switch Manufacturer
NO.2 Membrane keypad performance
Membrane Switch Performance | |
Electrical Performance | |
Circuit Grade |
35V(DC),100mA,1 W |
Loop Resistance |
10Ω - 500Ω(According the trace length and materials to confirm) |
Insulation Resistance |
>100MΩ 250V(DC) |
Dielectric Resistance |
250VRms(50 - 60Hz/1 min) |
Contact Chatter Time |
≤5ms |
Service Life |
flat type≥5 million times |
tactile type:≥1 million times | |
Mechanical Properties | |
Operating Force |
flat type 57-284g (2-10 Oz) |
tactile type 170-397g (6-14 Oz) | |
Switch Stroke |
flat type 0.1 - 0.5mm |
tactile type 0.6 - 1.5mm | |
Environmental Parameters | |
Operating Temperature |
-20°C - +80°C |
Storage Temperature |
-40°C - +85°C |
Humidity |
40°C,90%-95%,240 hours |

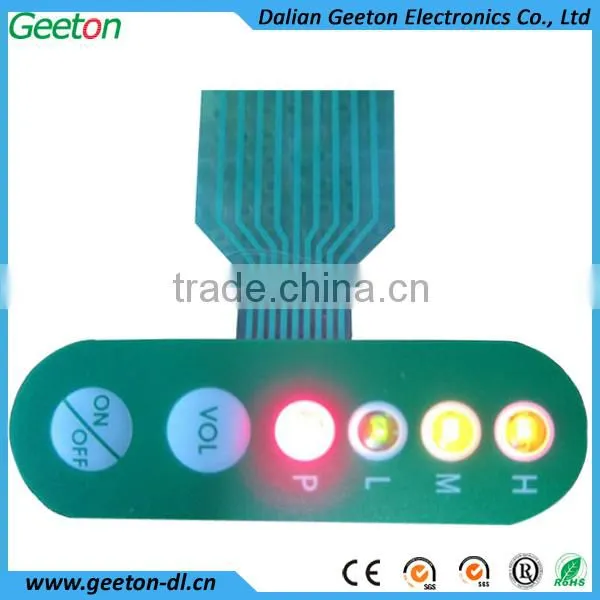

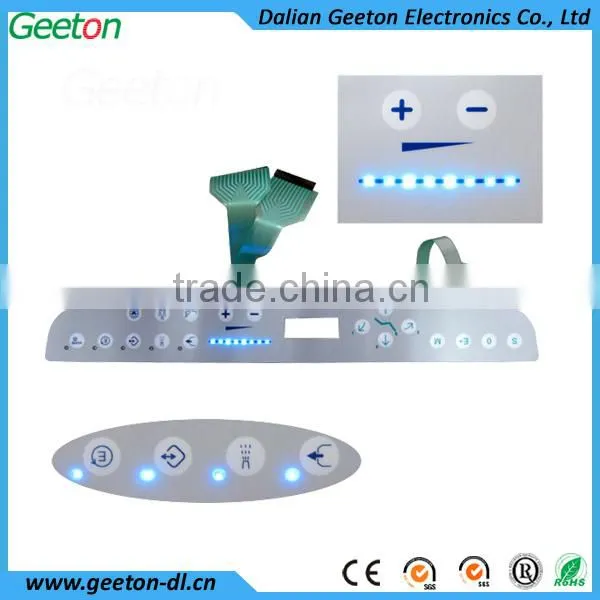

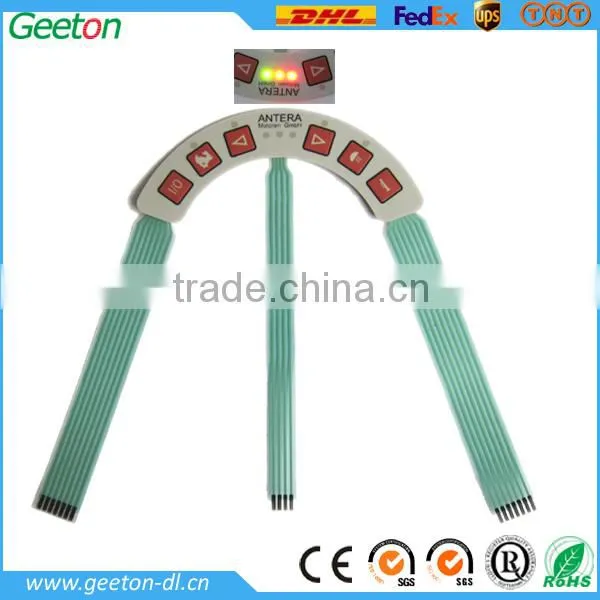

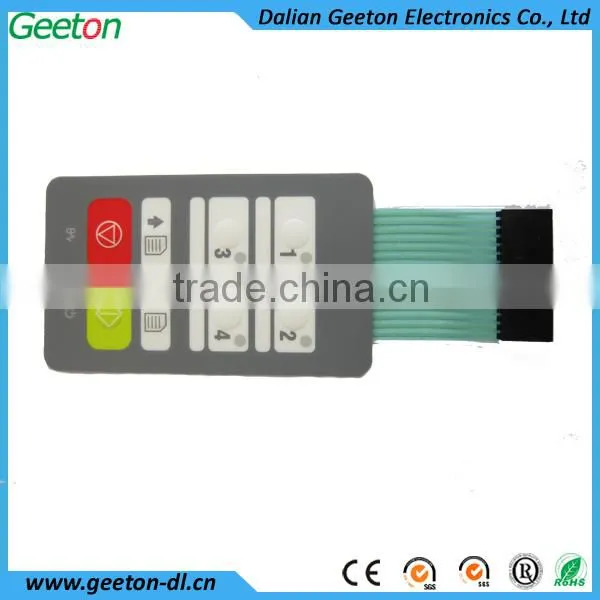

NO.3 Recommend Membrane Keypad
NO.4 Membrane Keypad Type
NO.5 membrane keypad Application
NO.6 Flow Chart
No.7 Why Choose US!
1. Brief Company Introduction
l Founded in 2003, have 6000 m2 workshop area and 200 employees.
l Main products: membrane switch, graphic overlay, label, acrylic panel, sticker,FPC and 2D&3D autototive dials.
l Application Fields: household electrical appliances, beautity & medical equipment, sports equipment, telecommunication, office automation, test instrument, children's toys, industrial meters and automobile instruments.
l Certification: ISO9001:2008, ISO14001:2009, TS16949:2009, raw material can meet RoHS standard.
l Cooperative Clients
Certification
