Specifications
Key Membrane Switch1. Manufacture
2. OEM&ODM
3. ISO9001,ISO14001. TS16949
4. OMRON, TOSHIBA, YAMAHA, SANYO, HAWK

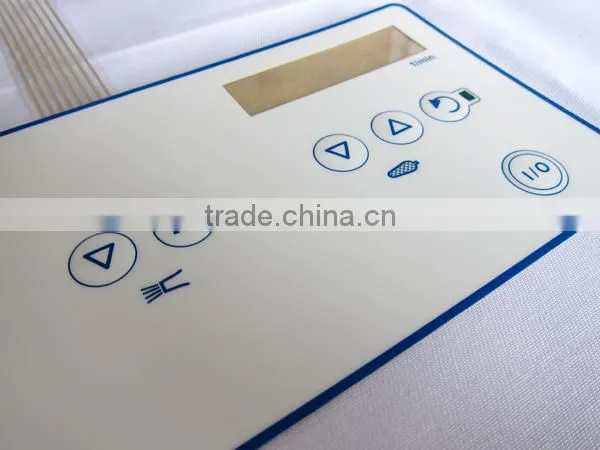

NO.1 Tactile Key Membrane Switch

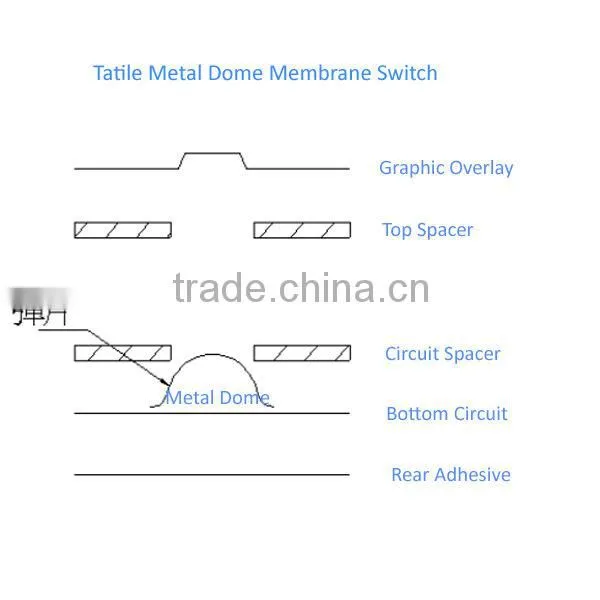

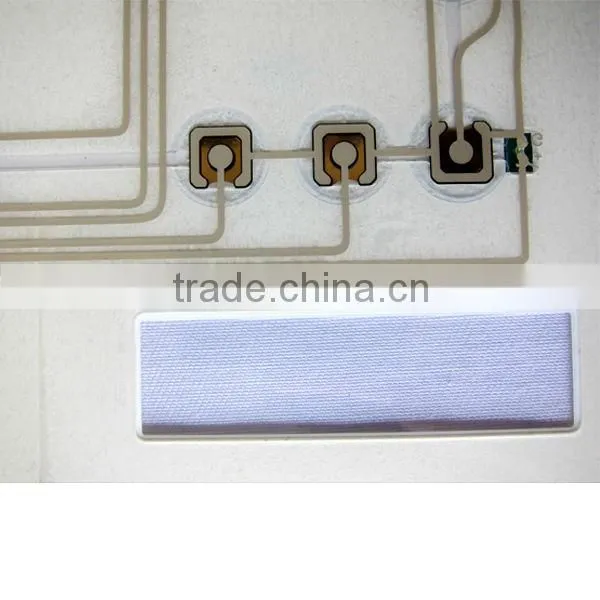

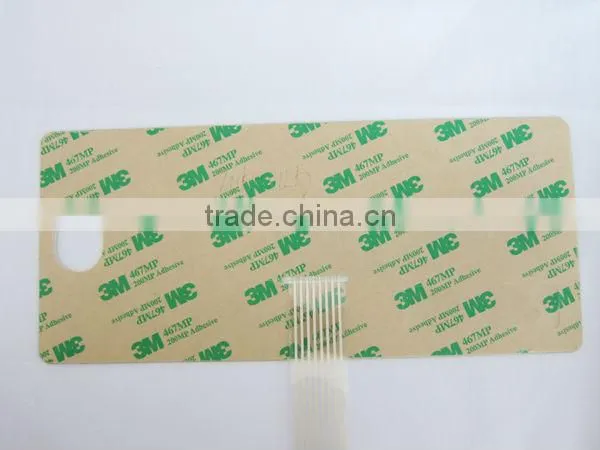

NO.2 Key Membrane Switch Structure
NO. 3 Key Membrane Switch Performance
Certification |
ISO9001:2008, ISO14001:2008& RoHS. |
Components: |
LED, metal domes, connector and circuit, all these can be designed and made according to customer requirements. |
Electronic characteristics | |
Circuit rating |
35V(DC),100mA,1 W |
Contact resistance |
10Ω - 500Ω(According the trace length and materials to confirm) |
Insulation resistance |
>100MΩ 250V(DC) |
Contact bounce |
≤5ms |
Dielectric withstand |
250VRms(50 - 60Hz/1 min) |
Life expectancy |
flat type≥5 million times, tactile type:≥1 million times |
Mechanical Properties | |
Operating pressure |
flat type 57-284g (2-10 Oz),tactile type 170-397g (6-14 Oz) |
Switch stroke |
flat type 0.1 - 0.5mm, tactile type 0.6 - 1.5mm |
Environmental parameters | |
Operating Temperature |
-20°C - +80°C |
Storage temperature |
-40°C - +85°C |
Humidity |
40°C,90%-95%,240 hours |

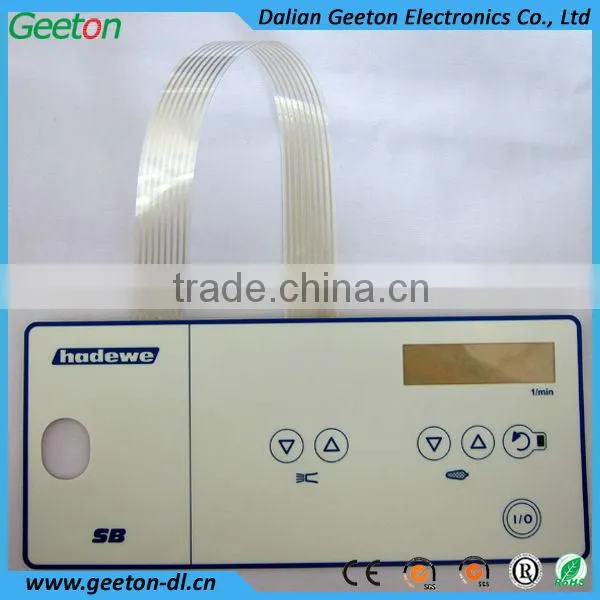

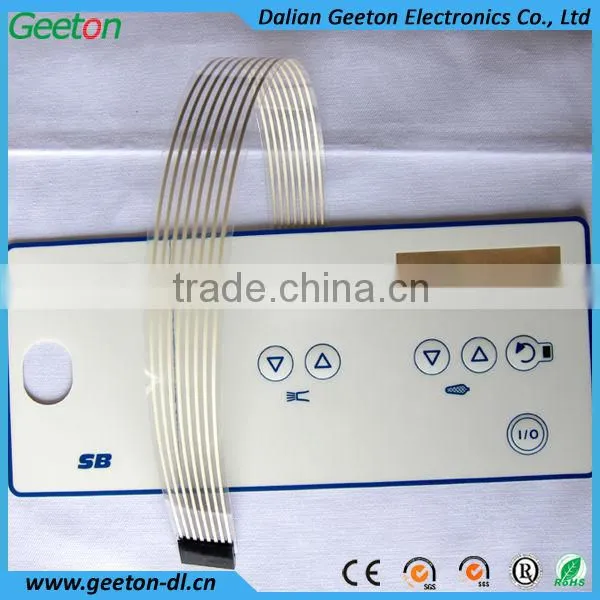

NO.4 Key Membrane Switch Recommend
NO.5 FlOW Chart & Package
NO.6 Why Choose us!
Brief Company Profile
1. Founded in 2003, have 6000 m2 workshop area and 200 employees.
2. Main products: membrane switch, graphic overlay, label, acrylic panel, sticker,
FPC and 2D&3D automotive dials.
3. Application Fields: household electrical appliances, beauty medical equipment,
sports equipment, telecommunication, office automation, test instrument,
children’s toys, industrial meters and automotive instrument.
4. Certification: ISO9001:2008, ISO14001:2009, TS16949:2009, raw material can meet
RoHS standard.
