Help CenterLED Pillow Embossed Keyboard Membrane Switches
Related Products
-
Uv Resistance Membrane Key El Backlight Membrane SwitchUS$ 0.1 - 3.5MOQ: 50 Pieces -
Custom Silk Screen Printing Autotype F150 Digital Membrane Keypad SwitchUS$ 0.1 - 3.5MOQ: 100 Pieces
-
Polyester Metal Dome LED Keyboard Touch Screen Overlay For MassagerUS$ 0.1 - 3.5MOQ: 50 Pieces
-
Red LED Pillow Embossed Membrane Switch KeyUS$ 0.5 - 3MOQ: 100 Pieces
-
Tactile Key Membrane SwitchUS$ 0.1 - 10MOQ: 100 Pieces

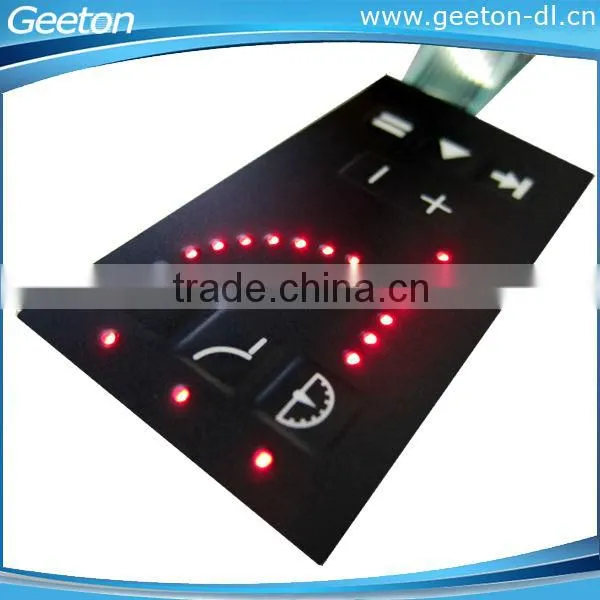

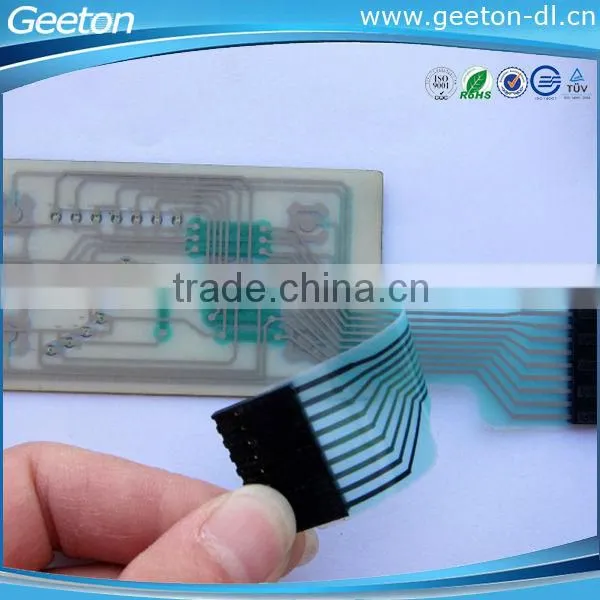

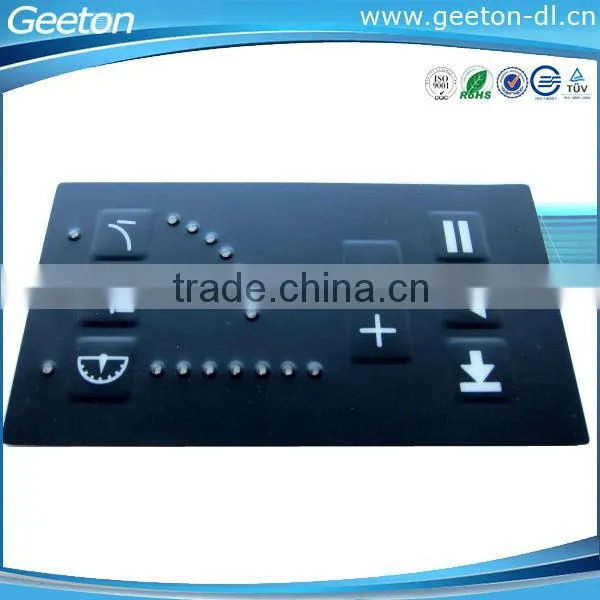

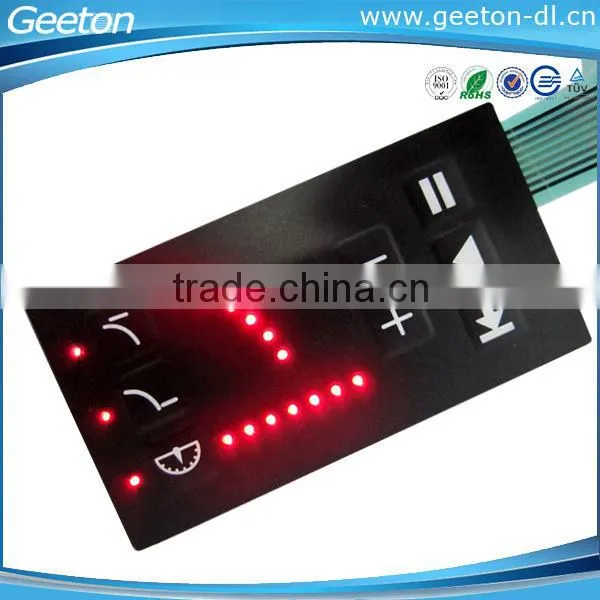

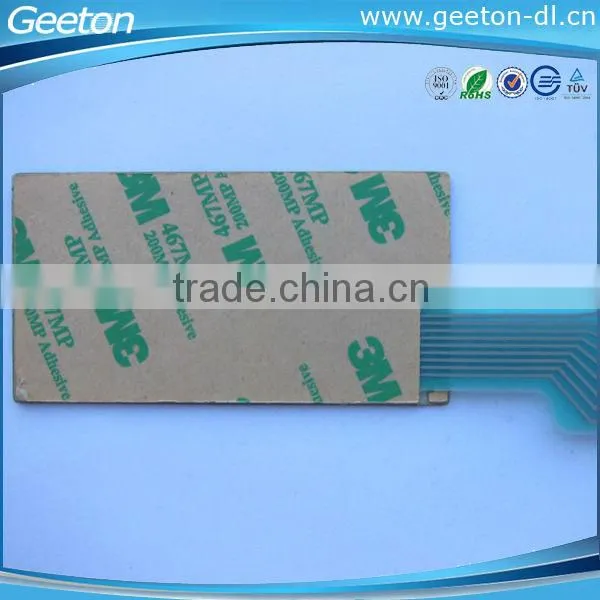

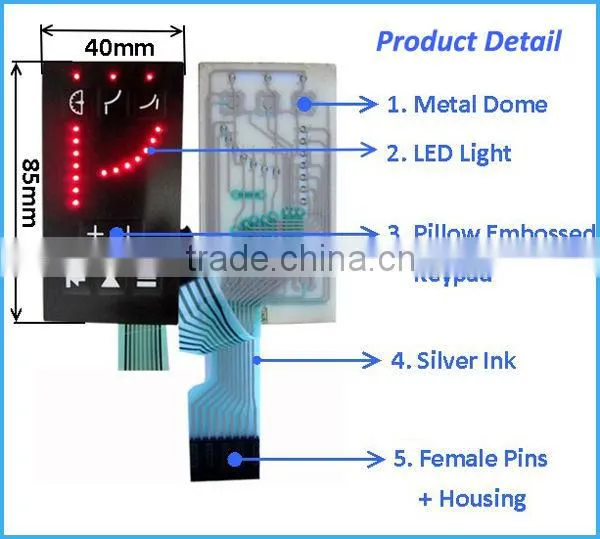

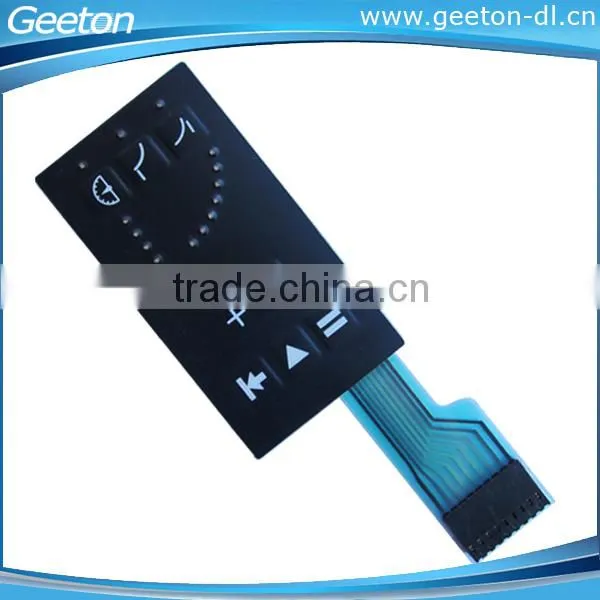

NO.1 LED Pillow Embossed Keyboard Membrane Switches
NO.2 Membrane Switches Performance
Membrane Switch Performance | |
Electrical Performance | |
Circuit Grade |
35V(DC),100mA,1 W |
Loop Resistance |
10Ω - 500Ω(According the trace length and materials to confirm) |
Insulation Resistance |
>100MΩ 250V(DC) |
Dielectric Resistance |
250VRms(50 - 60Hz/1 min) |
Contact Chatter Time |
≤5ms |
Service Life |
flat type≥5 million times |
tactile type:≥1 million times | |
Mechanical Properties | |
Operating Force |
flat type 57-284g (2-10 Oz) |
tactile type 170-397g (6-14 Oz) | |
Switch Stroke |
flat type 0.1 - 0.5mm |
tactile type 0.6 - 1.5mm | |
Environmental Parameters | |
Operating Temperature |
-20°C - +80°C |
Storage Temperature |
-40°C - +85°C |
Humidity |
40°C,90%-95%,240 hours |
NO.3 Membrane Switch Type
NO.4 Application & Recommend
No. 5 Flow Chart
No. 6 Company Panorama & Customers Visiting
NO. 7 Why Choose US!
Brief Company Introduction
1. Founded in 2003, have 6000 m2 workshop area and 200 employees.
2. Main products: membrane switch, graphic overlay, label, acrylic panel, sticker,
FPC and 2D&3D automotive dials.
3. Application Fields: household electrical appliances, beauty & medical equipment,
sports equipment, telecommunication, office automation, test instrument,
Children’s toys, industrial meters and automotive instrument.
4. Certification: ISO9001:2008, ISO14001:2009, TS16949:2009, raw material can meet
RoHS standard.
5. Cooperative Clients
