Specifications
Waterproof Tactile Switch1,Material:Clear PET
2,Adhesive;3M 467
3,OEM & ODM
4,Certification:ISO9001:2008,ISO14001&RHOS
Polyester Tactile Transparent Window Thin Film Switches With PCB Circuit

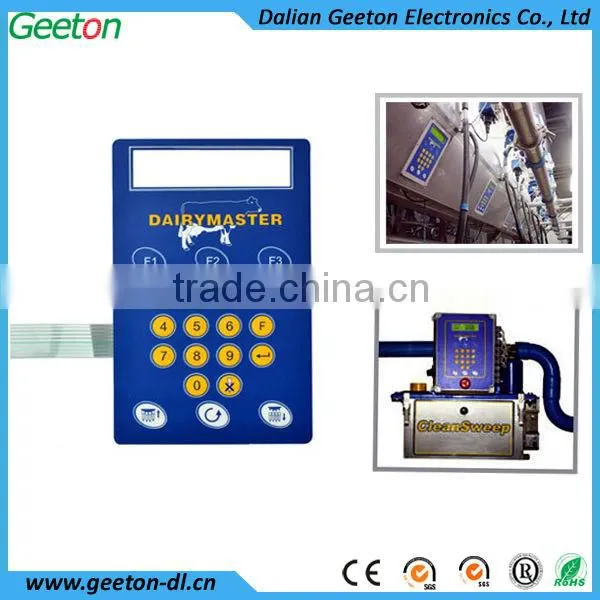

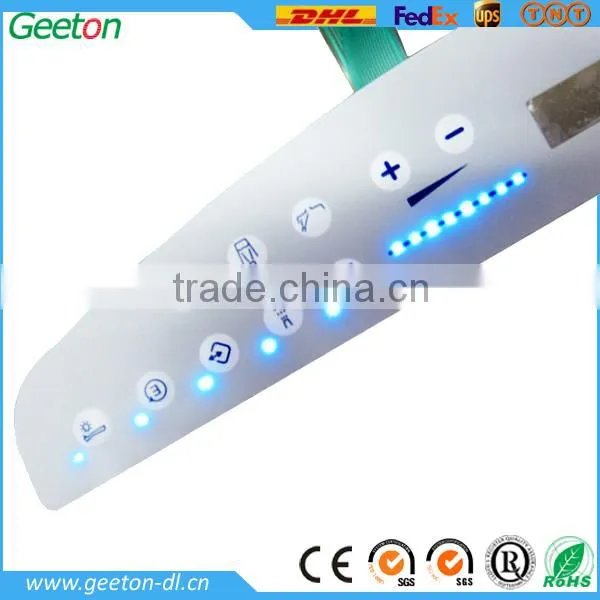

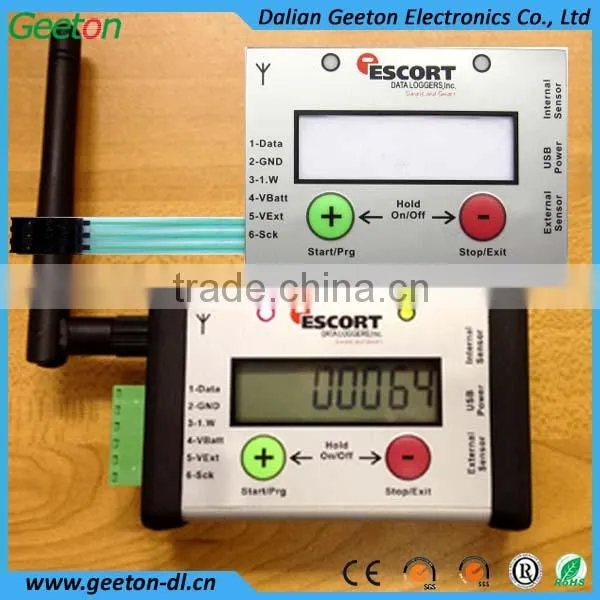

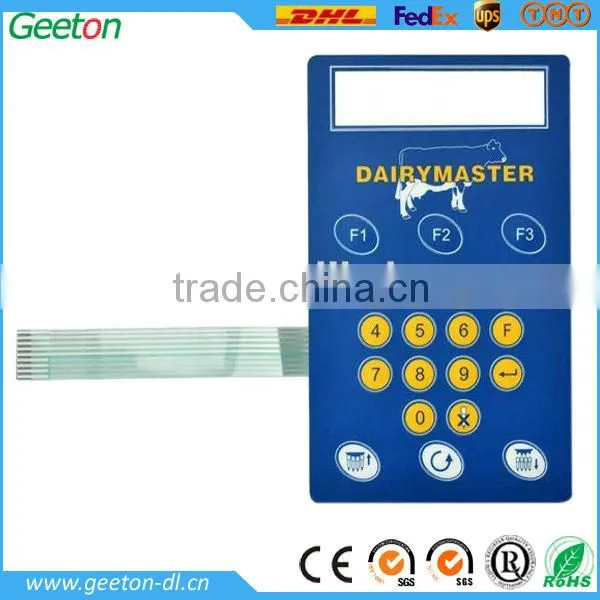

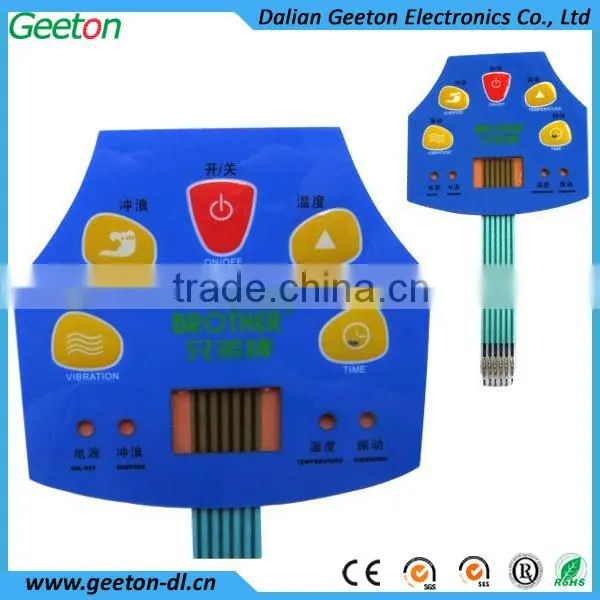

NO.1:Waterproof Tactile Switch Shows
NO.2: Waterproof Tactile Switch Performance
Membrane Switch Performance | |
Electrical Performance | |
Circuit Grade |
35V(DC),100mA,1 W |
Loop Resistance |
10Ω - 500Ω(According the trace length and materials to confirm) |
Insulation Resistance |
>100MΩ 250V(DC) |
Dielectric Resistance |
250VRms(50 - 60Hz/1 min) |
Contact Chatter Time |
≤5ms |
Service Life |
flat type≥5 million times |
tactile type:≥1 million times | |
Mechanical Properties | |
Operating Force |
flat type 57-284g (2-10 Oz) |
tactile type 170-397g (6-14 Oz) | |
Switch Stroke |
flat type 0.1 - 0.5mm |
tactile type 0.6 - 1.5mm | |
Environmental Parameters | |
Operating Temperature |
-20°C - +80°C |
Storage Temperature |
-40°C - +85°C |
Humidity |
40°C,90%-95%,240 hours |
NO.3: Waterproof Tactile Switch Advantages
Appearance |
Beautiful, bright in color |
Design |
Small size, light weight, thin thickness, various types of products can be designed according to customer requirements. |
Feature |
Abrasion resistant, Tightness is good, moisture-proof, dust-proof, anti-oil, anti-corrosion and erosion of harmful gases proof, acid and alkali proof, quake proof. |
Quality |
In-house 100% functionally tested. |
Life expectancy |
High lifespan, different types of membrane switch is more than 1 million times. |
Operation |
Easy to operate, intuitive, safe and reliable, Installation and connection convenience. |
NO.4:You may interested in the Other products
NO.5:Waterproof Tactile Switch Type
NO.6:Waterproof Tactile Switch Application
NO.7:More information About Us
Our Certification
Our Company
Our work processes /Customers visiting
NO.8:The cooperation of our customers
NO.9:Our Promise To You
1. Brief Company Introduction
Founded in 2003, have 6000 m2 workshop area and 200 employees.
Main products: membrane switch, graphic overlay, label, acrylic panel, sticker,FPC and 2D&3D autototive dials.
Application Fields: household electrical appliances, beautity & medical equipment, sports equipment,
telecommunication, office automation, test instrument, children's toys, industrial meters and automobile instruments.
Certification: ISO9001:2008, ISO14001:2009, TS16949:2009, raw material can meet RoHS standard.
