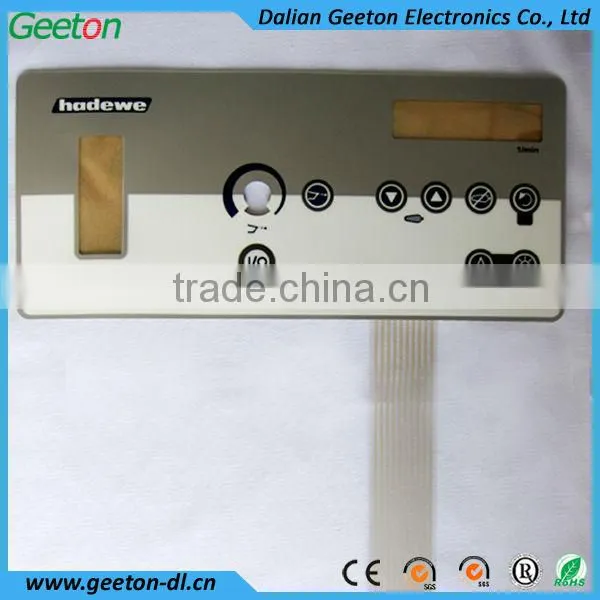

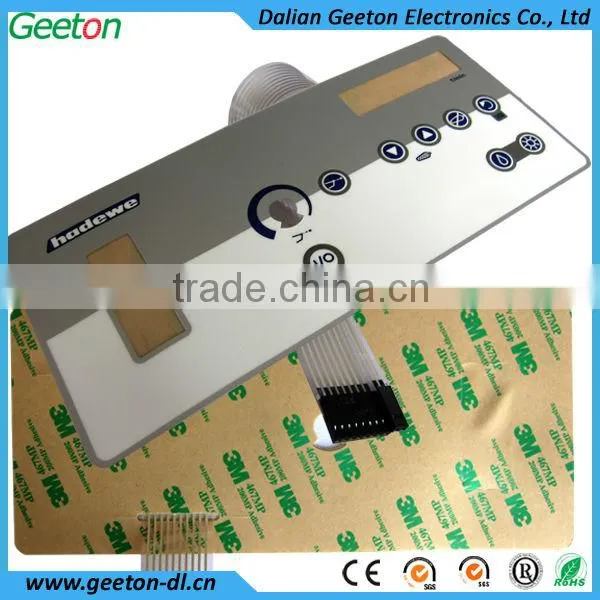

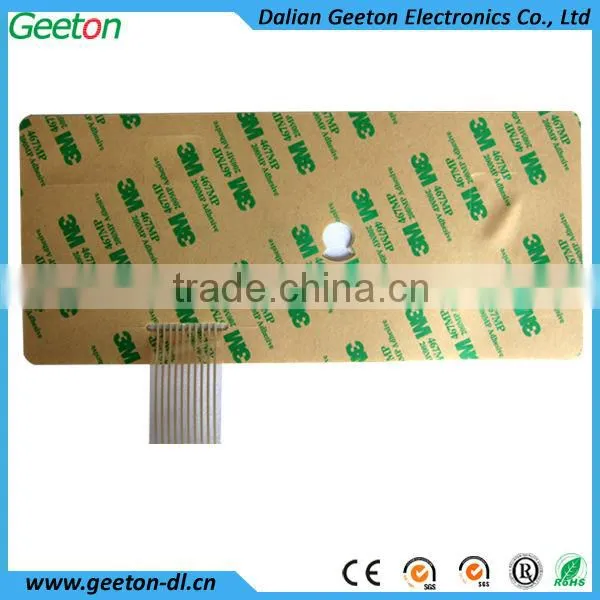

Metal Dome Membrane Switch Panel With LED Light

Name: Metal Dome Membrane Switch Panel With LED Light
Brand: Geeton
SKU: 108218371

US$ 1 - 5 MOQ: 100 Pieces

Key Specifications

Place of Origin:

China

Brand Name:

Geeton

Model Number:

GMS-323

Dalian Geeton Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name Geeton

Model Number GMS-323

Max. Current 100mA

Max. Voltage 35V

Specifications

Metal Dome Membrane Switch
Easy installation Lower cost
Integrate graphics
Fastest delivery time
Authorized certification

Metal Dome Membrane Switch

Membrane Switch Type:

a. Flat membrane switch, if have button, button also flat.

b. Tactile keypad membrane switch, buttons are embossed, there are 3 types for embossing:

1. Dome embossed 2. Pillow embossed 3. Rim embossed

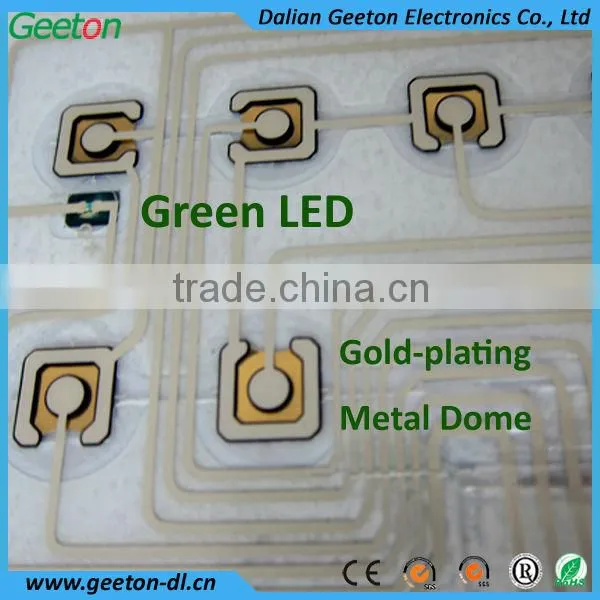

c. Metal dome membrane switch

d. LED membrane switch.

e. Metal dome&LED membrane switch

f. Membrane switch with gasket

Membrane Switch Performance

Certification	ISO9001:2008, ISO14001:2008& RoHS.
Components:	LED, metal domes, connector and circuit, all these can be designed and made according to customer requirements.
Electronic characteristics
Circuit rating	35V(DC),100mA,1 W
Contact resistance	10Ω - 500Ω(According the trace length and materials to confirm)
Insulation resistance	>100MΩ 250V(DC)
Contact bounce	≤5ms
Dielectric withstand	250VRms(50 - 60Hz/1 min)
Life expectancy	flat type≥5 million times, tactile type:≥1 million times
Mechanical Properties
Operating pressure	flat type 57-284g (2-10 Oz),tactile type 170-397g (6-14 Oz)
Switch stroke	flat type 0.1 - 0.5mm, tactile type 0.6 - 1.5mm
Environmental parameters
Operating Temperature	-20°C - +80°C
Storage temperature	-40°C - +85°C
Humidity	40°C,90%-95%,240 hours

Membrane Switch Advantages

Appearance	Beautiful, bright in color
Design	Small size, light weight, thin thickness, various types of products can be designed according to customer requirements.
Feature	Abrasion resistant, Tightness is good, moisture-proof, dust-proof, anti-oil, anti-corrosion and erosion of harmful gases proof, acid and alkali proof, quake proof.
Quality	In-house 100% functionally tested.
Life expectancy	High lifespan, different types of membrane switch is more than 1 million times.
Operation	Easy to operate, intuitive, safe and reliable, Installation and connection convenience.
