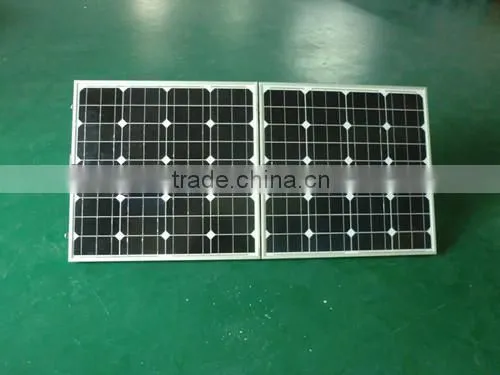

Flexible pv Solar Panel for 100w

Flexible pv Solar Panel for 100w thumbnail-1
Flexible pv Solar Panel for 100w photo-1
US$ 0.55 - 0.65 MOQ: 100 Watts
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ZJLC
Model Number:
LCKJ
Contact Supplier Request Quote Chat Now
Zhejiang Long Chi Technology Limited Company
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name ZJLC
Model Number LCKJ
Material Polycrystalline Silicon
Size according to customer needs
Number of Cells 30
Max. Power 300W

ZHEJIANG LONGCHI TECHNOLOGY Co.,LTD Conventional Solar Panel Specifications of 156mm Single Crystal and Polycrystalline


Specification Standard Watt/W Peak Voltage/V Peak Current/A Open Circuit Voltage/V Short Circuit Voltage/V Panel Size L*W*H(mm) Cell Size(mm) Max System Voltage/V Weight(KG)
290W/36V 290W 45V 8.22A 35.3V 8.43A
280W/36V 280W 44.8V 7.95A 35.2V 8.33A
270W/36V 270W 44.5V 7.67A 35.2V 8.2A 1950X989X50 156 1000 24.5
260W/36V 260W 44V 7.41A 35.1V 8.09A
250W/36V 250W 43.8V 7.14A 35V 7.87A
240W/30V 240W 36.4V 7.95A 30.2V 8.4A 1640X989X50/35 156 1000 21
230W30V 230W 36.2V 7.67A 30V 8.24A
220W/30V 220W 35.1V 7.38A 29.8V 8.04A
210W/30V 210W 35.1V 7.1A 29.6V 7.82A
200W/27V 200W 32.5V 7.55A 26.5V 8.04A 1480X989X50/35 156 1000 18.5
190W/27V 190W 32.4V 7.34A 26V 7.85A
150W/18V 150W 21.7V 8.19A 17.6V 8.79A 1640X666X35 156 1000 13.5
140W/18V 140W 21.6V 7.95A 17.6V 8.53A
130W/18V 130W 21.5V 7.45A 17.5V 8.32A 1480X666X35 156 1000 12.5
120W/18V 120W 21.3V 6.98A 17.3V 7.95A
100W/18V 100W 21.3V 5.78A 17.3V 6.47A 1168X666X35 156 715 10
90W/18V 90W 21.6V 5.1A 17.5V 5.6A
80W/18V 80W 21.6V 4.57A 17.5V 5.1A 1197X523X35 156 715 8.6
70W/18V 70W 21.6V 4A 17.5V 4.26A
65W/18V 65W 21.5V 3.76A 17.3V 4.16A 776X666X35 156 715 7
60W/18V 60W 21.3V 3.49A 17.2V 3.86A
50W/18V 50W 21.3V 2.91A 17.2V 3.4A 650X666X35 156 715 5.5
40W/18V 40W 21.4V 2.32A 17.2V 2.57A 666X540X25 156 715 4.6
35W/18V 35W 21.5V 2.02A 17.3V 2.33A 774X354X25 156 715 3.5
30W/18V 30W 21.6V 1.75A 17.2V 2.01A
25W/18V 25W 21.7V 1.45A 17.3V 1.68A 650X354X25 156 715 3.2
20W/18V 20W 21.8V 1.16A 17.2V 1.35A 540X354X25 156 715 3
15W/18V 15W 21.9V 0.88A 17V 1.01A 410X350X17 156 715 2.5
12W/18V 12W 21.10V 0.7A 17V 0.77A
10W/18V 10W 21.11V 0.59A 17V 0.68A 389X349X17 156 715 2
5W/18V 5W 21.12V 0.29A 17V 0.32A 293X193X17 156 715 1
4W/18V 4W 21.13V 0.24A 17V 0.26A
4W/9V 4W 10.8V 0.46A 8.6V 0.51A 230X186X17 156 715 0.7
3W/9V 3W 10.8V 0.34A 8.6V 0.39A
2W/9V 2W 10.8V 0.23A 8.6V 0.26A 186X130X17 156 715 0.5
Can be customized according to customers' specifications
