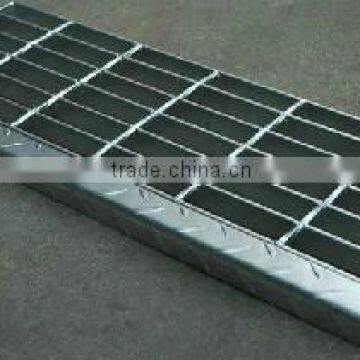

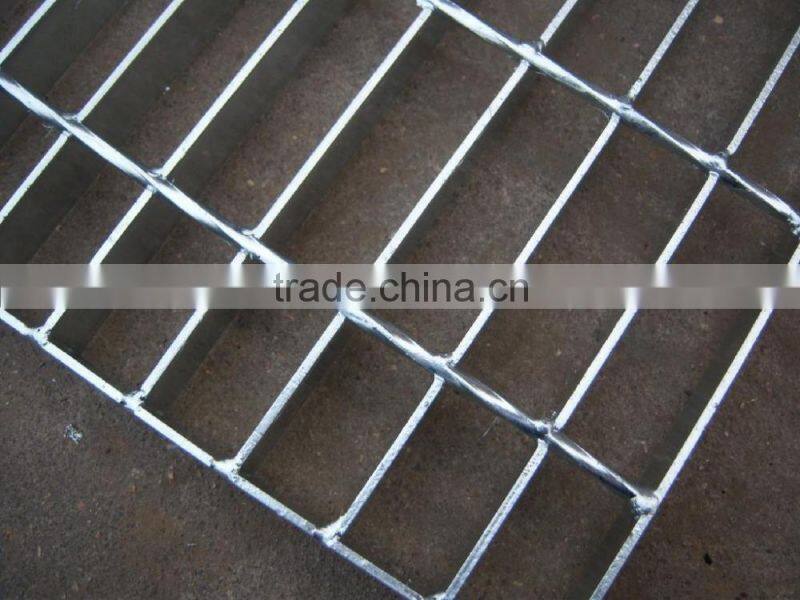

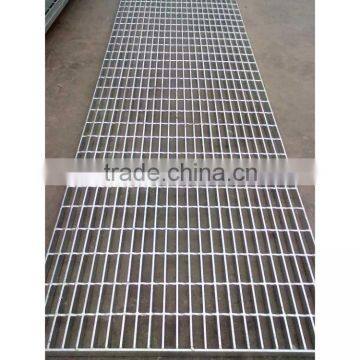

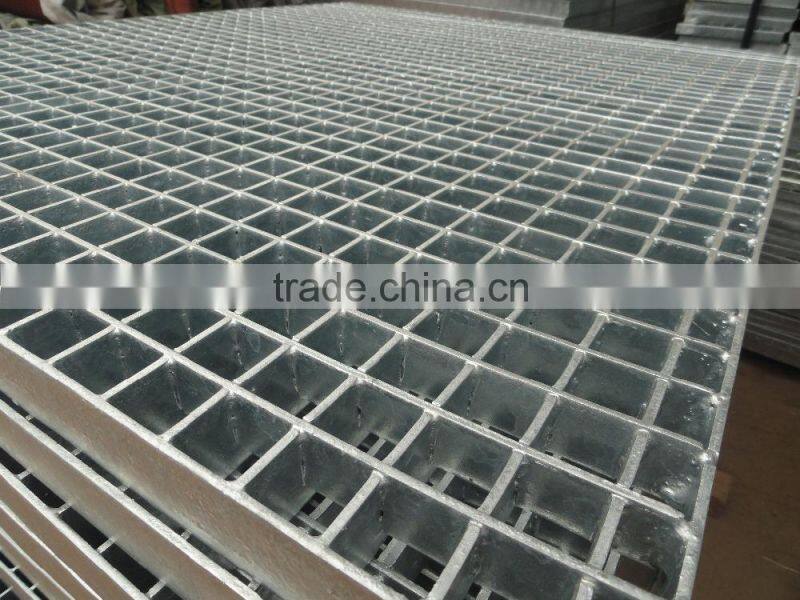

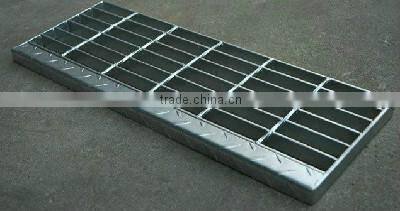

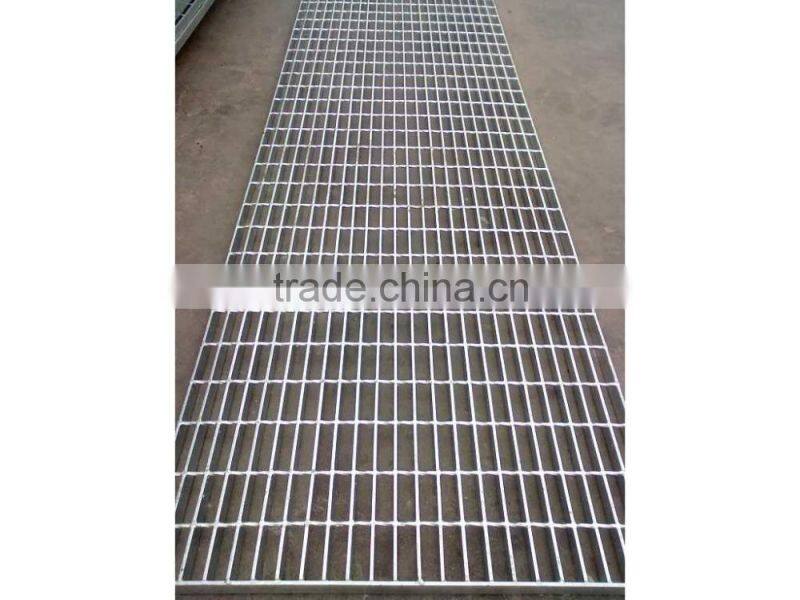

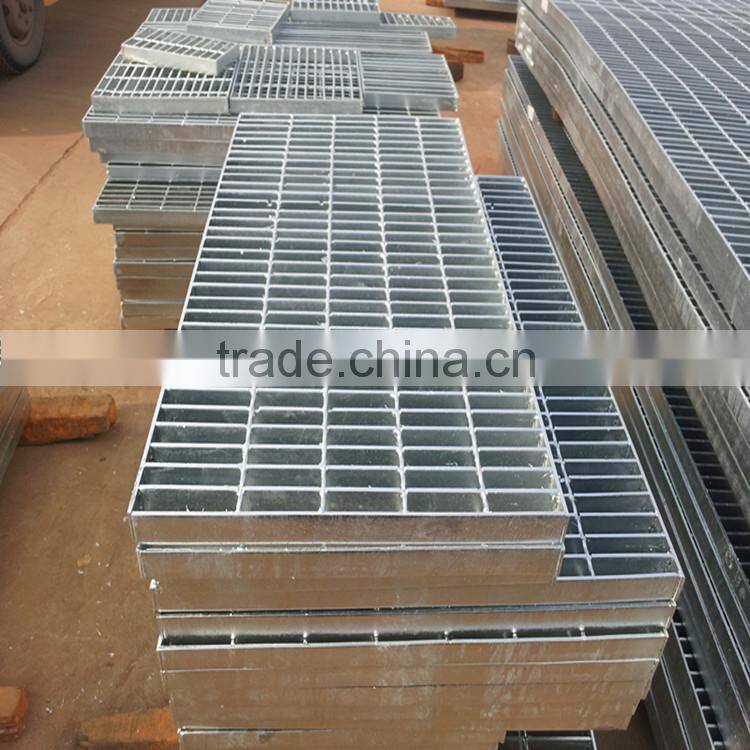

Help CenterEurope Standard Galvanized Steel Grating/galvanized Steel Grating, Bar Grating, Trench Grating
Related Products
-
High Quality and Competitive Stainless Polyurethane Sandwich PanelUS$ 11 - 19MOQ: 500 Meters -
High Quality Hot Sale Pu Sandwich Panels Manufacturer in ChinaUS$ 12 - 25MOQ: 500 Meters
-
Prefab Luxury House Container House Price Shipping Container HomesUS$ 3000.00 - 3500.00MOQ: 1 Set
-
Tianjin Zhongjie Wood Door/doors PricesUS$ 80 - 170MOQ: 5 Pieces
-
Doors Prices for Modern House and Interior DecorationUS$ 80 - 170MOQ: 5 Pieces
Quick Details
| Place of Origin: | Brand Name: | Model Number: | |||
| Material: | Grating Standard: | Hot Dip Galvanized standard: | |||
| Certification: | Grating Specification: | Application: | |||
| Surface Treatment: | Grating Steel Material: | Type: | |||
| Market: |
1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10;the specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2) Bearing Bar Pitch (center to center):
12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended,
America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4),(19-w-2) and so on.>
3) Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's requirement and 50, 100mm are recommended, America standard is available.
Type |
Welded steel grating, pressure-locked, socket-welding |
Steel flat size |
20×3,25×3,25×5,30×3,30×4,30×5,32×3,32×5……45×5mm |
Beraing bar pitch |
12.5,15,20,25,30,35,40,50mm |
Cross bar pitch |
38,50,80,100mm |
material |
Low carbon steel, stainless steel, aluminium |
Surface treatment |
Untreated, hot galvanized, painted |
Standards |
China: YB/T 4001.1-2007 USA: ANSI/NAAMM(MBG531-88) UK: BS4592-1987 Australia: AS 1657-1985 |
