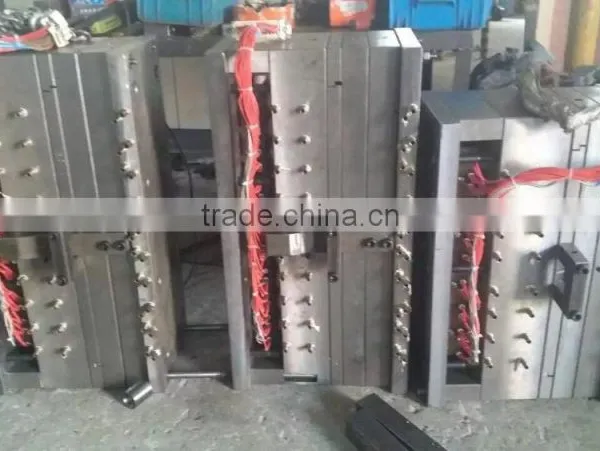

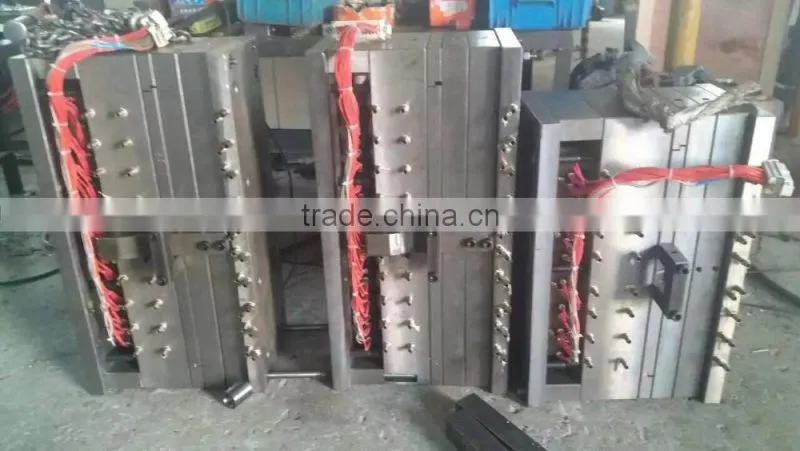

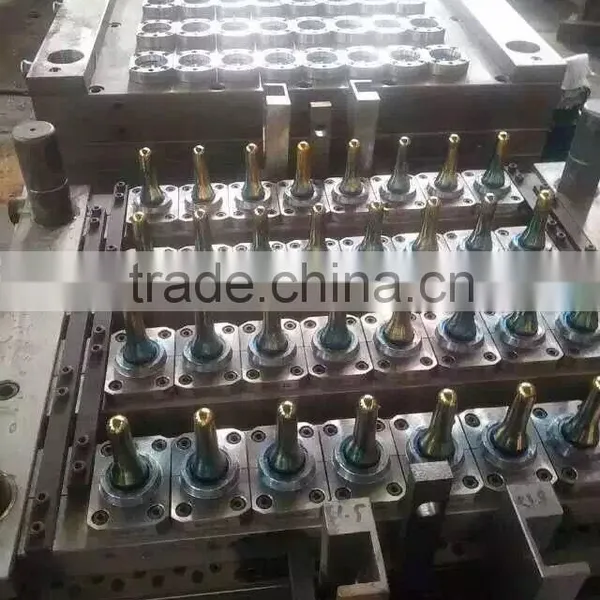

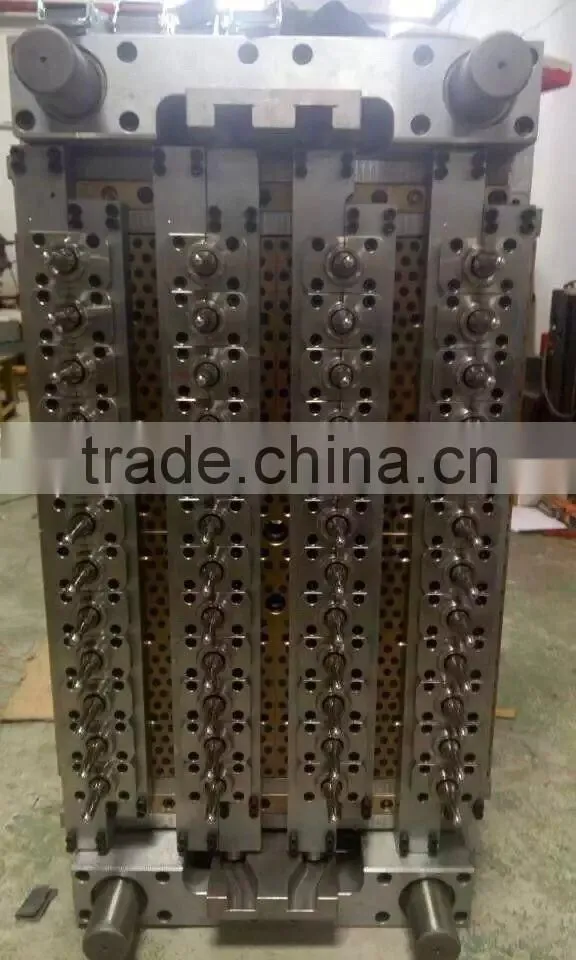

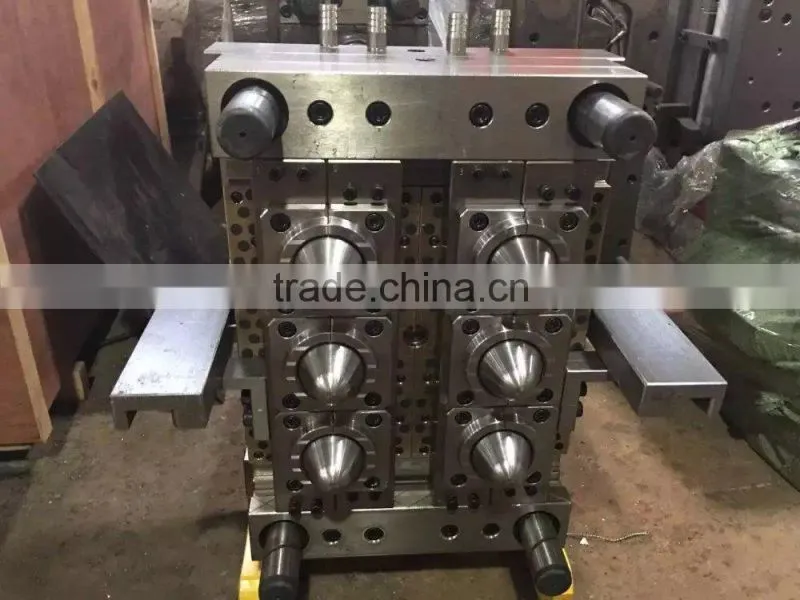

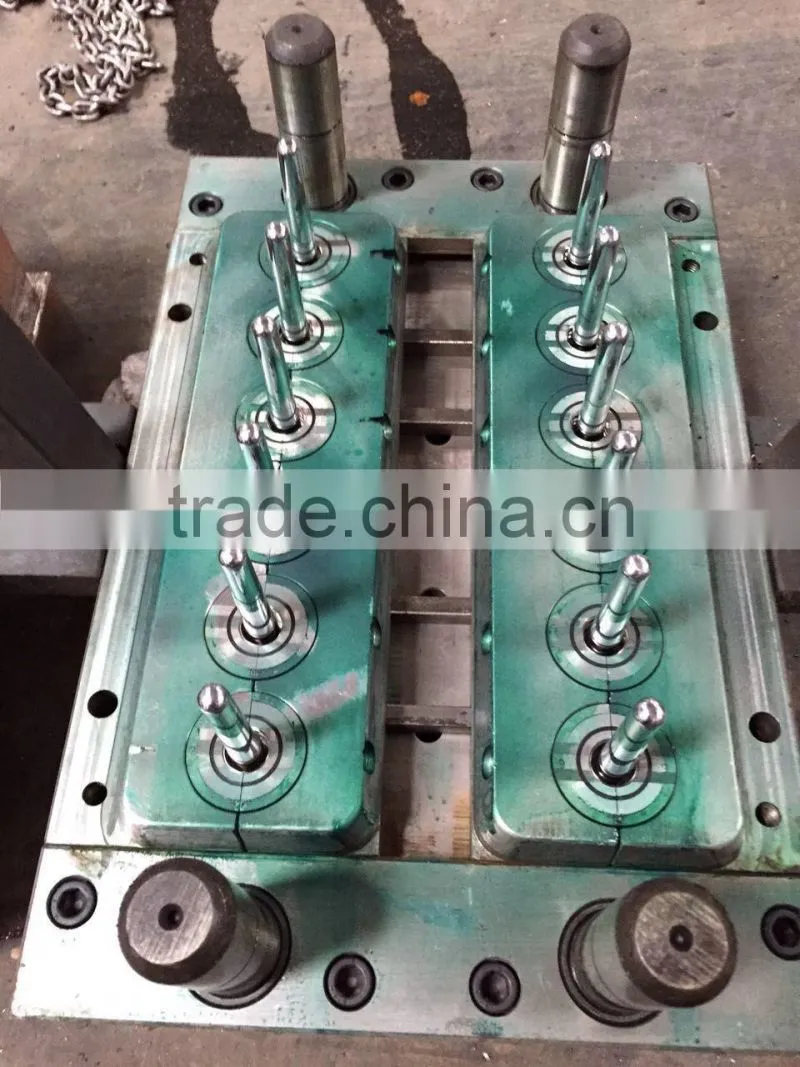

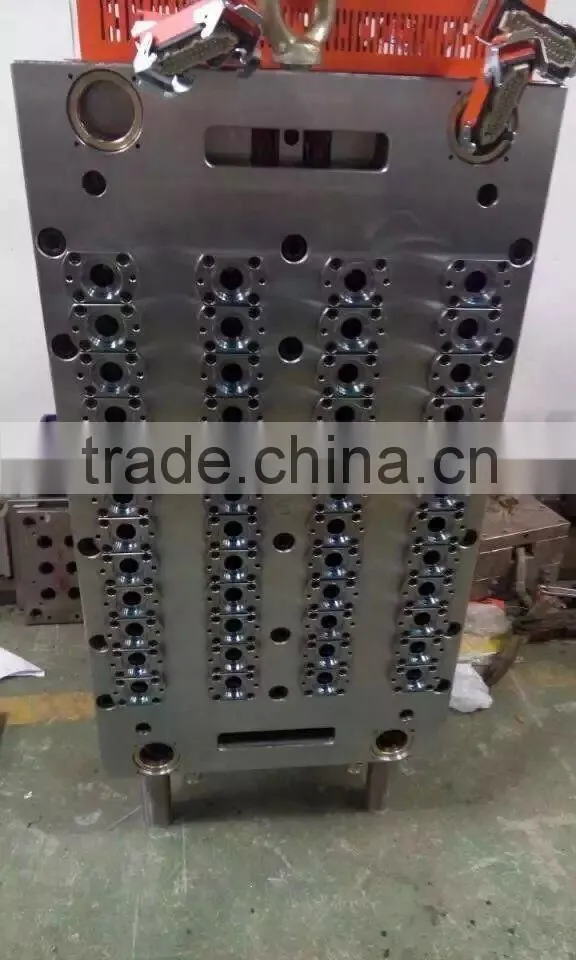

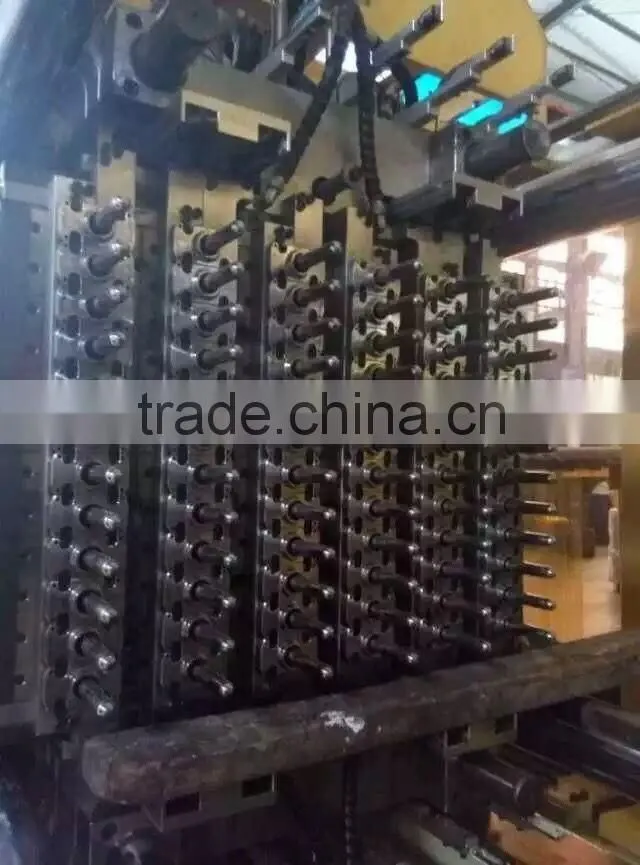

Help CenterPET Preform Mould
Related Products

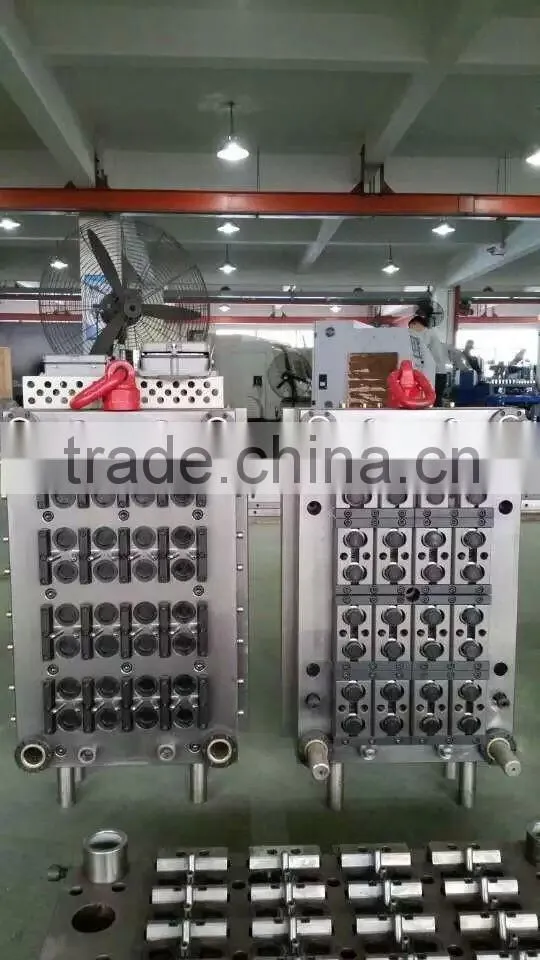

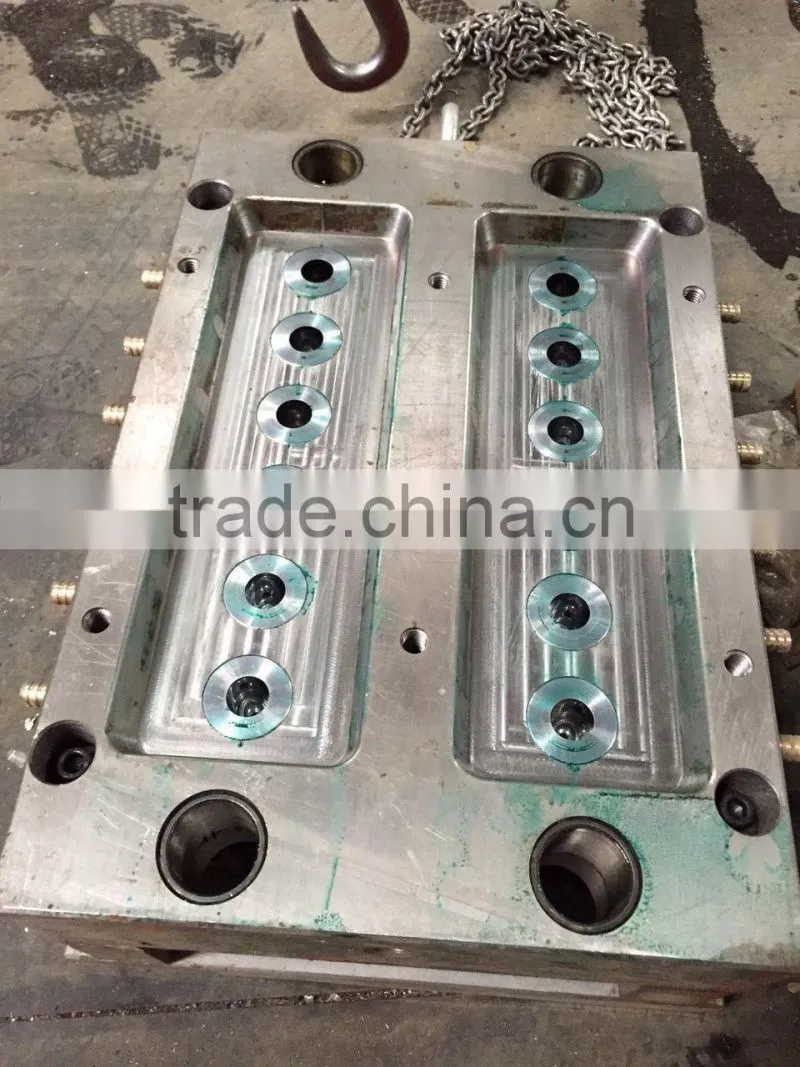

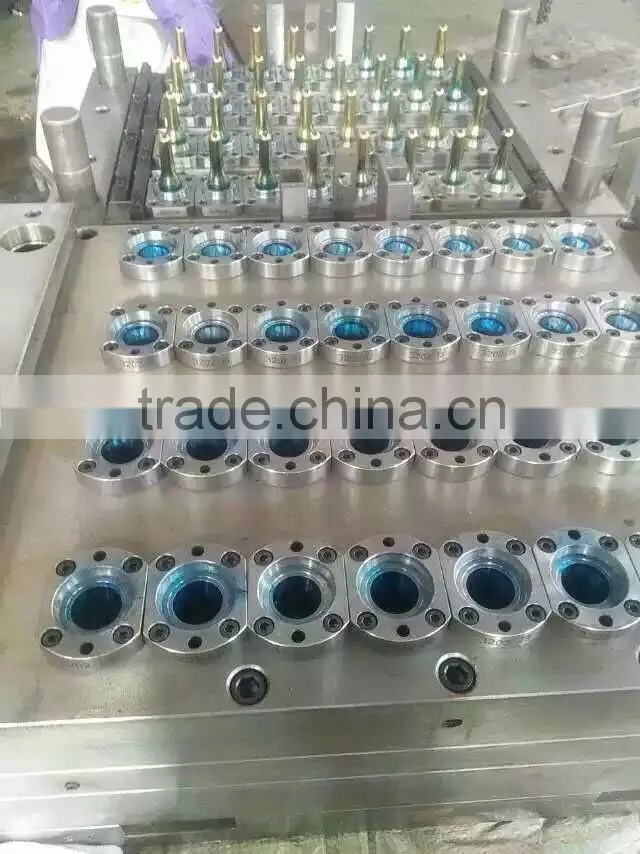

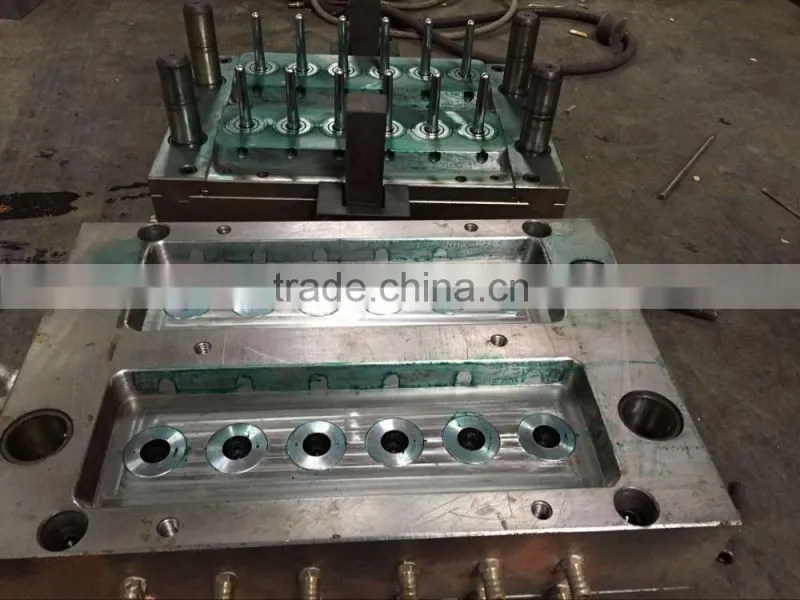

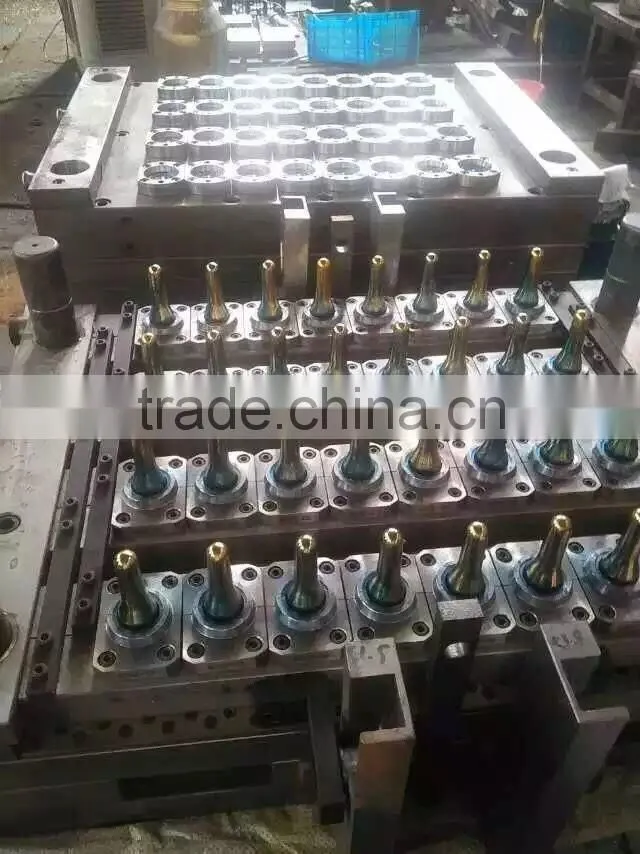

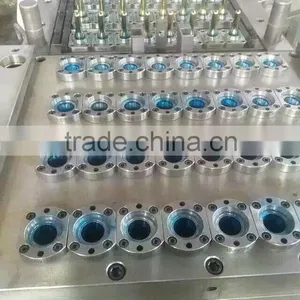

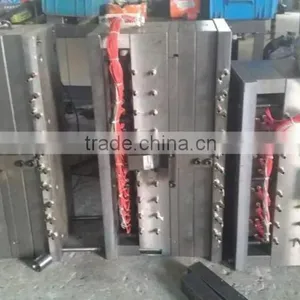

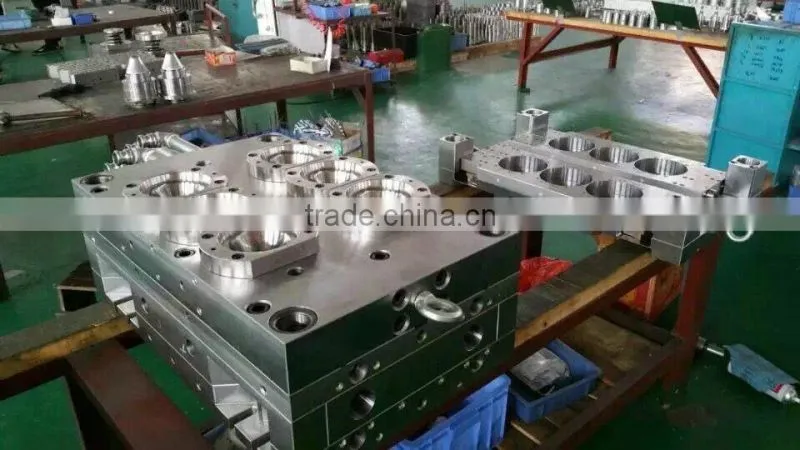

Mould Details:
l Cavity, core and Screw neck of steel adopt imported S136 in Sweden, and be heating treatment of hardness up to HRC48-50, all mould base do heat treatment of hardness up to HRC30-35
l Advanced mould design technology:
l Each cavity self-locks independently and using high precision Japan CNC System.
l Ensure low decantation & precision of the product. Each mould spare part be inserted with durable part, which are interchangeable.
l In order to improve and achieve high production efficiency, we always design the best cooling system and can match a cooling machine for each mould.
l Advanced & accurate valve hot runner & temperature controller, ensure reliability of production, and high transparency &brightness of product.
l Mould sliding use copper, Bottle be achieved FOOD SECURITY standard, and mould life guarantee more than 3 million shots.
Mould Data
No. of Cavity |
12 Cavity |
16 Cavity |
24 Cavity |
32 Cavity |
48 Cavity |
72 Cavity |
18g(cm) |
60*37*43 |
74*37*43 |
80*50*45 |
76*60*48 |
102*60*55 |
110*86*58 |
Weight(kg) |
625 |
770 |
1300 |
1650 |
2500 |
4100 |
28(cm) |
60*37*45 |
74*37*45 |
80*50*48 |
76*60*52 |
102*60*58 |
110*86*62 |
Weight(kg) |
655 |
810 |
1310 |
1800 |
2690 |
4450 |
40(cm) |
60*37*48 |
74*37*48 |
80*50*50 |
76*60*55 |
102*60*62 |
110*86*65 |
Weight(kg) |
700 |
860 |
1360 |
1900 |
2880 |
4670 |
