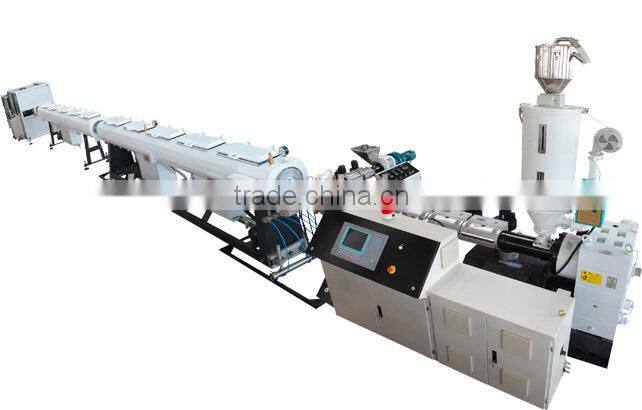

PE PPR Pipe Extrusion Line

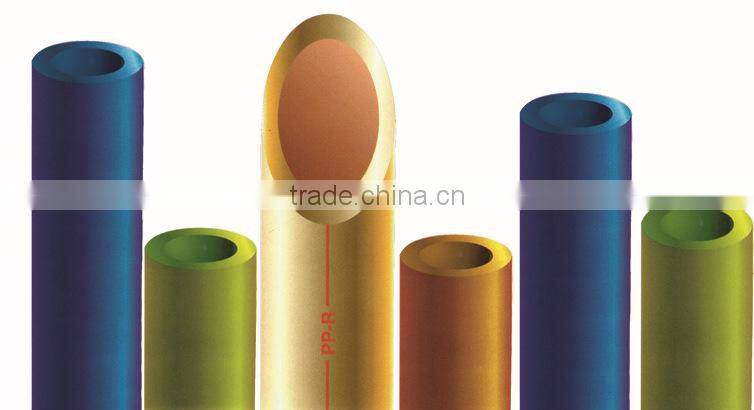

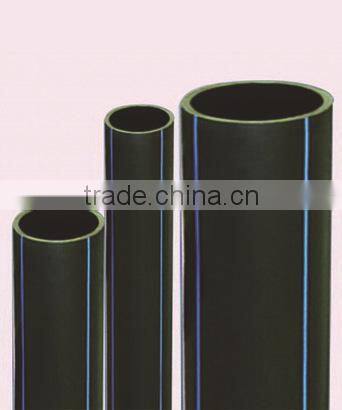

For water/ gas supply
Introduction
1 Single screw extruder, very suitable to process PE resin with high capacity, max capacity 1000kg/h
2 The production line adopts reasonable design, absorbing safe producing technology, acquiring CE certificate.
3 Diameter range is 16mm-800mm, which can be changed into inch standard to meet clients special requirement.
4 PLC control system, can get the running condition directly on the screen.
Technical data
Pipe range |
16-63mm |
20-110mm |
75-160mm |
90-250mm |
110-315mm |
160-450mm |
315-630mm |
500-800mm |
Extruder |
¢45mm |
¢60mm |
¢75mm |
¢75mm |
¢90mm |
¢90mm |
¢120mm |
¢150mm |
Extruder power |
AC30kw |
DC75kw |
DC110kw |
DC110kw |
DC160kw |
DC160kw |
DC280kw |
DC335kw |
Extrusion capacity |
60-100kg |
100-150kg |
250-300kg |
250-300kg |
350-400kg |
350-400kg |
650-700kg |
850-900kg |
Max. Production speed |
10m/min |
6m/min |
6 m/min |
6 m/min |
3 m/min |
1.2m/min |
0.9m/min |
0.7m/min |
Process Flow
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul-off machine → cutting machine → discharging rack

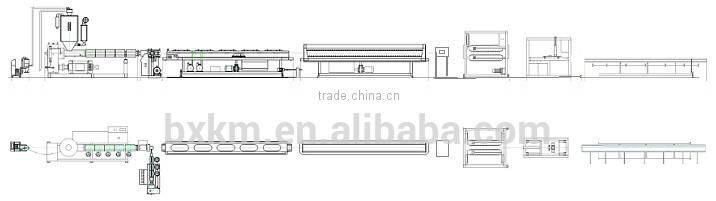

Extruder Vacuum and sizng tank water cooling tank Hauling Cutting Stacker
System configuration
1 |
Vacuum loader |
1 set |
2 |
Hopper dryer |
1 set |
3 |
Single-Screw Extruder type SJ90/33 |
1 set |
4 |

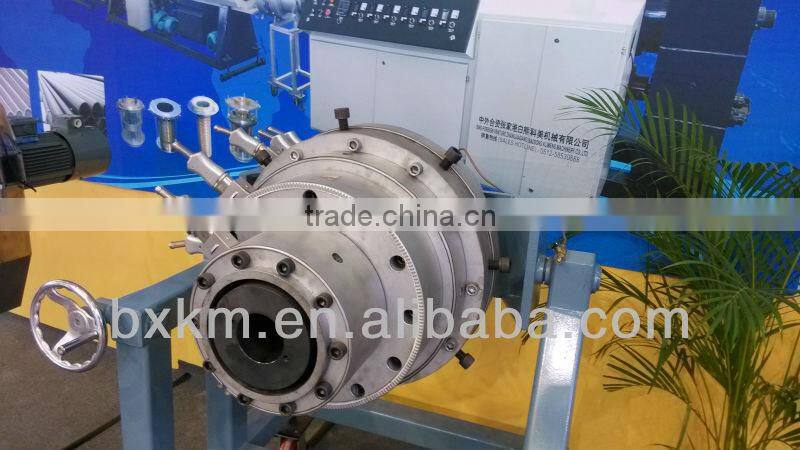

Set of extrusion die head with all die cores , die cups and calibrators for pipes |
Whole 1 set |
5 |
C0-extruder |
1 set |
6 |
Vacuum calibration tank |
2 sets |
7 |
Extended cooling tank |
2 sets |
8 |
Four-claws Hauling Machine |
1 set |
9 |
Pipe Planet-Cutting Machine |
1 set |
10 |
Pipe stacker |
1 set |
*This specification can produce dia. max. 450mm PE/PPR pipe

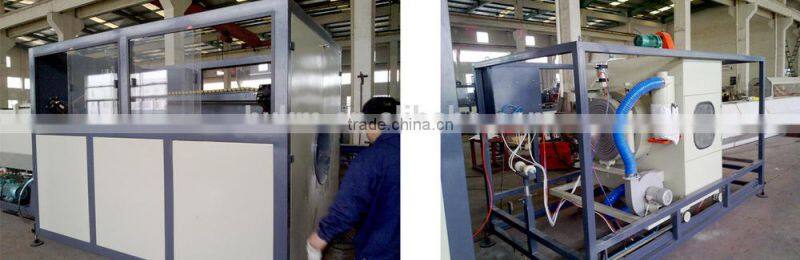

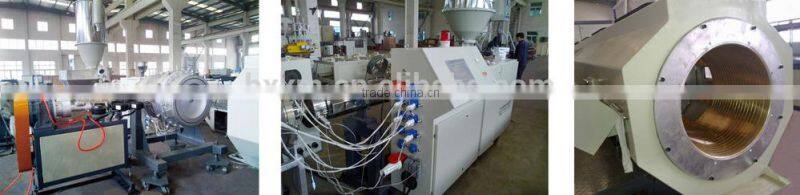

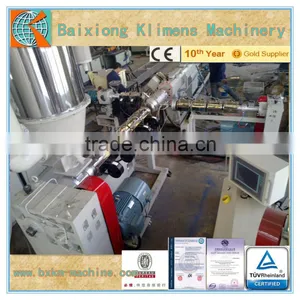

Pictures of the line
We will test each line before shipment
Certificate
Payment, delivery and others
Payments terms: by divided payments of
30% T/T down payment and
70% T/T before delivery
Or 100% irrevocable and irmconfed L/C at sight, payable against shipping documents.
Delivery time: 50 days upon down payment or L/C or depends
By sea, air or train
*Warranty: 13 months
*Our engineers are available to service machinery overseas
If you have any questions for us, please feel free and contact us:
Contact: Eason Wang
Mob/ WhatsApp: +86 18351183953
Skype: eason122790
Chinaplas
Looking forward to your inquiry !
