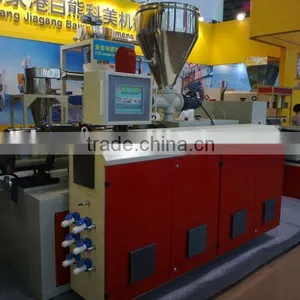

Conical Double Screw Extruder
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, bar, profile, pipe, slice, plate, double screw extruder
Plastic Processed:
PVC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Conical Twin Screw ExtruderNegotiableMOQ: 1 Set -
SJ Series Single Screw Extruder MachineUS$ 32,300 - 68,200MOQ: 1 Set
-
Conical Twin Screw ExtruderUS$ 45,000 - 61,000MOQ: 1 Set
-
Plastic Pipe Profile Extruder MachineUS$ 45,000 - 61,000MOQ: 1 Set
-
Low Conical Twin Screw Extruder PriceUS$ 45,000 - 61,000MOQ: 1 Set
Condition
New
Application
Other, bar, profile, pipe, slice, plate, double screw extruder
Plastic Processed
PVC
Screw Design
Double-screw
Place of Origin
Jiangsu, China
Brand Name
BXKM
Model Number
SJSZ Series
Certification
ISO9001 & CE
Specifications
double screw extruderduce PVC pipe, slice, plate, bar material
2.capacity:120--1450kg/hr
3.total pwoer:40-255kw
Conical Double Screw Extruder
(1) It can be equipped screw and auxiliary machine. Various thermoplastic plastics especially hard polyvinyl chloride powder can be directly extruded pipe, board, slice, film and irregular material.
(2)And it also can complete the modification of various plastics and the granulation of powder.
It adopts DC motor, silicon-controlled infinitely timing, equipping overload protection, fault alarm, vacuum exhaust pipe and quantitative feeding equipment.
(3) Main Technical Parameter:
| Specification Model | SJSZ55 | SJSZ65 | SJSZ80 |
| Screw Diameter(mm) | 55/110 | 65/132 | 80/143 |
| Screw Amountf | 2 | 2 | 2 |
| Screw Turning | Anisotropic Outward | ||
| Screw Rotate Speed(r/min) | 1-35.5 | 1-34.7 | 1-36.9 |
| Screw Effective Working Length(mm) | 1210 | 1430 | 1800 |
| Main Electric Motor(kW) | 27 | 37 | 55 |
| Barrel Heating Efficiency(kW) | 11.5 | 24 | 36 |
| Production Capacity(kg/h) | 180 | 350 | 500 |
| Machine Center Height(mm) | 1000 | ||
| Net Weight(kg) | 3000 | 4000 | 5000 |
| Outside Dimension ( Length×Width×Height) | 3770×850×2050 | 4235×1520×2450 | 4850×1550×2500 |
