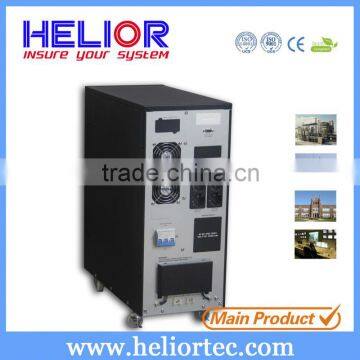

6KVA~20KVA online UPS with batteries inside for data center
Outstanding Feature
1. Advanced Current Control
2. IGBT power component
3. Power Factor Correction
4. Online Maintenance
5. High frequency and double conversion on-line technology
6. Advanced PFC technology
7. EPO Function
8. Wide input voltage range
9. Parallel redundancy
10. Advanced battery management
11. Multilingual LCD display
Technical specification
MODEL
| MODEL | C6K(S)L | C10K(S)L | 3C10KSL | 3C15KSL | 3C20KSL |
|
Power (VA/Watt) |
6000VA/ 4200W |
10000VA/ 7000W |
10000VA/ 7000W |
15000VA/ 10500W |
20000VA/1 4000W |
INPUT
| Voltage & Voltage Range | 220 VAC, 1 Phase + Neutral | 220 VAC, 1 Phase + Neutral | 380 VAC, 3 Phase + Neutral | 380 VAC, 3 Phase + Neutral | 380 VAC, 3 Phase + Neutral |
| Power Factor | ≥ 0.98 | ≥ 0.98 | ≥ 0.95 | ≥ 0.95 | ≥ 0.95 |
| Input Fuse | 32 A NFB | 50 A NFB | 63 A NFB | 100 A NFB | 100 A NFB |
OUTPUT- INVERTER AND BYPASS
| Load Power Factor Range | 0.65 inductive - 1.0 resistive | ||||
| Voltage Wave Form | Sinusoidal | ||||
| Voltage & Voltage Tolerance | 220 / 230 / 240 VAC ± 1% | ||||
| Dynamic Response | At 50% - 100 - 50% unbalanced load, max voltage decline < ± 5% | ||||
BATTERY
| Type and Placement | Maintenance Free, Dry Type | ||||
| Nominal Battery Voltage | 240 VDC | ||||
PROTECTION
| Overload | Electronic Protection is available. In case of exceeding limits, the load is transferred to bypass without any interruption | ||||
| Short Circuit | Inverter shuts down automatically | ||||
| Over Temperature | If the internal Temperature is 90°C the load is transferred to bypass, When it returns < 80°C, Inverter starts to work | ||||
| Modem / Network Protection | Modem / Network protection input against to Voltage Spikes | ||||
Dimensions & Weight
| Dimensions (mm), W x H x D | 260x717x570 | ||||
| Weight W/O / W/Battery (kg) | 35 / 84 | 38 / 93 | 38.5 | 55 | 55 |
* Switch ON/OFF: Press ‘Power on/Alarm Silence’ Key persistently for more than 1 second to turn on the UPS, the output is from inverter. Press ‘Power off’ key persistently for more than 1 second to turn off the UPS.
1) Bypass indicator (Yellow LED)
2) Utility power indicator (Green LED)
3) Inverter indicator (Green LED)
4) Battery indicator (Yellow LED):
5) Fault indicator (Red LED)
6) 2#~6# indicator (2# is Yellow LED, 3#~6# are Green LEDs): these LEDs indicate the load percentage or battery capacity. Under the utility power mode, these LEDs only indicate load percentage. Under the battery mode, these LEDs only indicate battery percentage.
Customer Feedback
Our R&D team have tested your UPS, they are satisfied with the performance of the sample. All the test results are complying with the specification. We are highly appreciated it. --- N. Raja (from Chennai, India)
We are quite impressive with the IGBT function of this UPS. We are now trying to apply this model on our telecommunication systems. --- Robert Alles (from Munich, Germany)
Order information
Trade term: FOB Shenzhen / Hongkong
Delivery time: 7-21 days after confirmed the order
Packaging Detail: Standard export carton or OEM package
Warranty
1 years since the date of purchase
Warranty term
1. Under the terms of this warranty, if failure occurs under normal usage within warranty period, Helior Technology will provide free maintenance based on the proof-documents.
2. If Failure or damage occurs due to incorrect operation, wire connection, or any other mis-opeartions, Helior Technology will provide pay maintenance on charge basis.
More detailed info for family UPS & Inverter, please do not hesitate to inquiry now!
