20KW- 80KW ON LINE THREE PHASE FULL RANGE UPS (3C3 Series)
Outstanding Feature:
1.IGBT based , high frequency rectifier and inverter design to achieve up to 93%-94% efficiency (Mains mode and battery mode),and low input current THD(>3%)
2. ECO mode to achieve up to 98% efficiency for energy saving.
3. Strong over load capability,10 minutes for 125% overload, and 1 minute for 150% overload.
4. wide input range which is suitable for very unstable power supply situation.
5. Generator input acceptable.
6. Power Factor Correction Achieve input PF 0.99.
Technical specification
Product Series |
|
Centrio 3C3 20-80KVA |
||||
Model |
|
3C3 20K |
3C3C 30K |
3C3 40K |
3C3 60K |
3C3 80K |
Capacity |
VA/W |
20KVA/16KW |
30KVA/24KW |
40KVA/32KW |
60KVA/48KW |
80KVA/64KW |
Input
| Connection | 3-Phase + N + G | ||||
| Rectifier Type | IGBT-based Controlled PFC | ||||
| Input Voltage | 380(-45%~ +25%)VAC(when input voltage<75%, output power derating is required) | ||||
| Input Frequency | 50 or 60 Hz (Accepted from 40 to 70Hz) | ||||
Output
| Inverter Type | IGBT-based | ||||
| Output Voltage | 380/400/415VAC | ||||
| Output Frequency | 50Hz/60Hz±8% | ||||
| Output Voltage THD | 1% (max) | ||||
| Max.Load Crest Factor | 3:01 | ||||
| Max.Leading PF Load | Up to 0.9 | ||||
| Overload Capability | ≥10min 110%<Load125% | ||||
| ≥1min 125%<Load150% | |||||
Efficiency
| AC Mode | Up to 93% | Up to 94% | |||
| Battery Mode | Up to 93% | Up to 94% | |||
| ECO Mode | Up to 98% | ||||

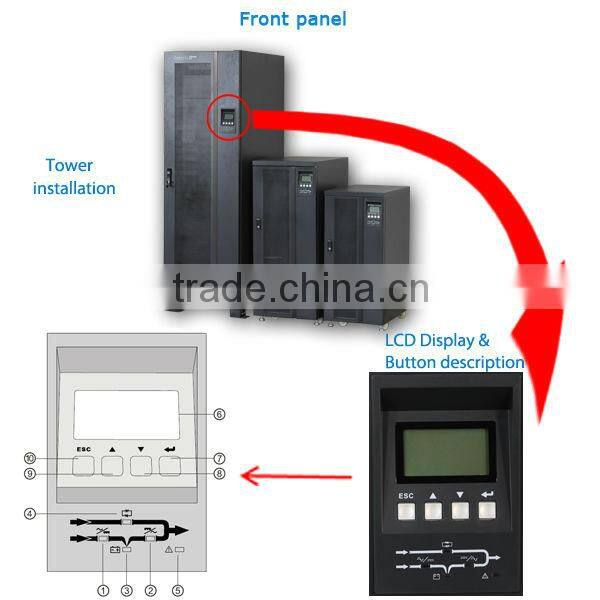

Indicator of LCD Display
Status LED Indicator: Display the current UPS operating mode or status.
| Identifier | LED Indicator | Color | Status |
| (1) | AC | green | UPS is powered dorectly by AC |
| (2) | Inverter | green | UPS is powering through the inverter |
| (3) | Battery | yellow | Line input fault,UPS is powering by batteries |
| (4) | Bypass | green | UPS is powering the load by AC through bypass |
| (5) | Fault | red | LED will solid on with continuous warning tone or flash with intermissing tone in case of UPS abnomal function |
LCD display screen- (6): Display detailed UPS function
Function Keys: selecting and opening menu items, accessing information and changing system parameters etc.
| Identifier | Name | Funtionn |
| (7) | Confirm/Enter | Select a menu of confirm an operation; confirm the present input password letter and enter the next password letter input process;back to the main menu from the status screen |
| (8) | Page Down | Switch to next screen display under the same menu |
| (9) | Page Up | Return to last cscreen display under the same menu |
| (10) | Escape | Return to previous menu or cancel a certain operation;cancel the input password;back to the status screen from the main menu |
Customer Feedback
Our R&D team have tested your UPS, they are satisfied with the performance of the sample. All the test results are complying with the specification. We are highly appreciated it.
--- N. Raja (from Chennai, India)
We are quite impressive with the IGBT function of this UPS. We are now trying to apply this model on our telecommunication systems.
--- Robert Alles (from Munich, Germany)
Order information
Trade term: FOB Shenzhen / Hongkong
Delivery time: 7-21 days after confirmed the order
Packaging Detail: Standard export carton or OEM package
Warranty
1 years since the date of purchase
Warranty term
1. Under the terms of this warranty, if failure occurs under normal usage within warranty period, Helior Technology will provide free maintenance based on the proof-documents.
2. If Failure or damage occurs due to incorrect operation, wire connection, or any other mis-opeartions, Helior Technology will provide pay maintenance on charge basis.
More detailed info for family UPS & Inverter, please do not hesitate to inquiry now!
