Specifications
We can produce 50mm2 welding cable according to popular international standards such as ASTM, BS, DIN, NF &AS/NZ also
WELDING CABLE
- Welding cable Description

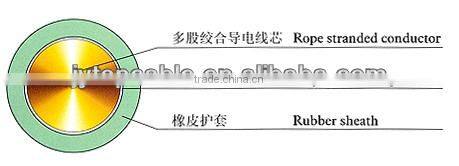

Construction: Class 5 flexible plain copper conductor, rubber insulated cable (or PVC insulated and PVC sheathed cable, PVC insulated is for some special countries only)
Chinese Type |
Description |
Core qty |
Conductors range |
YH |
Natural rubber sheath for welding cable |
1 |
10~240mm2 |
YHF |
Horoprene rubber or other syntheitic sheath welding cable |
1 |
10~240mm2 |
- Welding cable Applications
Secondary voltage resistance welding leads in heavy duty or mining applications
Power supply applications not exceeding 600 volt AC
- Welding cable Manufacturing standards
IEC 60245 and Chinese National Standards GB5013
We can produce above cables according to popular international standards such as ASTM, BS, DIN, NF &AS/NZ also.
- Welding cable Main technical data
4.1 Welding cables to IEC 60245
|
Nominal section area(mm2) |
No./diameter of stranding(mm) |
Nominal sheath thickness (mm) |
Overall diameter(mm) |
Max. conductor resistance at 20°C(Ω/km) |
||
Min. |
Max. |
Without tinned |
With tinned |
|||
10 |
322/0.20 |
1.8 |
7.5 |
9.7 |
1.91 |
1.95 |
16 |
513/0.20 |
2.0 |
9.2 |
11.5 |
1.16 |
1.19 |
25 |
798/0.20 |
2.0 |
10.5 |
13.0 |
0.758 |
0.780 |
35 |
1121/0.20 |
2.0 |
11.5 |
14.5 |
0.536 |
0.552 |
50 |
1596/0.20 |
2.2 |
13.5 |
17.0 |
0.379 |
0.390 |
70 |
2214/0.20 |
2.4 |
15.0 |
19.5 |
0.268 |
0.276 |
95 |
2297/0.20 |
2.6 |
17.0 |
22.0 |
0.198 |
0.204 |
120 |
1702/0.30 |
2.8 |
19.0 |
24.0 |
0.161 |
0.164 |
150 |
2135/0.30 |
3.0 |
21.0 |
27.0 |
0.129 |
0.132 |
185 |
1443/0.40 |
3.2 |
22.0 |
29.0 |
0.106 |
0.108 |
240 |
1908/0.40 |
3.8 |
25.0 |
35.0 |
0.0801 |
0.0817 |
4.2 Welding cables to ASTM standard
|
Size (AWG) |
Nominal stranding |
Nominal overall diameter |
Approx. net weight (LBS/1000ft) |
Max. conductor resistance at 20°C(Ω/km) |
||
AWG |
mm |
inch |
mm |
|||
6 |
259/30 |
259/0.254 |
0.430 |
10.92 |
152 |
1.33 |
4 |
418/30 |
418/0.254 |
0.475 |
12.07 |
215 |
0.84 |
2 |
646/30 |
646/0.254 |
0.540 |
13.72 |
296 |
0.53 |
1 |
836/30 |
836/0.254 |
0.580 |
14.73 |
360 |
0.42 |
1/0 |
1032/30 |
1032/0.254 |
0.615 |
15.62 |
424 |
0.33 |
2/0 |
1290/30 |
1290/0.254 |
0.655 |
16.64 |
513 |
0.26 |
3/0 |
1672/30 |
1672/0.254 |
0.720 |
18.29 |
644 |
0.21 |
4/0 |
2066/30 |
2066/0.254 |
0.780 |
19.81 |
824 |
0.17 |
