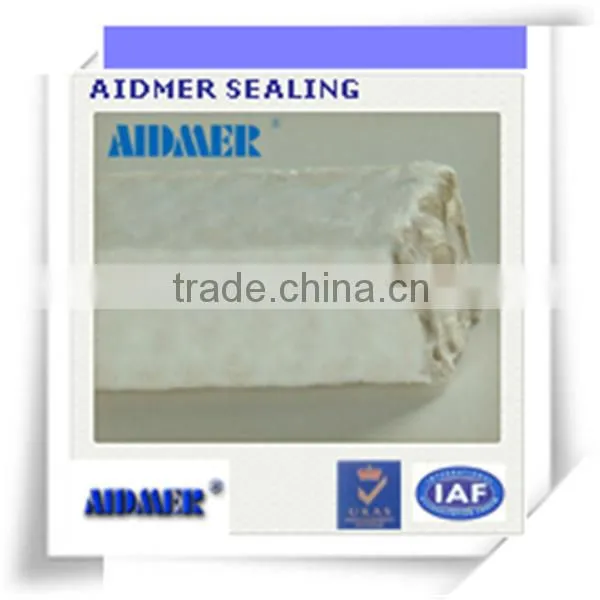

Aidmer76-030Ramie Packing with PTFE
Material: Ramie fibre, impregnated with PTFE emulsion, and lubricant.
Application Areas:
Style Aidmer76-030 Ramie Fiber packing can be used in rotary , reciprocating pumps, valves. pulp and paper, marine industry.
Application Media:
Style Aidmer76-030Ramie Fiber packing is suitable for cold and hot water, hydrous solutions containing solids, cellulose slurry, brine, oils, greases etc.
Not suitable for:
acids and high concentrated lyes, oxygen.
Application Data:
|
Rotary |
Reciprocating |
Valve |
Pressure:bar |
25 |
80 |
140 |
Speed:m/s |
12 |
3 |
1.5 |
PH Range |
4 - 12 |
||
Temp. °C |
-50 to + 130 |
||
Stock Dimension: (Max. size: 4” square)
mm sq. |
4 |
5 |
6 |
7 |
8 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
18 |
19 |
20 |
22 |
24 |
25 |
M/kg.abt. |
44 |
28 |
20 |
15 |
11.4 |
7.30 |
6.1 |
5.1 |
4.4 |
3.8 |
3.4 |
2.95 |
2.40 |
2.15 |
2.00 |
1.60 |
1.40 |
1.25 |
Inch sq. |
5/32 |
3/16 |
1/4 |
|
5/16 |
3/8 |
7/16 |
1/2 |
|
9/16 |
|
5/8 |
11/16 |
3/4 |
13/16 |
7/8 |
15/16 |
1 |
Ft/Lb.abt |
65.6 |
46 |
26 |
|
17.0 |
12.2 |
9.0 |
6.80 |
|
5.40 |
|
4.50 |
3.70 |
3.20 |
2.70 |
2.40 |
2.10 |
1.85 |
Packaging |
1kgs per coil |
2.5kgs per coil |
5kgs per coil |
|||||||||||||||
Note: 3/16"(Less than 7mm)are square braided construction.
(Other Packaging on your request)
2kgs, 5kgs 10kgs packed in spool, four boxes packed in outer carton and we promise ship the items out timely .
