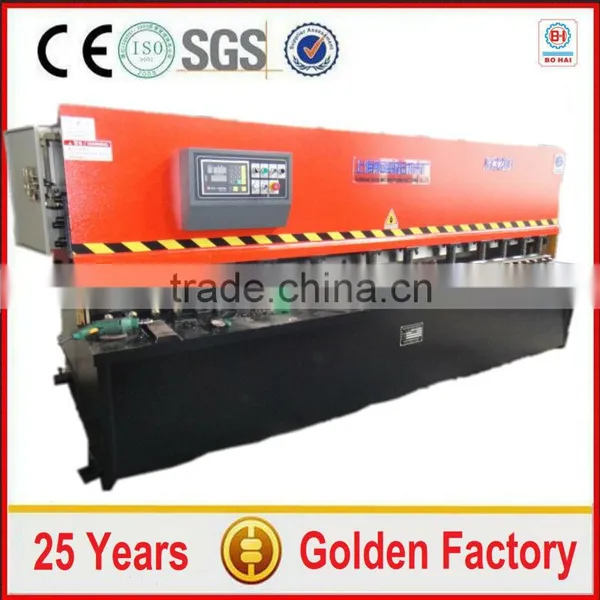

Help CenterHydraulic Shearing Machine Qc12y 8 x 3200
Related Products
-
Qc12y-12mm 13mm x 3200mm 3100mm Hydraulic Swing Beam Steel Plate ShearsUS$ 5,000 - 15,000MOQ: 1 Unit -
High Efficiency Easy to Operate Guillotine Cutter MachineUS$ 1,000 - 100,000MOQ: 1 Unit
-
Bohai Brand Popular Sold Qc12y-6x2500 Hydraulic Swing Beam ShearUS$ 5,000 - 15,000MOQ: 1 Unit
-
Best Selling China Hydraulic Shearing Machine Model Qc12y 6mm 10mm 13mm x 4000mmUS$ 5,000 - 18,000MOQ: 1 Unit
-
Hydraulic Guillotine Shearing Machine for Exporting to EuropeUS$ 5,000 - 15,000MOQ: 1 Unit
Specifications
EMB type fittingshydraulic shearing machine qc12y 8 x 3200
German Technology
Swing beam type
Low cost

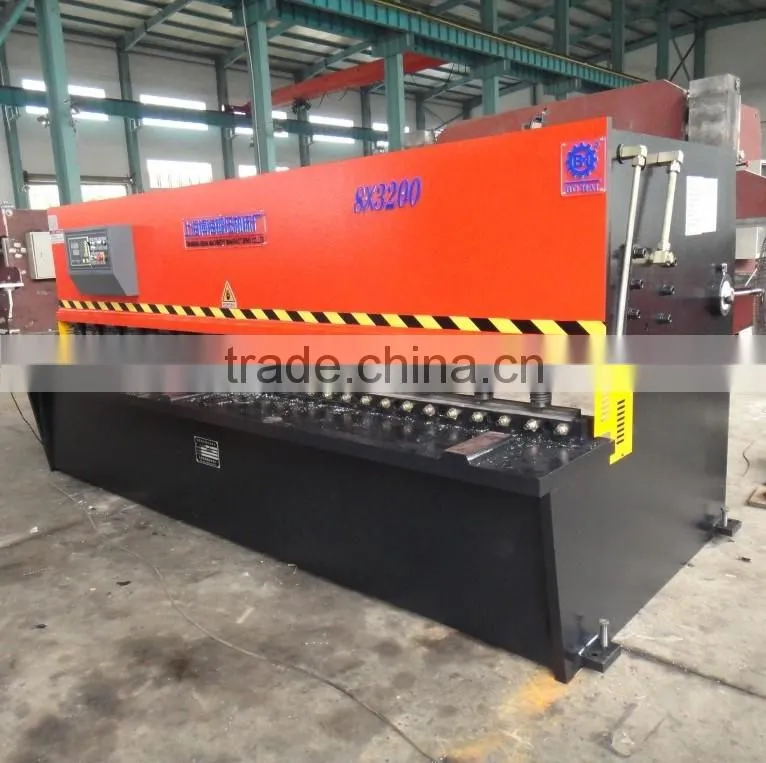

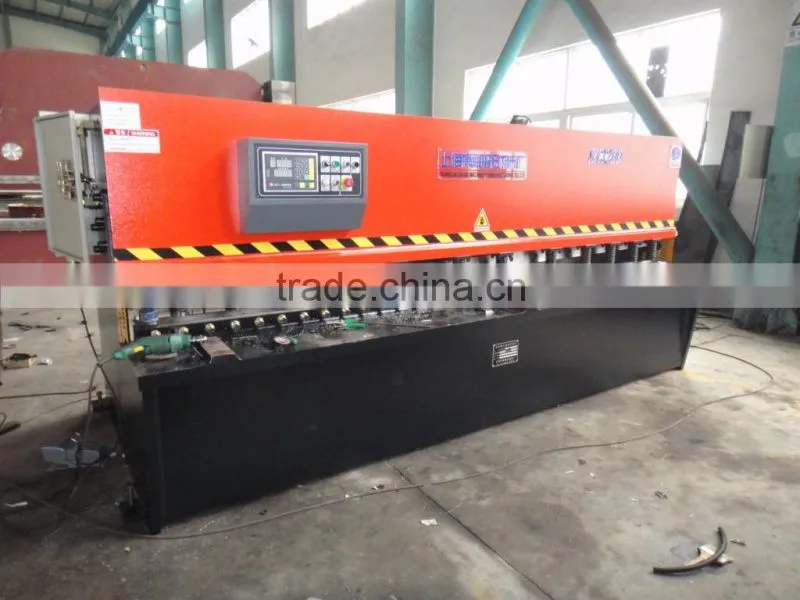

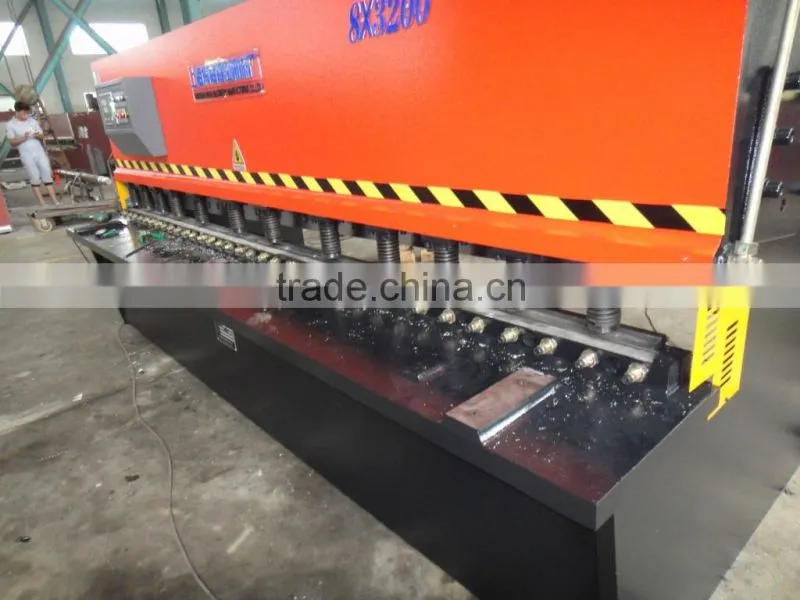

hydraulic shearing machine qc12y 8 x 3200
Characteristic and feature
1. Assisting blade pedestal on worktable is convenient for micro adjustment.
2. Rolling material support ball is provided on worktable, convenient operation.
3. Using stepless adjusting structure to regulate the gap of blades, adapt to different thickness and materials.
4. The adoption of four-side edge shearing blade prolongs the service life of blade.
5. Regulating shearing process not only increases the production efficiency but also achieve the function of segmentshearing.
6. It is provided with counting function for shearing to decrease the numerous artifical counting.
Major Parameters
Item |
Parameter value |
Unit |
Shearing length |
3200 |
mm |
Max cutting thickness |
8 |
mm |
Cutting angle |
1040' |
|
Clamping cylinder |
8 |
pieces |
Number of strokes |
15 |
Min-1 |
Depth of throat |
200 |
mm |
Back stopper stroke |
500 |
mm |
Motor power |
7.5 |
Kw |
Backgauge control:
The backgauge is controlled by the NC controller MD11-1:
It is with the following function:
* Programmable 10 jobs.
* Stroke counter function.
* Retract function.
* Power off Memorization
* X-axis Software Limitation
* Inch/MM.
Payment: 30% deposit on order; Balance 70% by wire transfer before shipment of machine
Other payment also acceptable, if customer required
Hydraulic shearing machine with customized red color
Motorised Blade Gap Adjustment(Option) Ballscrew Backgauge (Option)
Linear Guide Rail(Option)
