Specifications
EMB type fittingshydraulic swing beam shearing machine
German Technology
Programmable NC CONTROL
Export to Mexico 2500mm hydraulic swing arm cutting machine with CE certificate
Model QC 12Y 16 x 2500
1. Characteristic and feature
1. Assisting blade pedestal on worktable is convenient for micro adjustment.
2. Rolling material support ball is provided on worktable, convenient operation.
3. Using stepless adjusting structure to regulate the gap of blades, adapt to different thickness and materials.
4. The adoption of four-side edge shearing blade prolongs the service life of blade.
5. Regulating shearing process not only increases the production efficiency but also achieve the function of segmentshearing.
6. It is provided with counting function for shearing to decrease the numerous artifical counting.
2. Major Parameters
Item |
Parameter value |
Unit |
Shearing length |
2500 |
mm |
Max cutting thickness |
16 |
mm |
Cutting angle |
10 40' |
|
Clamping cylinder |
11 |
pieces |
Number of strokes |
10 |
Min-1 |
Depth of throat |
200 |
mm |
Back stopper stroke |
600 |
mm |
Motor power |
18.5 |
Kw |
Dimension(L x W x H) |
3140 x 2150 x 2000 |
mm |
3. Backgauge Position contol:

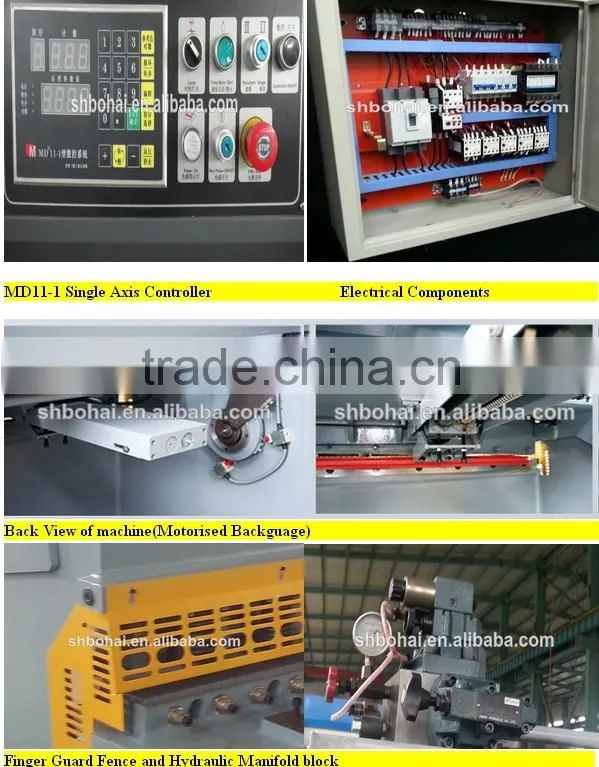

The backgauge is controlled by the NC controller MD11-1:
It is with the following function:
* Programmable 10 jobs.
* Stroke counter function.
* Retract function.
* Power off Memorization
* X-axis Software Limitation
* Inch/MM.
4. Payment: 30% deposit on order; Balance 70% by wire transfer before shipment of machine
Other payment also acceptable, if customer required
5. Machine Standard Equipment

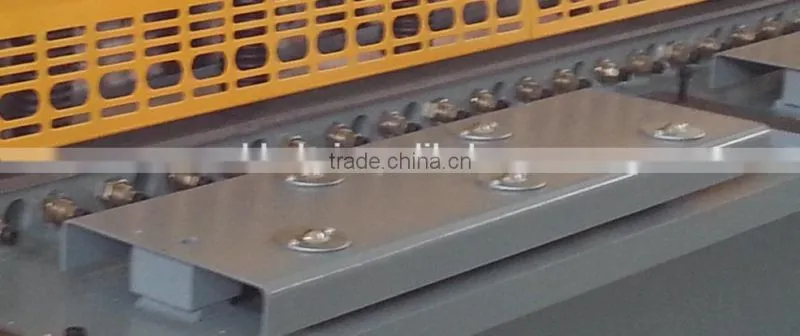

Ball Transfer working table
6. Optional Equipment

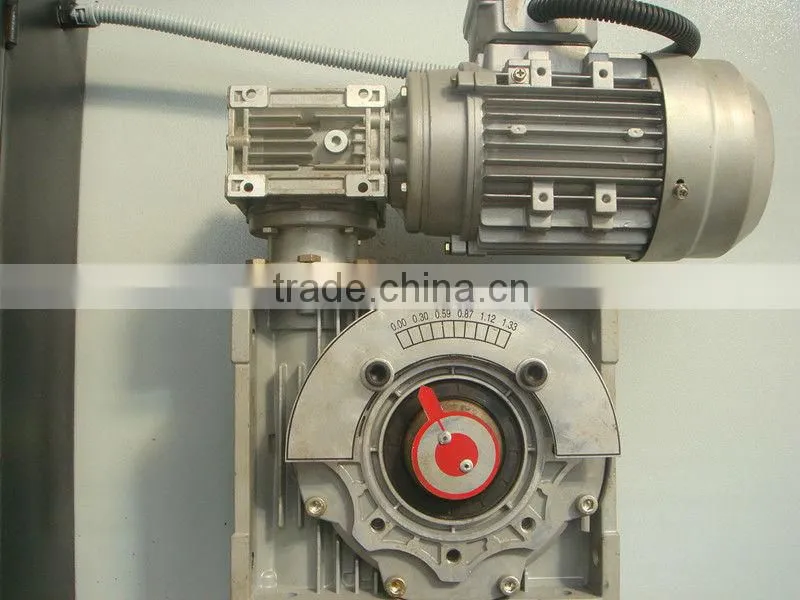

Motorised Blade Gap Adjustment(Option) Ballscrew Backgauge (Option)
Linear Guide Rail(Option)
7. DETAILED VIEW OF HYRAULIC SHEARING MACHINE

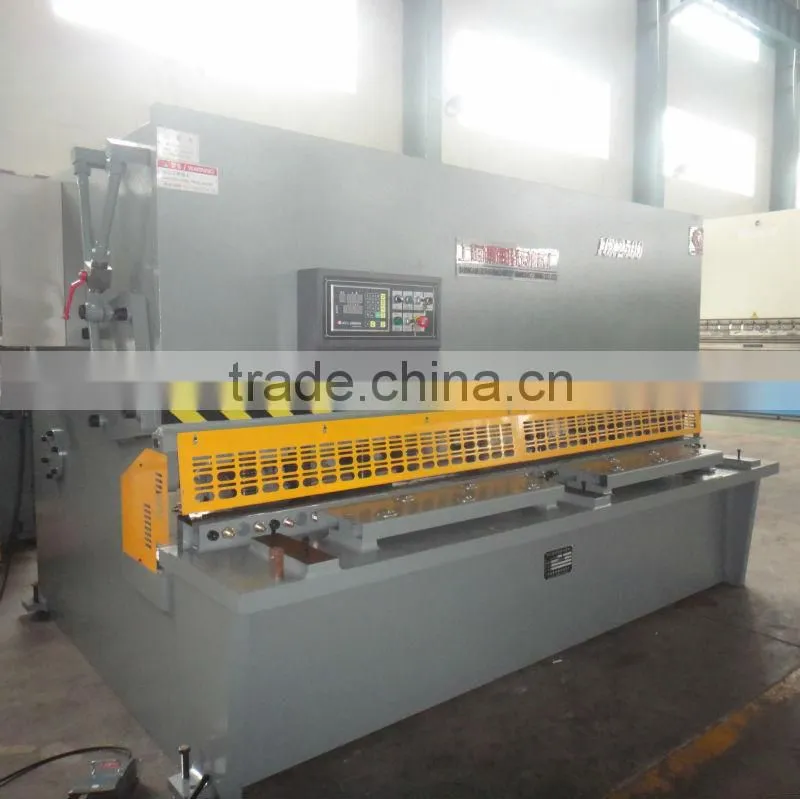

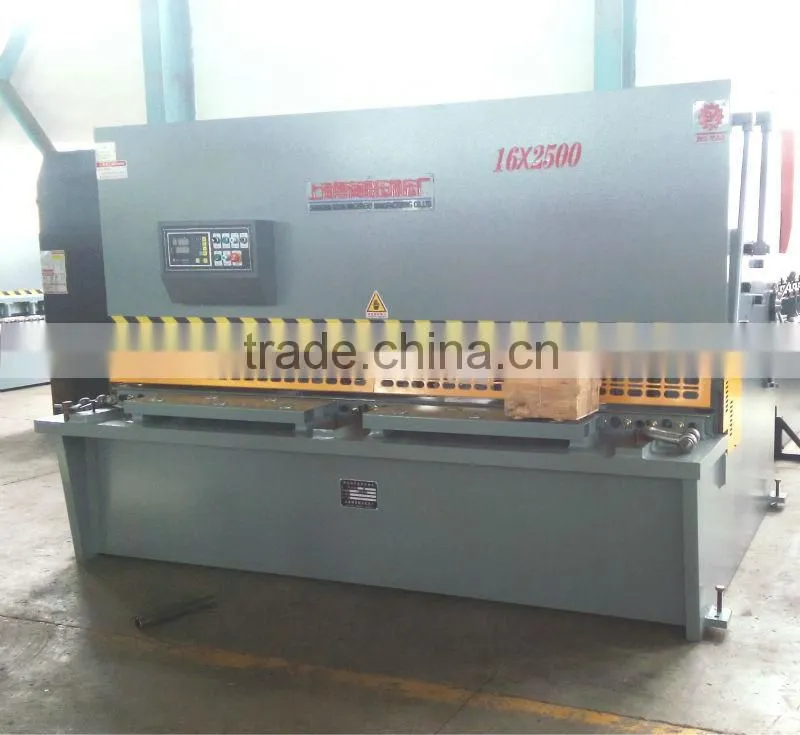

FRONT VIEW

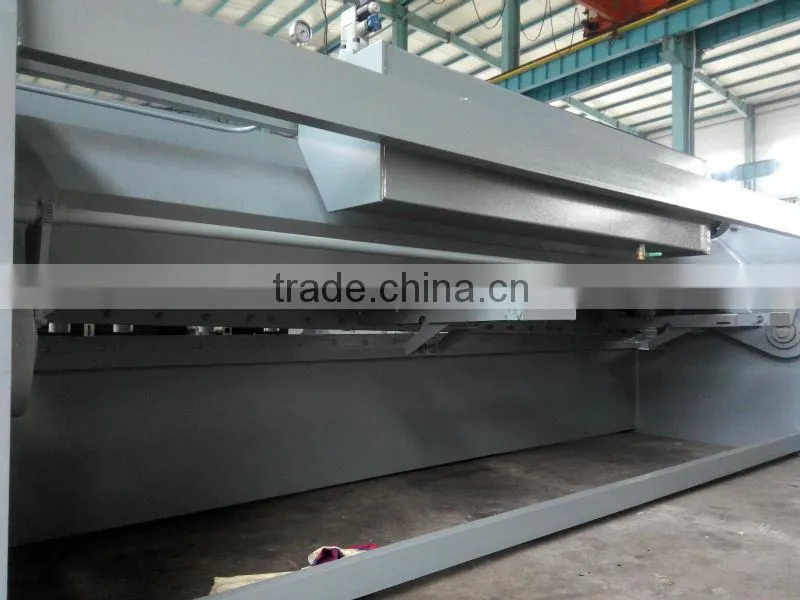

BACK VIEW

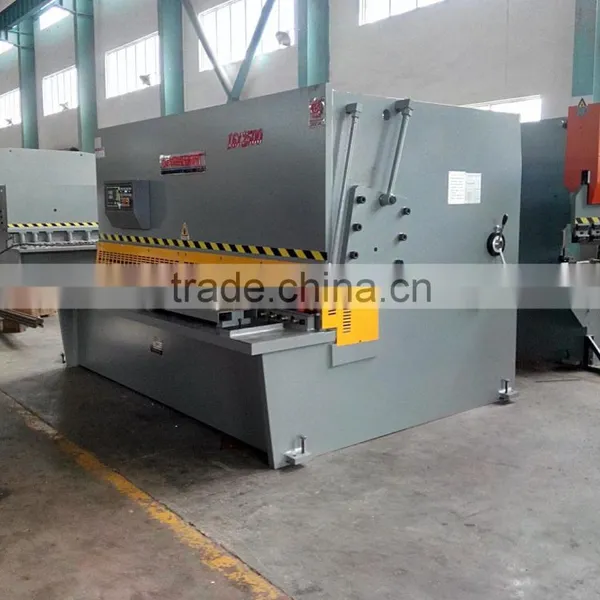

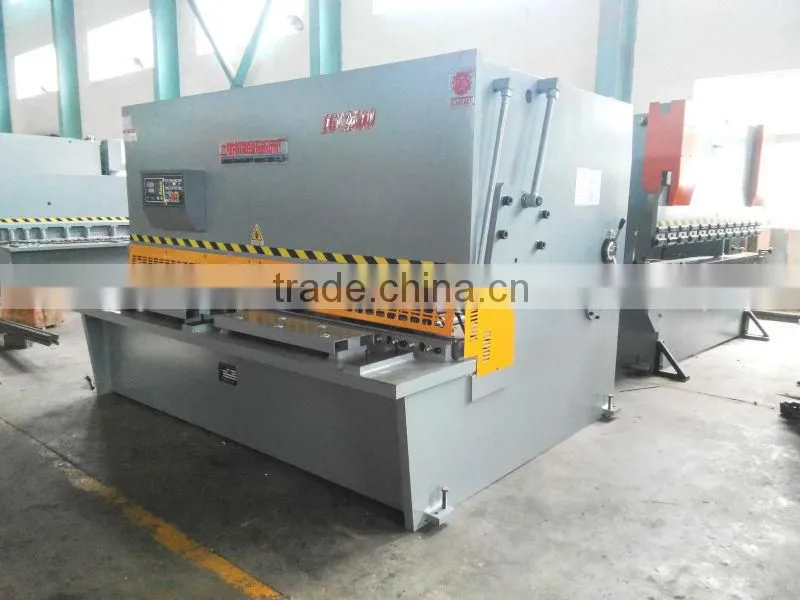

LEFT SIDE VIEW
RIGHT SIDE VIEW
