Specifications
EMB type fittingsSeals From NOK
German Technology
Swing Beam shear
easy to operate
Hydraulic pendulum plate shear machine,hydraulic plate shearing machine with 6mm cutting
Characteristic and feature
1. Assisting blade pedestal on worktable is convenient for micro adjustment.

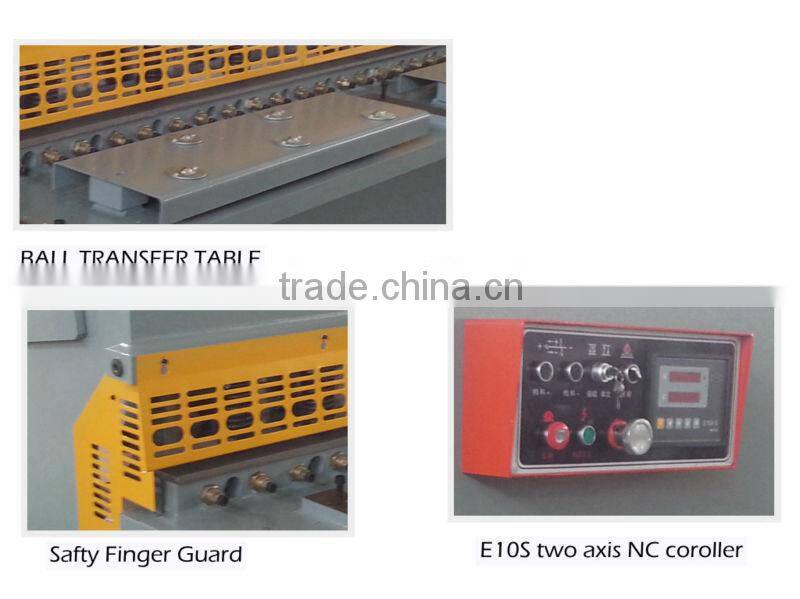

2. Rolling material support ball is provided on worktable, convenient operation.
3. Using stepless adjusting structure to regulate the gap of blades, adapt to different thickness and materials.
4. The adoption of four-side edge shearing blade prolongs the service life of blade.
5. Regulating shearing process not only increases the production efficiency but also achieve the function of segmentshearing.
6. It is provided with counting function for shearing to decrease the numerous artifical counting.
Major Parameters
Item |
Parameter value |
Unit |
Shearing length |
2500 |
mm |
Max cutting thickness |
6 |
mm |
Cutting angle |
10 30’ |
|
Clamping cylinder |
17 |
pieces |
Number of strokes |
15 |
Min-1 |
Depth of throat |
200 |
mm |
Back stopper stroke |
500 |
mm |
Motor power |
7.5 |
Kw |
Motorised Blade Gap Adjustment(Option) Ballscrew Backgauge (Option)
Linear Guide Rail(Option)
