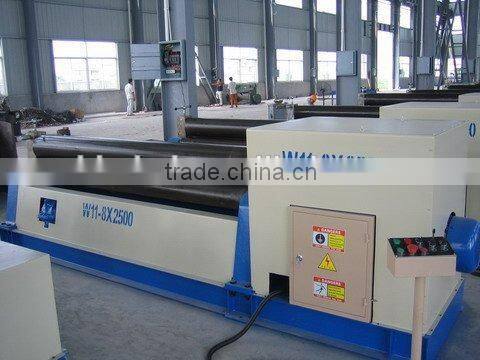

W11 MECHANICAL 3 ROLLER SYMMETRICAL ROLLING MACHINE

W11 MECHANICAL 3 ROLLER SYMMETRICAL ROLLING MACHINE thumbnail-1
W11 MECHANICAL 3 ROLLER SYMMETRICAL ROLLING MACHINE photo-1
US$ 100 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
BOHAI
Model Number:
MGHA/MSHA
Contact Supplier Request Quote Chat Now
Shanghai Bohai Machinery Manufacturing Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name BOHAI
Model Number MGHA/MSHA
Machine Type Roller-Bending Machine
Raw Material Steel Bar
Material / Metal Processed Stainless Steel
Power Cnc
Automation Automatic
Extra Services End Forming
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

W11 20 x 2500 mechanical 3 roller Symmetrical Rolling Machine



Main Chractrastics



1. The W11 is the latest evolution of the traditional three-roll double pinch plate-bending machine. It has been designed to cover the needs of the fabrication shop: Strength, User Friendliness, and Versatility.



2.The W11 series is the most precise 3-roll machine in its category. The RGS design reduces to a minimum the distance between the bending points guaranteeing higher bending accuracy.



3.The MCS bearing system, incorporating 4 independent bearings for each bending roll is a standard feature of the W11. It guarantees higher reliability (higher capacity of load absorption) and increases the range for tilting the side rolls, resulting in more versatility, when rolling cones.



4.The Ultra wide roll support with lubrication circuit is mounted within linear slides to prevent wear and tear.



5.Another important standard feature to increase the versatility of the machine is the roll shaft extensions to allow dies to     be fitted to bend profile and pipe.



6.The very high rotation power is a guarantee of the W11’s superior rolling torque and speed, available without loss of energy as all three rolls are driven independently by hydro-motors and gearboxes directly coupled to the rolls shafts.





Technical Date



Specification

Max Thickness of Coiled Plate

Max Width of Coiles Plate

Yielding Limit of Sheet Metal

Coiling Speed

Min Full
Loading Diameter
of Coiled Plate

Diameter of Top shaft

Diameter of Bottom shaft

Central distance between Bottom Shafts

Motor Power

Overall dimensions
mm mm MPa m/min mm mm mm mm

Kw

 mm
W11-4×1500 4 1500 245 5 300 150 140 185 3 2900×720×1000
W11-6×1500 6 1500 245 5 380 160 140 220 4 2900×720×1000
W11-6×2000 6 2000 245 4.5 380 170 160 260 5.5 3650×820×1050
W11-6×3200 6 3200 245 4.5 380 220 180 280 7.5 4850×1100×1100
W11-8×2000 8 2000 245 4.5 400 185 170 260 5.5 3700×820×1050
W11-8×2500 8 2500 245 4.5 550 240 180 280 7.5 4150×1100×1100
W11-12×2000 12 2000 245 4.5 550 240 180 280 7.5 36500×1100×1100
W11-12×2500 12 2500 245 4.5 600 260 220 320 11 4200×920×1200
W11 12×3000 12 3000 245 4 700 280 240 360 11 4900×1300×1300
W11-16×2000 16 2000 245 4 600 260 220 320 7.5 3700×920×1200
W11-16×2500 16 2500 245 4 700 280 240 360 11 4400×1300×1300
W11-16×3200 16 3200 245 4 850 340 260 430 15 5300×14000×1400
W11-20×2000 20 2000 245 4 700 280 240 360 11 3900×1300×1300
W11-20×2500 20 2500 245 4 850 340 260 430 15 4600×1400×1400
W11-25×2000 25 2000 245 4 850 330 270 430 15 4100×1400×1400
W11-25×2500 25 2500 245 4 900 370 270 480 22 5600×1550×2000
W11-30×2500 30 2500 245 4 1200 420 360 550 30 5760×1700×2110
W11-30×3000 30 3000 245 4 1200 450 390 600 37 5
