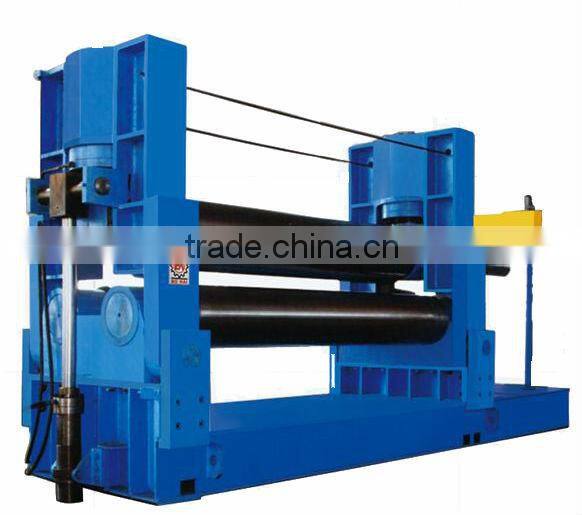

Help CenterHydraulic 3-rollers Symmetrical Rolling Machine
Related Products
-
W11S Hydraulic Upper Roller Universal Rolling MachineUS$ 10,000 - 100,000MOQ: 1 Unit -
W11Y 25x2500 NC Hydraulic 3-rollers Symmetrical Rolling MachineUS$ 10,000 - 100,000MOQ: 1 Unit
-
Hydraulic Rolling Machine, 4 Roll Plate Bending MachineUS$ 10,000 - 100,000MOQ: 1 Unit
-
4-roll Hydraulic Bending MachineUS$ 10,000 - 100,000MOQ: 1 Unit
-
4 Roll MachineUS$ 10,000 - 100,000MOQ: 1 Unit
Structure Characteristics
This machine belongs to hydraulic 3-roller plate rolling machine.
The top roller makes up-down movement and horizontal movement, the up-down movement is drove by the force of hydraulic oil in
hydraulic cylinder on the piston rod, it is fluid drive and the two lower rollers make rotation movement and it provide the torque for rolling plate though the gear mesh of reducer.
There are support rollers under the two lower rollers and the support roller can be adjusted; top roller is of drum shape, which can improve the straightness of products, and it is proper for various kinds of extra long section shape tanker.
The pre-bending is achieved by adjusting the top roller and makes it in asymmetrical position as opposed to lower roller.
Rolling of working piece is achieved by lower roller movement driven by a reducer. Due to the level of lower roller will not change, it is easy to feed the plate and operate
Main technical data:
| Model |
Max.rolling thickness mm |
Max.plate width mm |
Rolling speed m/min |
Min full loading diameter of plate mm |
Diameter of upper roller mm |
Diameter of lower roller mm |
Central diameter between bottom shafts mm |
Main motor power kw |
Hydraulic motor power kw |
|
W11Y 30*2000 |
30 | 2000 | 4 | 1200 | 360 | 290 | 480 | 7.5 | 22 |
W11Y 25*2500 |
25 | 2500 | 4 | 1200 | 370 | 300 | 480 | 7.5 | 22 |
|
W11Y 30*2500 |
30 | 2500 | 4 | 1200 | 420 | 360 | 550 | 11 | 30 |
|
W11Y 25*3000 |
25 | 3000 | 4 | 1200 | 430 | 370 | 550 | 11 | 30 |
|
W11Y 30*3000 |
30 | 3000 | 4 | 1200 | 450 | 390 | 600 | 11 | 30 |
|
W11Y 40*2500 |
40 | 2500 | 3.5 | 1400 | 500 | 400 | 600 | 15 | 37 |
|
W11Y 40*3000 |
40 | 3000 | 3.5 | 1600 | 540 | 440 | 600 | 18.5 | 45 |
|
W11Y 50*3000 |
50 | 3000 | 3.5 | 2000 | 580 | 480 | 750 | 22 | 55 |
|
W11Y 60*3000 |
60 | 3000 | 3.5 | 2400 | 660 | 560 | 800 | 30 | 75 |
|
W11Y 70*3000 |
70 | 3000 | 3.5 | 2800 | 710 | 620 | 850 | 37 | 90 |
| W11Y-80*3000 | 80 | 3000 | 3.5 | 3200 | 770 | 680 | 900 | 37 | 90 |
| W11Y-90*3000 | 90 | 3000 | 3.5 | 3600 | 820 | 730 | 950 | 45 | 110 |
|
W11Y 100*3000 |
100 | 3000 | 3.5 | 4000 | 860 | 770 | 1000 | 45 | 110 |
|
W11Y 110*3000 |
110 | 3000 | 3.5 | 4400 | 900 | 810 | 1080 | 55 | 132 |
|
W11Y 120*3000 |
120 | 3000 | 3.5 | 4800 | 950 | 860 | 1160 | 55 | 132 |
