Model |
BHDLZ1325 |
BLDLZ1330 |
BHDLZ1530 |
working area |
1300*2500mm |
1300*3000mm |
1500*3000mm |
working table |
serrated table |
||
Machine Structure |
Channel steel lathe bed/heavy duty |
||
Transmission model |
X,Y Taiwan Hiwin rack gear |
||
Guide way |
Imported round rail(square rail for option) |
||
Power |
8.5KW |
||
Cutting speed |
15-20m/min |
||
Cutting thickness |
Depend on current of plasma power source |
||
Repeat positioning accuracy |
±0.05mm |
||
Process precision |
±0.35mm |
||
File transfer mode |
USB interface |
||
Input voltage |
3 phase 380V |
||
Power supply |
Huayuan Power (USA Hypertherm for option) |
||
Plasma currency |
65A/100A/200A |
||
Control system |
FLMC-F2300A/Starfire/Stuart |
||
Software |
CAM---Duct |
||
Steel blade saw tooth mesa |
Ray plug drives 860 |
||
Working mode |
Non-contact arc |
||

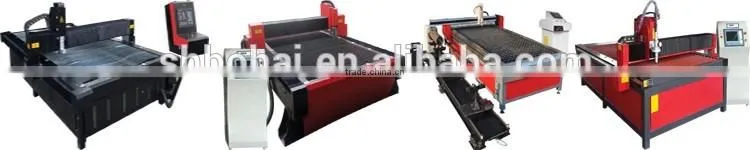

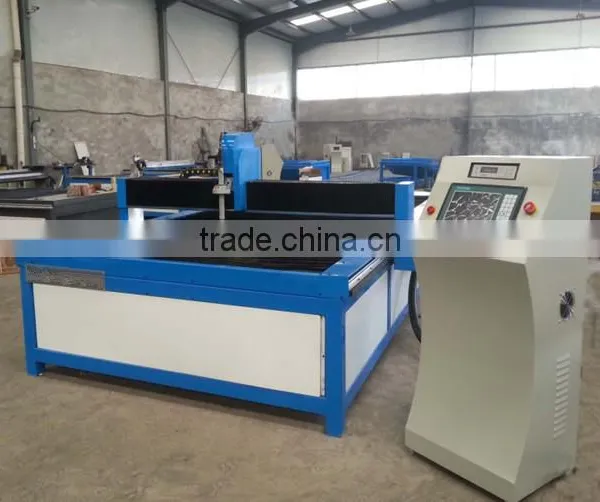

Brief Introducion of The duct plasma cutting machine
1.Reasonable and economical design:
One machine with plasma and flame torch,the cutting metal thickness less than 10mm,the plasma torch is the best choose,the thickness more than 10mm,the flame torch is the best choose.

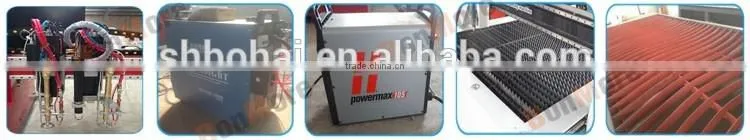

2. Huayuan plasma power supply(USA Hypertherm for optional), excellently performance,low failure rate, use more secure.
3.Blade and saw working table for choose, support heavy metal with high stability.

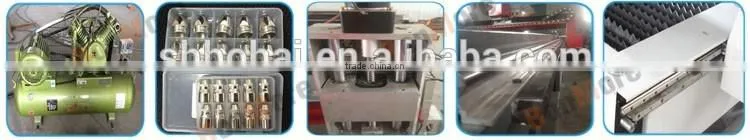

4.Air compressor make the conversion of mechanical energy into pressure gas energy ,then make the air clear with high performance
5.High quality nozzle electrode with long working life,cutting mouth is small, tidy,and avoid a second dressing processing
6.XY axis adopt rack gear,Z adopt Germany or Taiwan ball screw, XY axis orbit adopts HWIN/PIN liner rail, effectively guarantee the machine running accuracy. Y axis used dual-motor dual-driven system,X,Y,Z axis all use dual-straight rail that make the machine driving smoothly with high-precision.

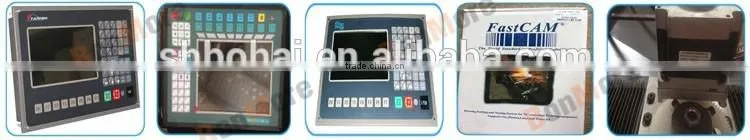

7.The numerical control system with high disposes, the automatic striking arc, the performance is stable.Start,Starfire,FLMC-F2300A can choose.Fastcam typesetting software can support ARTCAM,Auto-CAD etc. Design software
8.Stepper motor (servo for optional) cooperate with precision machinery transmission system, faster and more stable, higher cutting efficiency. CAM--duct

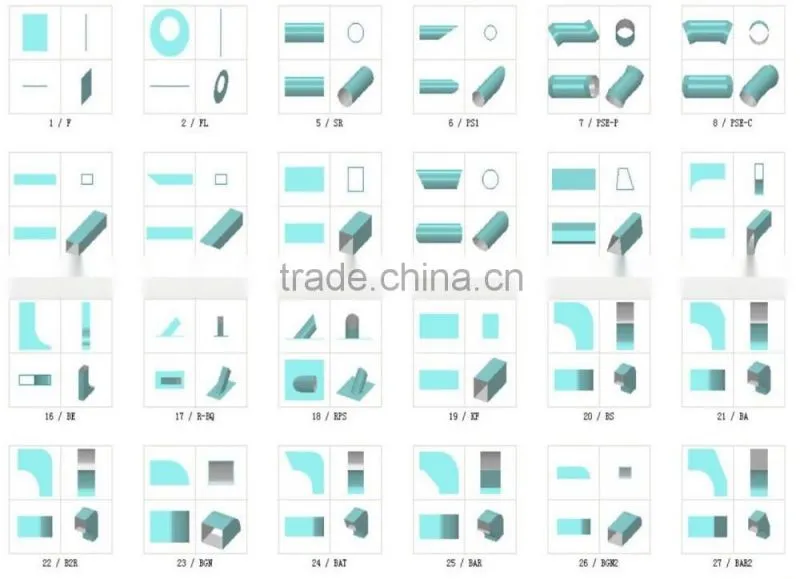

CAMduct is the total production solution that incorporates all the features necessary to efficiently control the manufacturing of duct work components. The software is the perfect choice for use in HVAC, dust extraction, industrial ventilation, nuclear, marine & offshore sectors; plus other similar applications. From the extensive database of fittings through to automatic nesting and management information, CAMduct provides the tools to meet manufacturing deadlines and improve productivity.
Applicable industry and materials
It be widely applied in industries such as machinery, automobile, shipbuilding, petrochemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc , suitable materials like iron, aluminum, titanium plate, stainless steel plate, galvanized steel, white steel and other metal materials.
Ductcam plasma cutting machine features
1.Welded lathe bed of thick profiled steel, more solid and stable.
2.Perfect lathe table design, 10mm steel plates fixed on lathe table covered by cast sheath.The level difference of platform remains in 0-1.5mm.
3.Advanced material inclined discharging design.
4. CNC system configuration high, automatic arc, stable performance, the success rate of 99% arc.
5. Plasma torch power supply and supporting all famous brands, a number of national patents by the manufacturers.
sample
FAQ
Q1:Can you recommend a plasma machine to me ?
Yes, In order to give you a suitable plasma machine,pls tell me the max working area, materials for processing and the thickness for materials processing engraving or cutting. Then perfect suitable plasma machine will be recommended
Q2:When the machine can’t work well,What should I do?
1. Engineer is online for 24-hours, they can check the problems and then give you a solutions in two hours.
2.ourmachine is with one’s year warranty, If any problems of machine parts under “normal use”,new machine parts will be sent by air In free
3.Please rest assured that operation CD and manual will be offered along with machine,making you can operate the machine easily.
certificate
Warranty and Service
1 .One year for the whole machine directly from factory will be provided at its
EX factory price for customers purchased our machine
2 .24 Hours technical support by email or calling,User friendly English manual and Video CD for
Machine operation and maintain
Trade information
Price terms:FOB Qingdao,Shanghai,Tianjin,CIF Your port,DDU/DDP your address Or as your
requirement
Payment terms:T/T,L/C,Western Union,MoneyGram,Escrow etc.
MOQ:1 set
Delivery time:5-7 working days
Package: free-fumigation wooden case for export
customer and exhibition

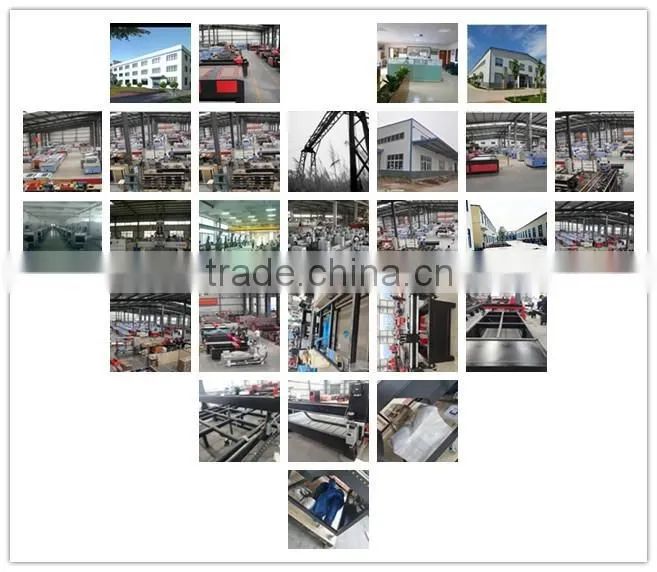

Our fatcory
