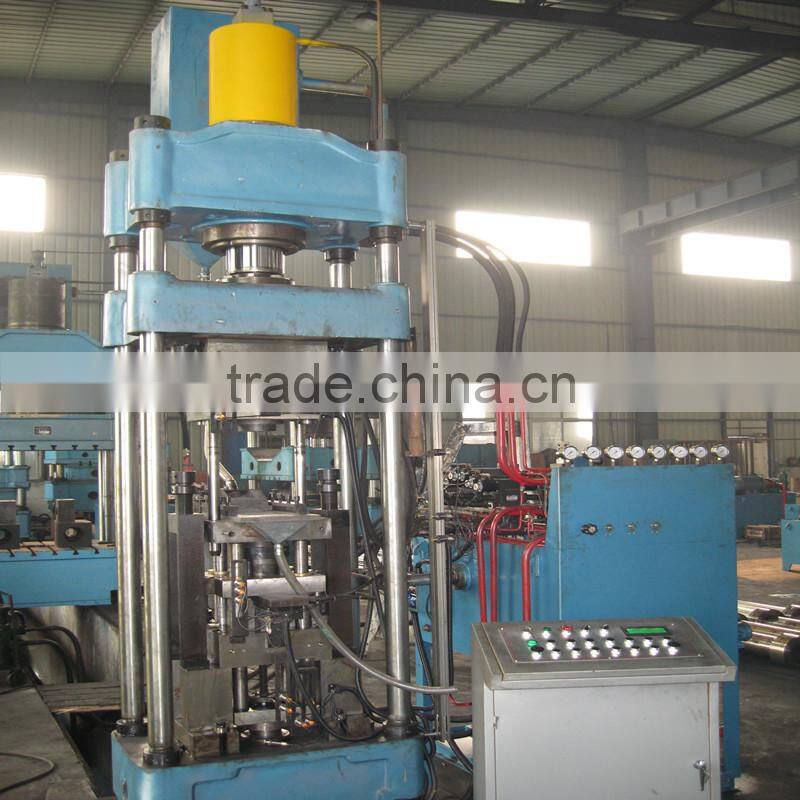

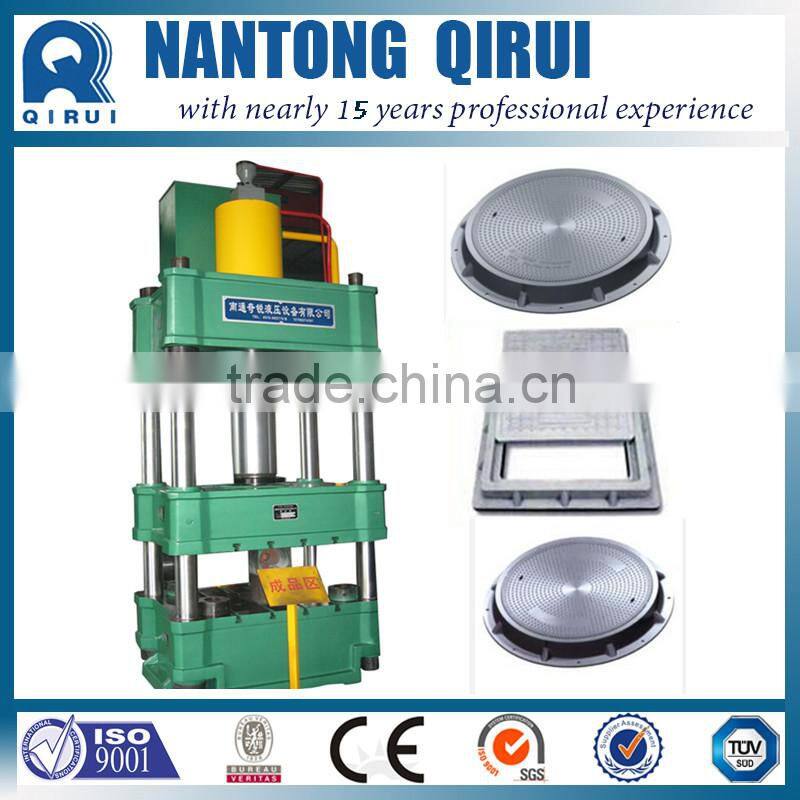

This series of hydraulic pressure molding machine is suitable for various kinds of dry powder products,it is equipped
with floating shelf, it can realize the synchronous bidirectional pressing forming process.

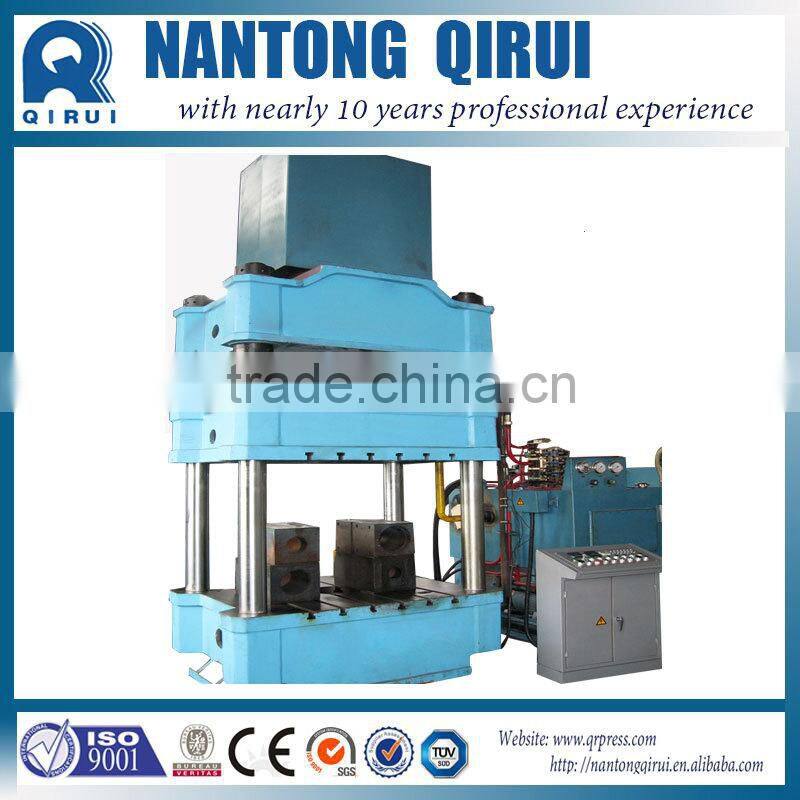

The series hydraulic machine includes four column type (type HP79Z) and frame type (HP79ZK type),with independent hydraulic and electric control system,centralized control buttons, can realize the constant pressure and constant process of two kinds of forming process, has the function of automatic pressure maintaining time delay and andreturn etc..
The release" process action program, completely suitable for multi step, special structure, mechanical parts of the powder products. Products with fly height, demoulding position and pressed product height using positioning mechanism,
and is equipped with a mechanical transmission device is convenient for the user to adjust, to ensure consistency of product performance and accuracy of repeat positioning.

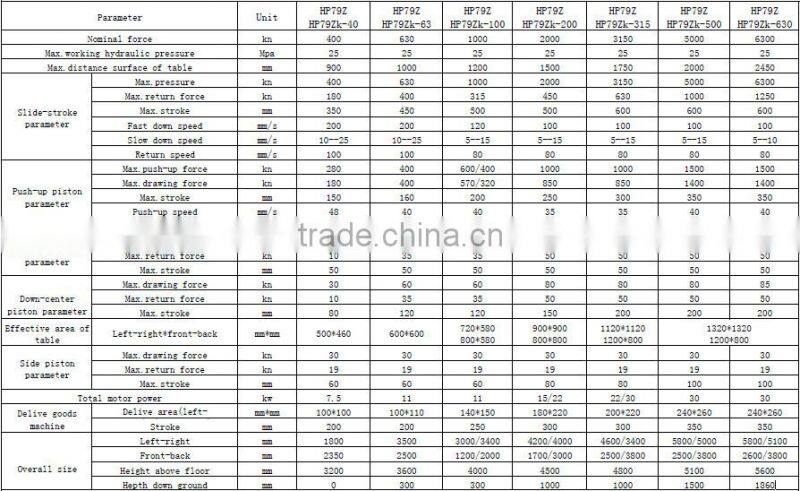

| Independent hydraulic and electric control pneumatic punching machine for multi step | |||||
| Slide stroke parameter | |||||
| ure | Max.return force | Max.stroke | Fast down speed | Slow down speed | return speed |
| 2000kn | 450kn | 500mm | 100mm/s | 5-155mm/s | 80mm/s |
| Push up piston parmeter | Nominal torce | ||||
| Max.push up force | Max.drawing force | Max.stroke | Push up speed | return speed | |
| 1000kn | 850kn | 250mm | 35mm/s | 45mm/s | 2000kn |
| UP center piston parmeter | Down center piston parmeter | ||||
| Max.drawing force | Max.return force | Max.stroke | Max.drawing force | Max.return force | Max.stroke |
| 80kn | 50kn | 50mm | 80kn | 50kn | 150mm |
| AT.piston parmeter | Delive goods machine | ing hydraulic pressure | |||
| Max.drawing force | Max.return force | Max.stroke | Delive area | Stroke | |
| 30kn | 19kn | 80mm | 180×220mm | 300mm | 25Mpa |
| Overall dimension | Max.distance surface of table | Total motor power | |||
| L-R | F-B | Height above ground | Height down ground | ||
| 4200/4000mm | 1700/3000mm | 4500mm | 1000mm | 1500mm | 15/22kw |
recommend products
| Packing | Carton, Pallet or In nude | |
| Detail accordance with the actual dimension. | ||
| Shipping | Time of Delivery | Within 20-90days after make deposit. |
| Shipping Terms | Seaway or Airway. |
|
Why you choose us?
1.Combination of production and trade
2.Strong design team
3. Competitive price
4. Fast delivery time
5. Oversea after-sales service
About the price
1. Do you have a competitive price?
Of course, we have. Have a try, you will know it.
2. How can I get the discount?
The discount is up to your order quantity. Small order will have higher price.
Your rolling order can help you get a bigger discount.
Delivery time, material, length of warranty and the weather need inspections all will influence the price.
About the payment
| NO. | Image | Terms | Details |
| 1 | |
Western Uinon | 40% at Sight and The Balance Payable Before Shippment |
| 2 |
|
T/T | |
| 3 | L/C | Full Persent of The Total Amount | |
| 4 | |
Ali Express |
About the MOQ
1. What is your MOQ?
To our old customers, there is no MOQ. 1PCS, 5PCS, 10PCS… IS OK.
If you are a professional purchaser or specialize in hydraulic press, we can do very small quantity for you. 1pcs or 5pcs.
We hope there will be a bigger one after that. Then there will not be MOQ to you.
About the delivery Time
1. Usually, it is 20-90 days. According to your quantity.
2. Your urgent order is acceptable, But the price will be litter higher than normal.
About our factory local In
1.Where is your company?
Our factory locates in Nantong near Shanghai.
2.How can we get there?
You can only arrive at shanghai and we can go there to pick up you to our company to make a visit.
