Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Hydraulic | Place of Origin | Jiangsu, China | |
| Brand Name | QiRui | Model Number | HP28-100/160 | |
| Voltage | as requirement | Power(W) | 15kw | |
| Weight | as requirement | Dimension(L*W*H) | as requirement | |
| Certification | ISO CE SGS BV | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
The series hydraulic machine is fully applicable to the stretching langing bending of metal sheet products.

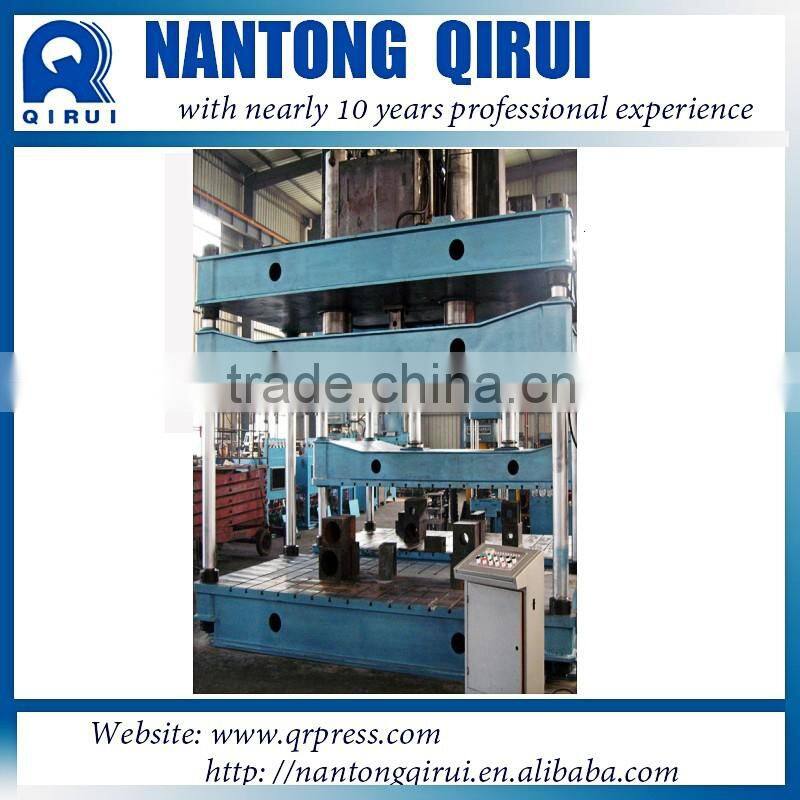

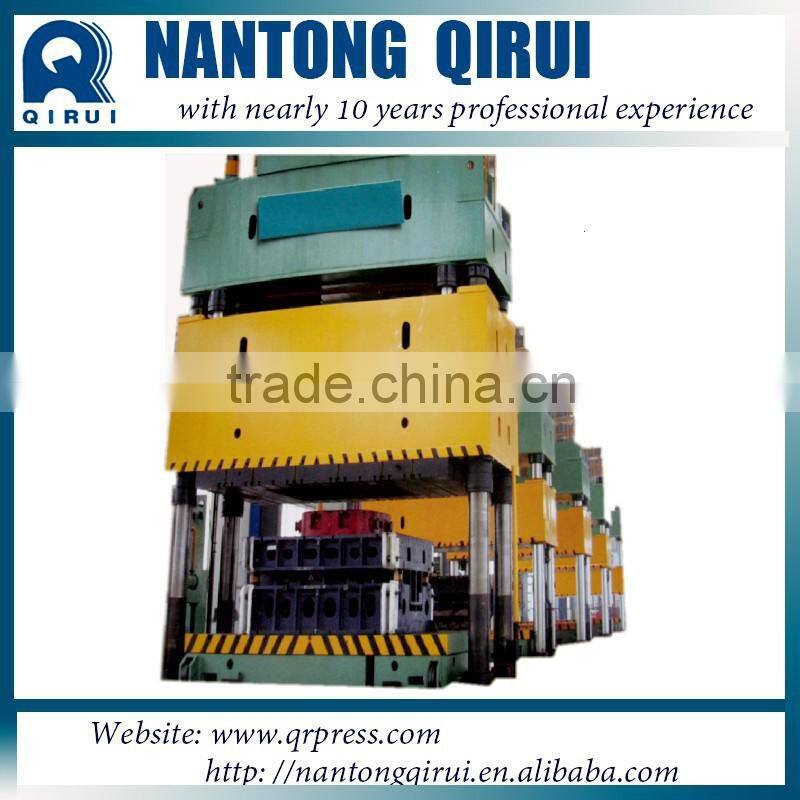

This series of hydraulic has four beam four column type (HP28 type)and the framework of double block type (HP28K type) , two blocks can work independently and work together.the machine is used in forming the metal sheet to products, and it also meet the requirements of other products’suppression of molding .
The machine has independent hydraulic and electric control system, it use centralized control buttons and can realize the constant pressure and constant process of two kinds of process, it has the adjustment, manual and semi - automatic mode of operation, the pressure and stroke can be adjusted within a predetermined range.

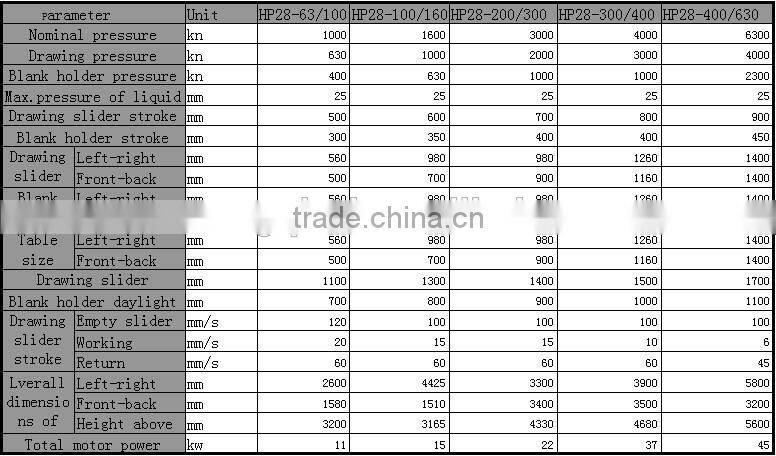

| HP28-100/160 Series Double Action Hydraulic Drawing Press | |||||
| Nominal torce | Drawing fora | Blank holder stroke | ure of lipuuid | Drawing slider storke | Blank holder stroke |
| 1600kn | 1000kn | 400kn | 25Mpa | 600mm | 350mm |
| Drawing slider size | Blank holder size | Table dimensions | |||
| L-R | F-B | L-R | F-B | L-R | F-B |
| 980mm | 700mm | 980mm | 700mm | 980mm | 700mm |
| Drawing slider size | Overall dimensionsof the machine | ||||
| Empty slider down | Working | Return | L-R | F-B | Heinght above ground |
| 100mm/s | 15mm/s | 60mm/s | 4425mm | 1510mm | 3165mm |
| Drawing sliler daylight | Blank hoder daylight | Total motor power | |||
| 1300mm | 800mm | 15KW | |||
| Packing | Carton, Pallet or In nude | |
| Detail accordance with the actual dimension. | ||
| Shipping | Time of Delivery | Within 20-90days after make deposit. |
| Shipping Terms | Seaway or Airway. | |
