QiRui Brand Normal 380V 11KW Four Columns Hydraulic for ISO Certification

Name: QiRui Brand Normal 380V 11KW Four Columns Hydraulic for ISO Certification
Brand: QiRui
Availability: InStock

FOB Price

US$ 6,000 - 100,000 / Set

1 Set(Min. Order)

Port any port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Power Source	Hydraulic	Place of Origin	Jiangsu, China
Brand Name	QiRui	Model Number	HP28
Voltage	380V or customized	Power(W)	11KW
Weight	10T	Dimension(LWH)	260015803200
Certification	ISO; CE; SGS; BV	Warranty	24 months after delivery
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

This series of hydraulic press is fully applicable to the stretching langing bending of metal sheet products.And has four

beam four column type (HP28 type)and the framework of double block type (HP28K type) , two blocks can work independently and work together.the machine is used in forming the metal sheet to products, and it also meet the requirements ofother products’suppression of molding .

The machine has independent hydraulic and electric control system, it use centralized control buttons and can realize the constant pressure and constant process of two kinds of process, it has the adjustment, manual and semi - automatic mode of operation, the pressure and stroke can be adjusted within a predetermined range.

The series hydraulic press equipped with accessories for customers to choose :

• Mobility workbench

• Hydraulic damping system

• Screen safety protection device

• Displacement sensing device

• Knock-out device

• Quick die clamping mechanism

• Rail lubricate device

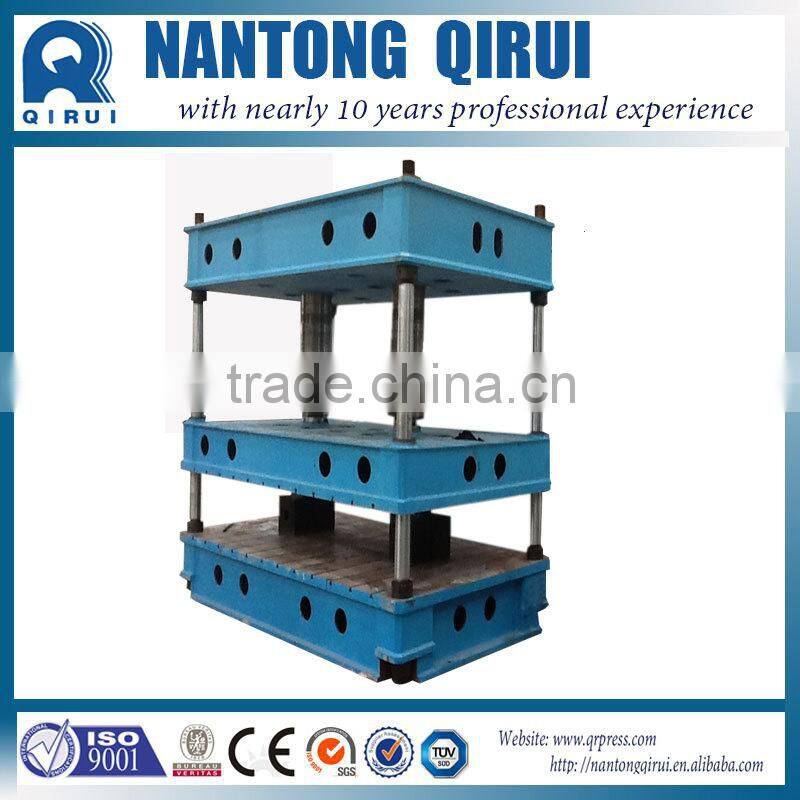

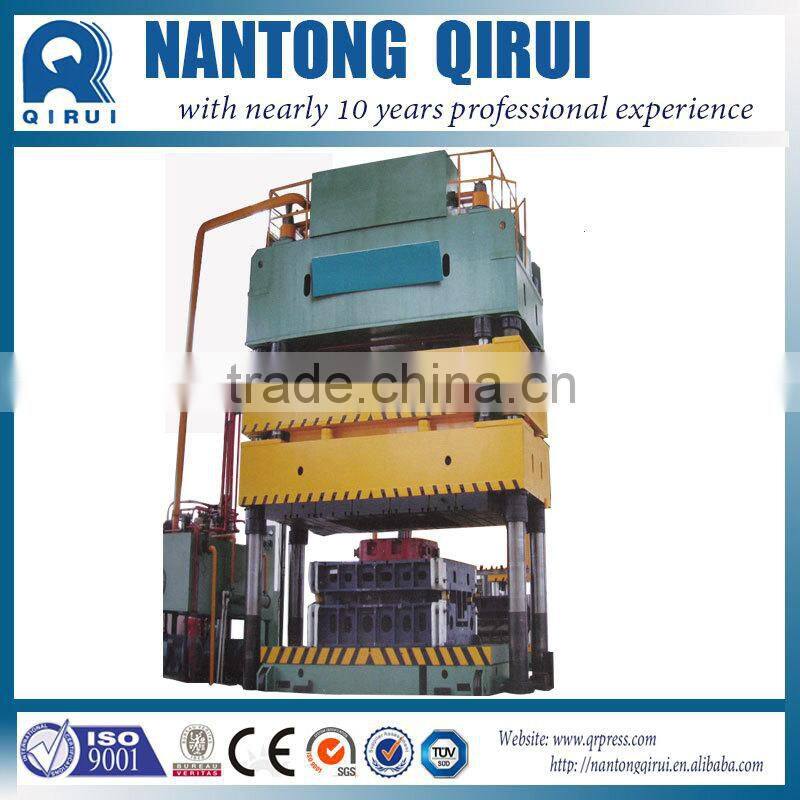

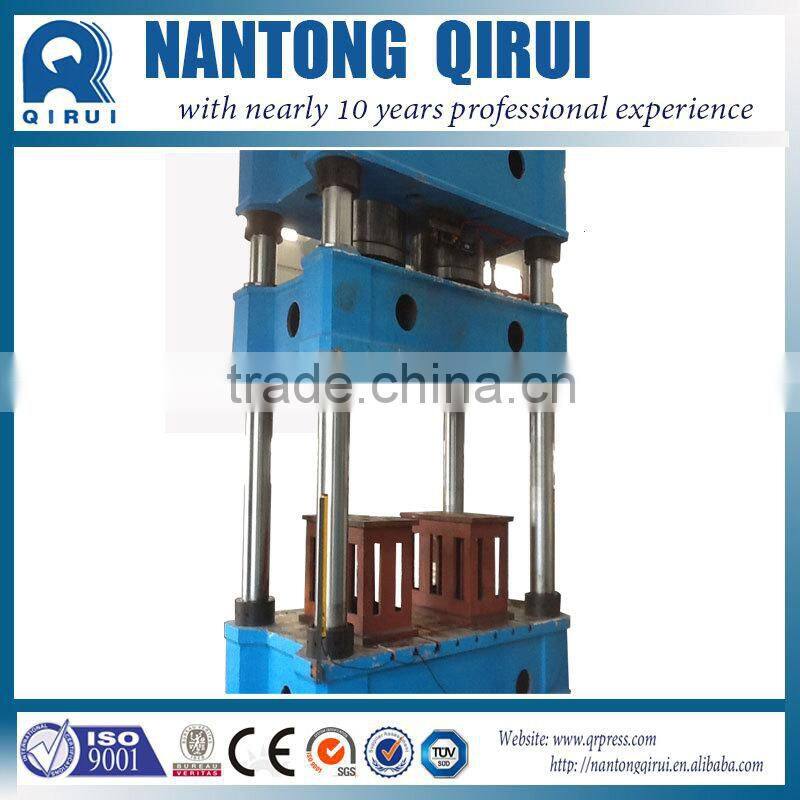

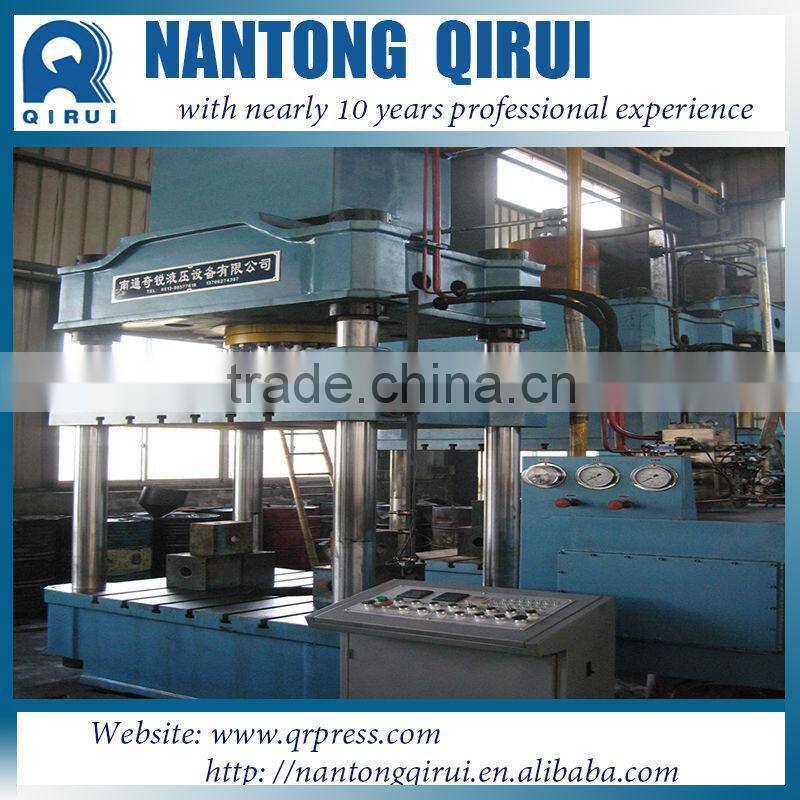

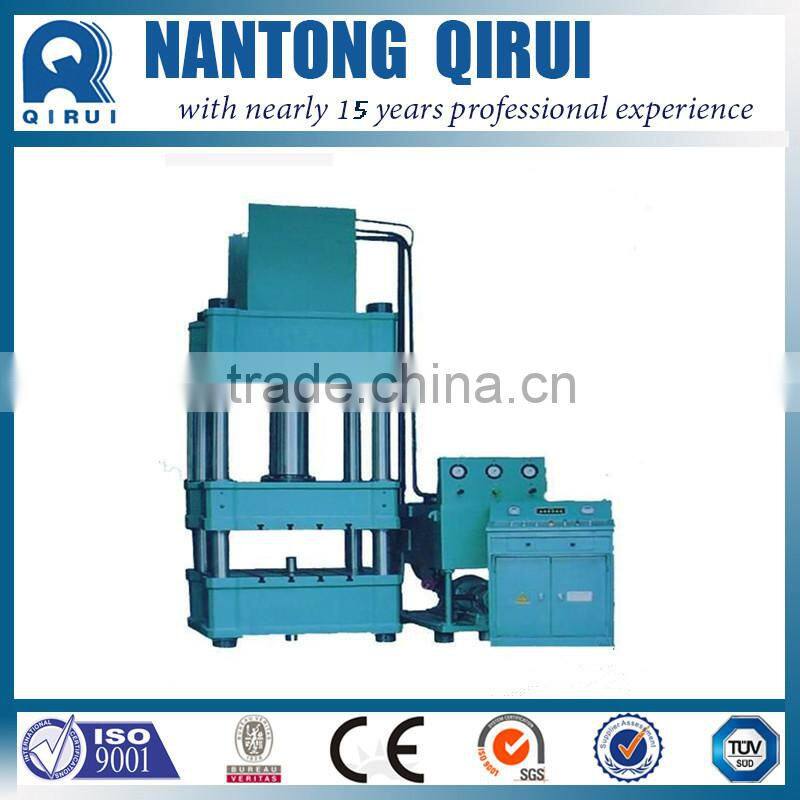

QiRui Brand Normal 380V 11KW four columns hydraulic for ISO Certification

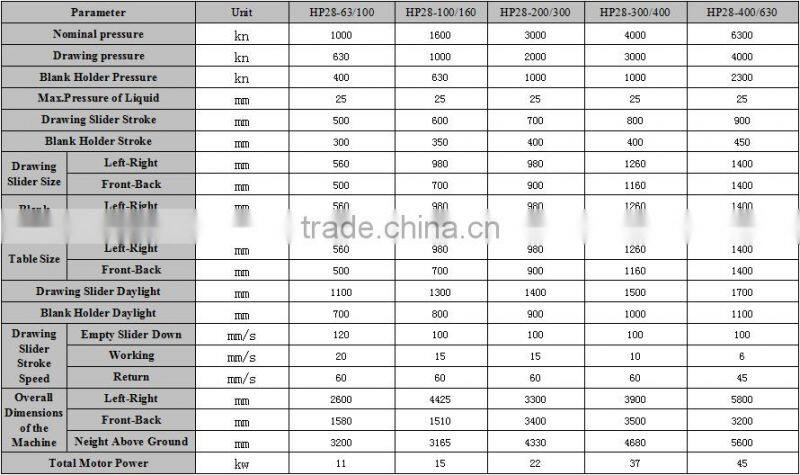

Nominal Force	Drawing Fora	Blank Holde Force	Max.Pressure of Liquid	Drawing Slider Strock	Bland Holder Size
3000 kn	2000 kn	1000 kn	25 Mpa	700 mm	400 mm
Drawing Slider Stroke Speed			Overall Dimensions of Machine
Empty Slider Down	Working	Return	Left to Right	Front to Back	Height Above Ground
100 mm/s	15 mm/s	60 mm/s	3300 mm	3400 mm	4330mm
Drawing Slider Size		Blank Holder Size		Table Dimensions
Left to Right	Front to Back	Left to Right	Front to Back	Left to Right	Front to Back
980 mm	900 mm	980 mm	900 mm	980 mm	900 mm
Drawing Slider Daylight		Blank Hoder Daylight		Total Motor Power
1400 mm		900mm		22 kw

Related Model

Product Image

Recommend Products

Packaging & Shipping

Packing	Each industrial production 100T double-action series hydraulic press in one Carton, Pallet or In nude
	Detail accordance with the actual dimension.
Shipping	Time of Delivery	Within 20-90days after make deposit.
	Shipping Terms	Seaway or Airway.
