Home > Products > fruit & vegetable pre-processing machine > Date palm COLOR sorting machine

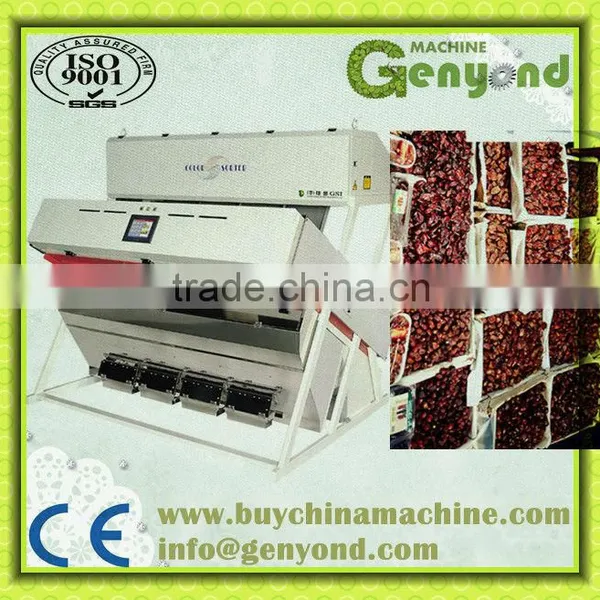

Date palm COLOR sorting machine
- 10 Set / Sets per Month
- SHANGHAI
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | GENYOND |
Model Number: | GY-CS438 | Type: | Sorter | Voltage: | 220/380V |
Power(W): | 3KW | Weight: | 1T | Dimension(L*W*H): | 1425X1518X1880MM |
Certification: | ISO9001 | Warranty: | 1 YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
WOODEN BOXES
Product Description
Specifications
Product Detail Company Profile Report Suspicious ActivityProduct DescriptionPackaging & ShippingOur ServicesCompany Informati
High Quality Color Sorting Machine
Advantage for GY color sorting Machine :
1. Advanced digital image acquisition system
A. Global advanced optical system design with various light resources and wide vision range to achieve optimum efficiency to recognize different materials.
B. Adopt 5000 pixel CCD sensor of high resolution and sensitivity to identify 0.04 mm2 minor defects.
C. Imported wide angle and large aperture customized industrial camera lens to ensure best image quality.
2. High frequency solenoid valve
A. Adopt famous Italian brand solenoid value/ejector which works 1000times/second and lower the air consumption rate 20%.
3. Automatic operation interface
A. Adopt famous Japanese brand display screen
B. Users can set different sorting models as per their requirement. More than 20 setting models can be saved for sorting different materials.
C. Automatic tracking and adjusting system, easy operation.
4. LED light resource application
A. Use LED lights with higher stability and longer usage life instead of fluorescent lamps.
B. A variety of light resources can be customized according to customer’s different demands.
5. Special intelligent image processing system
A. Ultra-fast processor to make efficient analysis and detection of the RBG signal feature of materials.
B. Based on FPGA+DSP hard ware system, powerful processing capacity to deal with large data operation. It can identify tiny spots or color difference, even smaller than 0.04 mm2.
C. Be able to synchronize multi-task, diversified sorting model independently on each group and capable of sorting color positively and negatively, sorting different colors at the same time as well.
D. Creative software algorithms, improved the sorting results perfectly.
6. Super computing and processing capacity
A. Great computing capacity to deal with large ultrafast operation.
B. Flexible processing capability, customizing a variety of image processing algorithms immediately.
Model | GY3000-G3A | GY3000-G4A | GY3000-G5A | GY3000-G6A |
Channels | 192 | 256 | 320 | 384 |
Capacity (t/h) | 2~5 | 3.5~7 | 4.5~8 | 5~10 |
Accuracy | >99.98% | >99.98% | >99.98% | >99.98% |
Waste | <1:0.125 | <1:0.125 | <1:0.125 | <1:0.125 |
Voltage(v) | ~220V 50Hz | ~220V 50Hz | ~220V 50Hz | ~220V 50Hz |
Power(kw) | 2.5 | 2.5 | 2.8 | 3.1 |
Pressure(M Pa) | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 |
Consumption(L/min) | 1200~3000 | 1200~3000 | 1600~3500 | 1800~3800 |
Weight(kg) | 900 | 1000 | 1200 | 1400 |
Dimension(L×W×H) | 1425×1518×1880 | 1725×1518×1880 | 2025×1518×1880 | 2325×1518×1880 |
Company Profile
Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
