Home > Products > fruit & vegetable pre-processing machine > frozen french fries production line
frozen french fries production line
- 100 Set / Sets per Month
- SHANGHAI
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | GY |
Model Number: | GY-9 | Type: | Cutter | Voltage: | 220V/380V |
Power(W): | 1KW | Weight: | 100KG | Dimension(L*W*H): | 660(L) * 560(W) * 900(H) |
Certification: | ISO9001 | Warranty: | 1 YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
WOODEN BOX
Product Description
Specifications
french fries machine1.it is more convenient to operate
2.low broken rate
uces labor time but improve output
Introduction of frozen french fries production line:
1. We offer turn key project of frozen french fries production line from capacity to 50kg per hour to 2000kg per hour.
2. It is more convenient to operate, adjustable and low broken rate, reduces
labor time but raises output.
3, We have rich experience on frozen french fries production line. Now our line has been installed in KSA, Algeria, tunis, Morocco,Zambia and so on.
No | Project | Contents | Remarks |
1 | Capacity | 2000Kg/h | Fresh potato |
2 | Processing time | 10-100min adjustable | Manual operation & frequency control |
3 | Feeding temperature | Room temperature |
|
4 | Width of conveyor belt | 750mm/650mm/1300mm | Wire belt / food grade PVC belt / quick-freezing machine belt |
5 | Blanching temperature | 80-100°C adjustable | Using screw peel and blanching |
6 | blanching required steam | 1.0 T/h | (0.4-0.7)Mpa |
7 | Air cooled | room temperature cooling & freezing cooling | |
8 | gas consumption for fryer | 25~35L/H | gas |
9 | Water consumption | Water supply first time around 20T | Sink water supply |
10 | Water consumption | About 5.0T/h | Mainly engaged in washing and peeling |
11 | Installed power | 284Kw | 380V/50HZ |
12 | Workshop space | 50meters in length and 10meters in width | |
13 | Number of operators | 6-7 peoples |

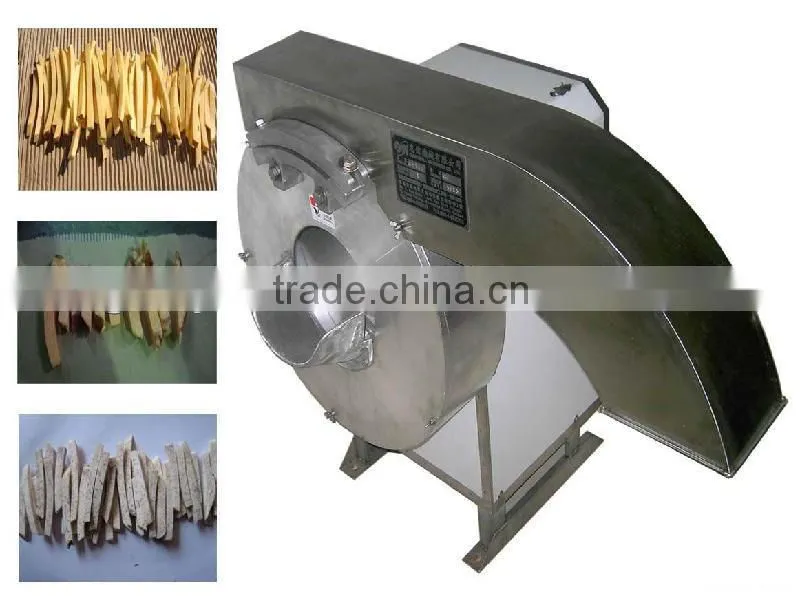

Technical parameters of french fries cutting machine:
Model | Capacity | Voltage | Motor Power | Weight | Size(mm) | Cut range(mm) |
GY600 | 600kg/h | 380V/220V | 1.1kw | 120kg | 800x600x1050 | 7x7~12x12 |
GY-400 | 400 kg/h | 380V/220V | 0.75kw | 65kg | 590*660*1115 | 6*6~10*10 |
1. process
Potatoes——de-stoner&cleaning——peeling——inspecting——cutting——grading——blanching——conditioning——drying——frying——de-oiling——pre-cooling ——frozen——packing ——cold storage
2.Capacity (50kg per hour to 2000kg per hour for choosing)
Input potato capacity: 1000kg/h
Output capacity: 300-500kg/h
3.Require for potato
Fresh potatoes, no decay ,no degeneration and plant diseases and insect pests, Smooth outside look without eye.
dry matter: ≥21%
starch content :≥15%
reducing sugar: ≤0.25%
weight of potato:150-500g
4.Quality for the final products :frozen potato chips
Sectional dimension :7.5*7.5mm and 10*10mm
Length: ≥76 mm(≥5%) , ≤45 mm(≤30%)
Company Profile
Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
