Wine making frist step:grape crushing machine Quality Choice

FOB Price

USD $9,000 - $80,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Shanghai
Payment Terms:T/T L/C D/P D/A Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Shanghai, China	Brand Name:	GY
Model Number:	GY-GR102	Type:	Stripper	Voltage:	380/220V
Power(W):	1.5kw	Weight:	850KG	Dimension(LWH):	22009001600
Certification:	CE	Warranty:	1 years	After-sales Service Provided:	Engineers available to service machinery overseas

Packaging Details

wooden package

Product Description

Specifications

1.China grape crusher
2.high efficiency with advance designed
3.easy to operate
4.fast delivery

Product Description

Performance characteristics

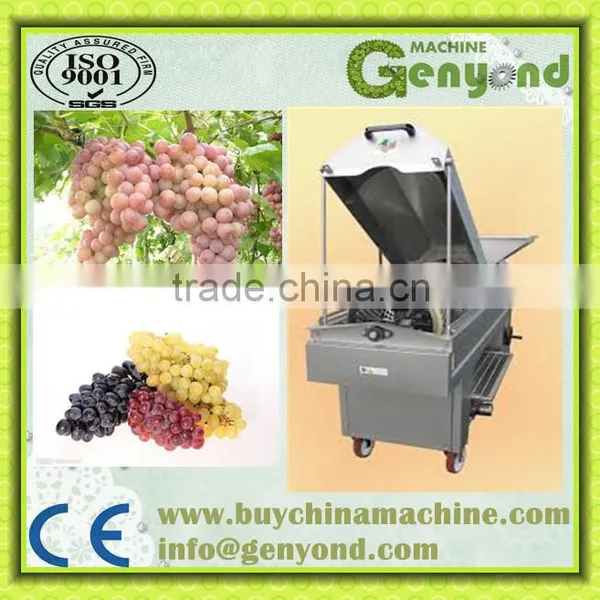

Grape destemming and crushing machine is adopted the French,Italy advanced technique and designed special for the drinks industry.

Main Technical Characteristics

1.This machine frist to rremove the stems,then to smash the grapes.Moblie single screw pump to convey the mashed fruit.

2.The screw pump can be fixed feeding mashed fruit

3.The stem removing equipment can adjust the rotary speed according the different grade of grapes.

4.Grape destemmer main parts are made of stainless steel 304.The crusher roller is made of for non-toxic,high elastic rubber.

5.The smashing mashine is easy to operate.Its rollers are rubber roller ,do not hurt the grapes and cores.

6.The size of the screen according the size of the garpes,beore order the machine ,pls confirm the max and min size of the garpes.

Main Technical Characteristics

Model	GY-GR101	GY-GR102	GY-GR103	GY-GR104	GY-GR105
Capacity	5-7t/h	8-10t/h	18-22t/h	30-35t/h	45-50t/h
Slurry pump discharge	90mm	100mm	100mm	125mm	125mm
Crushing power	0.75kw	1.1kw	1.1kw	3.0kw	3.0kw
Host power	1.5kw	2.2kw	4.0kw	5.5kw	5.5kw
Slurry pump power	4.0kw	5.5kw	7.5kw	15kw	15kw
Weight	690kg	850kg	1000kg	1800kg	1950kg
Dimension (mm)	19007201350	22009001600	25509101630	315012002000	320012502000
