Home > Products > filling and packing machine > Automatic High Speed Multi-Functional Pillow Packaging Machine

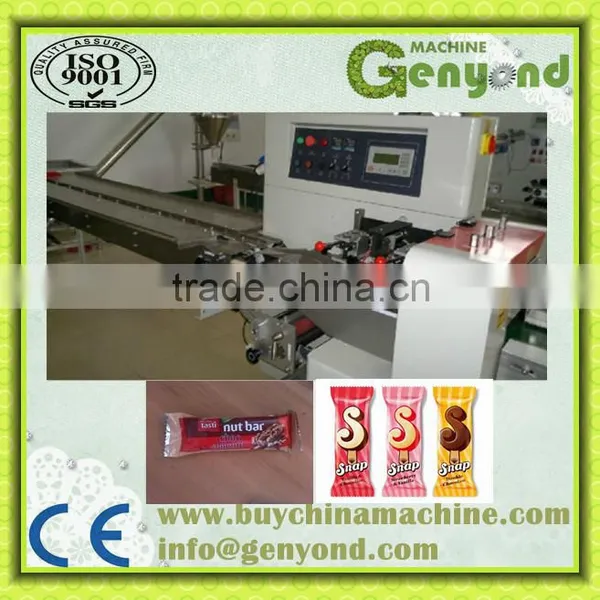

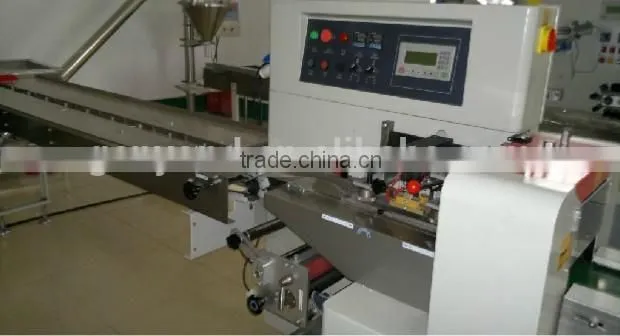

Automatic High Speed Multi-Functional Pillow Packaging Machine
- 200 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card
Product Details
Condition: | New | Application: | Food, Commodity | Packaging Type: | Stand-up Pouch, Pouch |
Packaging Material: | Plastic, Paper | Automatic Grade: | Semi-Automatic | Driven Type: | Manual |
Voltage: | 220V | Power: | 2.4KW | Place of Origin: | Shanghai, China |
Brand Name: | GY | Model Number: | GY-112 | Dimension(L*W*H): | 4020*770*1450mm |
Weight: | 900kg | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Wooden package
Product Description
Specifications
1.suitable for pharmaceutical industry,such as ice creamm bread,cake2.Easy to operate and maintain
3.Stable performance
Application
Suitable for packing regular objects such as moon cake, biscuit, bread, instant noodle, toilet soap, industrial parts, paper box or trays
Production Main Characteristic
1.Be controlled by double transducer, flexible cutting and setting of bag length, time and film saveable.
2.Human-machine operation, convenient and quick parameter setting.
3.Self diagnosis of failure function, clear failure display
4.High sensitivity photoelectric eye tracking color mark and digital input of cut position make the sealing and cutting more accurate.
5.Separate PID control temperature, suitable for various packing materials
6.Stopping the machine in the selected position, no sticking to the knife and no waste packing film
7.Simple driving system, reliable working and convenient maintenance
8.All the controls are achieved by software, convenient for function adjusting and upgrading
Production Technical Patameters
Model | GY-112 |
Film Width | Max320mm |
Bag Length | 130~320mm,180~440mm |
Bag Width | 50~160mm |
Product Height | Max45~60mm |
Film Roll Diameter | Max320mm |
Packing Speed | 40~230pack/minute |
Power | 2.4kw |
Dimension | 4020*770*1450mm |
Weight | 900kg |
More Pictures
Company Profile
Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Contact Us
- Shanghai Genyond Technology Co., Ltd.
- Contact nameWakin Yong
- Phone86-021-34796156
- AddressF07, Bldg. 1, No. 1328, Hengnan Road, Pujiang Town
