Folklift Truck

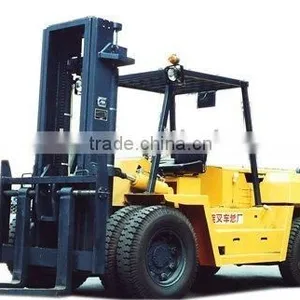

Folklift Truck thumbnail-1
Folklift Truck photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Power Souce:
AC Motor
Contact Supplier Request Quote Chat Now
Hopeland International Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Power Souce AC Motor

Specifications

Forklift truck is widely used in station, port, airport, factory, warehouse or others production departments. it is the high eff

Overview

Forklift truck is widely used in station, port, airport, factory, warehouse or others production departments. it is the high efficient equipment for loading and unloading, stacking, Short-Distance transport.

Technical Parameter

1) Load capacity: 3,000kg
2) Load center: 500mm
3) Max. lifting speeds (full load): 400mm/s
4) Max. driving speeds: 18/20km/h
5) Drawbar pull: 10,000N
6) Grade ability: 15/20%
7) Lifting height: 3,000mm(2 stage mast with 3300mm,3500mm & 4000mm optional; 3 stage mast with 4.5m,5m & 6m optional)
8) Free lift: 45mm
9) Tilting angles (forward - backward): 6 / 12
10) Min. turning radius: 2,450mm
11) Angle stacking aisle: 2,110mm
12) Min. under-clearance: 125mm
13) Overall length: 3,810mm
14) Overall width: 1,228mm
15) Overall height (with mast retracted): 2,230mm
16) Overall height (with mast extended): 4,270mm
17) Overall height to overhead guard: 2,190mm
18) Wheel base: 1,750mm
19) Front tread: 1,000mm
20) Rear tread: 970mm
21) Front tyre: 28x9-15
22) Rear tyre: 6.5 - 10
23) Total weight: 4,250
24) Fork width: 125mm
25) Fork thickness: 45mm
26) Backrest height: 1,195mm
27) Fork length: 1070/1,200mm(1370mm,1500mm &1800mm optional)
28) Engine model: 490BPG/A490BPG
29) Rate power: 37kW( ISUZU 4JG2PE-01 45KW)
30) Rotate Speed at rate power: 2,650 rpm
31) Max. torque: 148N.m
32) Rotation speed at max. torque: 1,800-1900 rpm
33) Power shift: Hydraulic transmission
33) Packing Details:2 pcs/20CTN & 5pcs/40CTN

Features

1) Dual air filter
2) Up exhaust.
3) Comfortable fluorescent panel
4) Hydraulic transmission
