Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line

Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line thumbnail-1
Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line thumbnail-2
Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line thumbnail-3
Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line thumbnail-4
Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line thumbnail-5
Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line thumbnail-6
Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line photo-1
Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line photo-2
Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line photo-3
Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line photo-4
Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line photo-5
Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line photo-6
US$ 3,000 - 5,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Tie Long
Model Number:
Dia 300-800mm
Contact Supplier Request Quote Chat Now
Hopeland International Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Tie Long
Model Number Dia 300-800mm
Shaping Mode Die Casting
Product Material Steel
Product Other, spun pile

 Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line



Features:



1. We absorb the advantages of similar products which design and manufacture in China and abroad.

2. The structure of this mould is novel, they are made in sections, and couple with bolts.

3. This spun pile mould is easy to transport and quick to assemble. Positioning is accurate.

4. It has good overall rigidity and smooth operation.



Technical Parameter:



Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line



Technical Data:



Diameter mm

Wheel distance mm

Wheel diameter mm

Length m

300

2000

600

7-12

400

2000

630

7-14

500

2000

730

7-15

550

2000

780

7-15

600

2000

830

7-15

800

2000

1030

7-15

1000

2000

1230

7-15





Working Principle:

1. This spun pile steel mould shall operate together with pile spinning machine.

2. This mould forms pile under the force of  centrifugal. There are longitude stiffeners and latitude stiffeners on the mould surface.

3. The mould rotates in high speed under the motor driven. The redundant water in the slurry is released by the force of centrifugal, and the concrete is dense and high in strength. And the spun pile is formed around the inner wall of the mould.

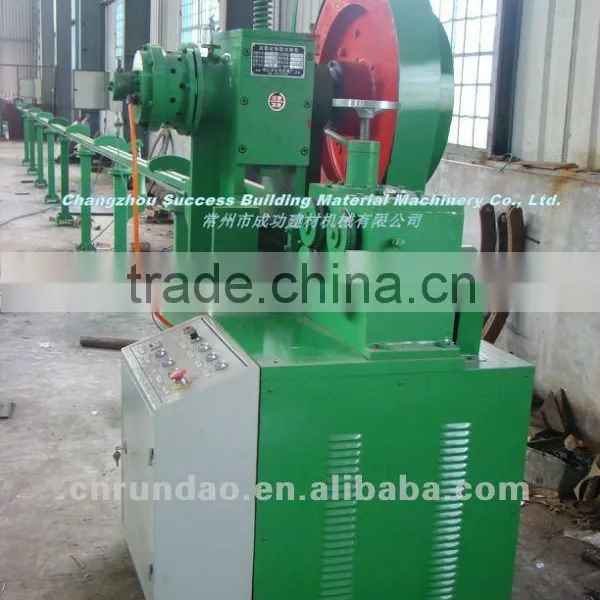

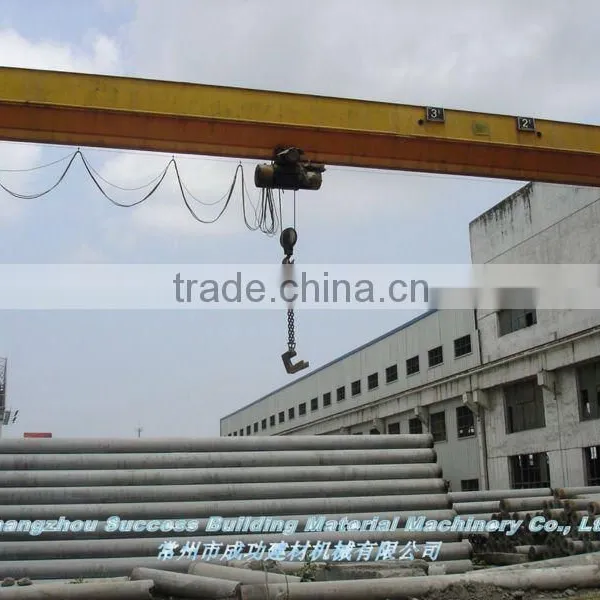

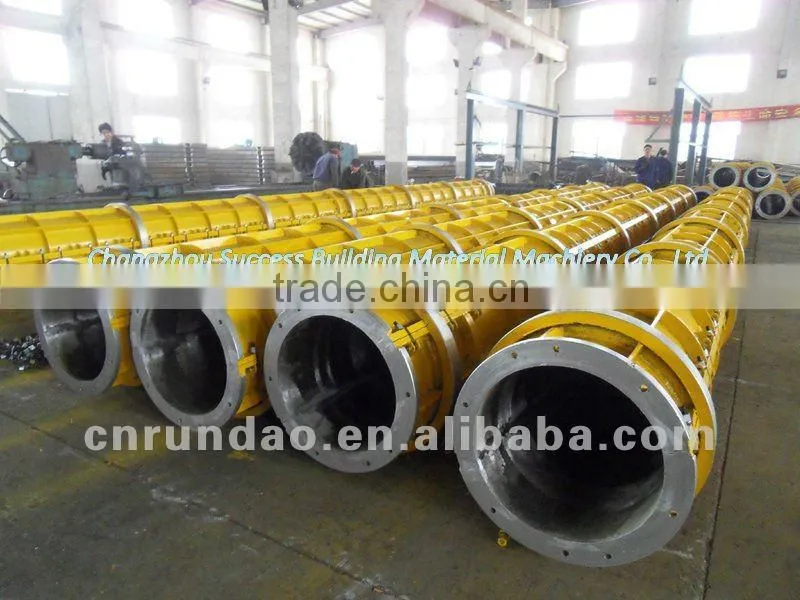

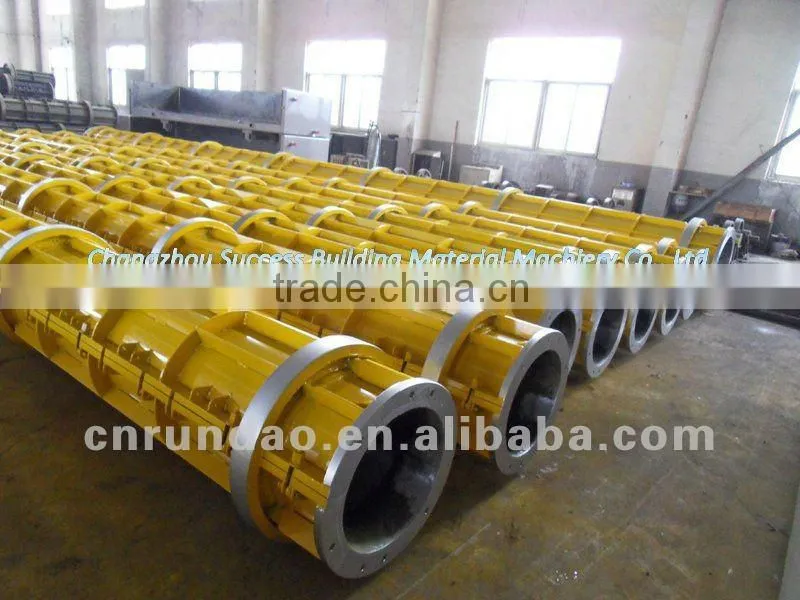

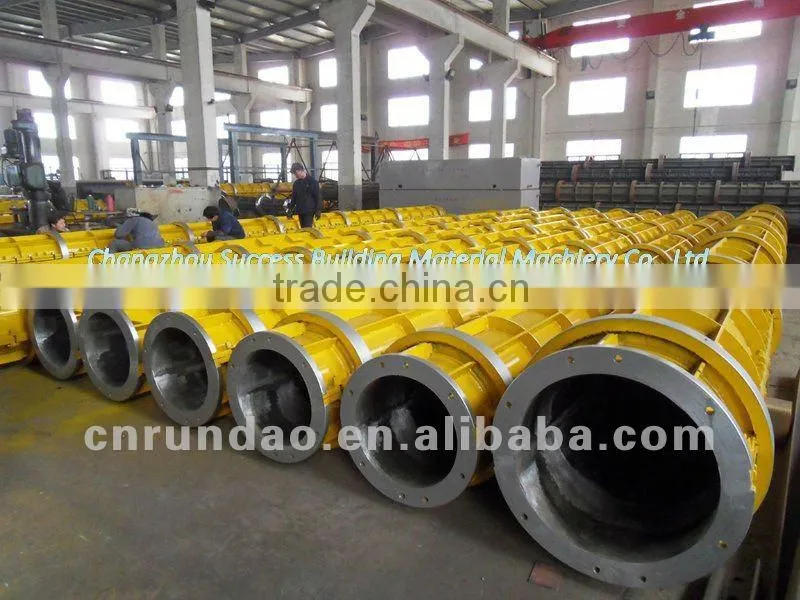

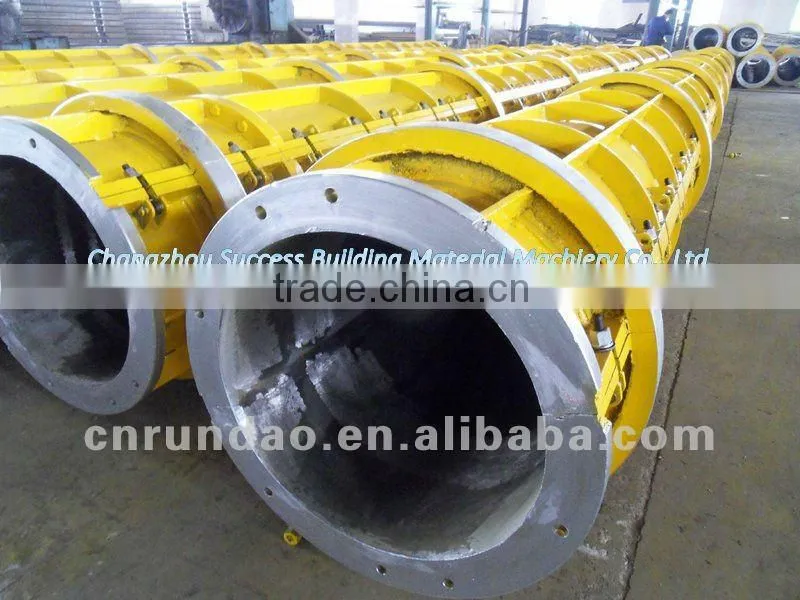

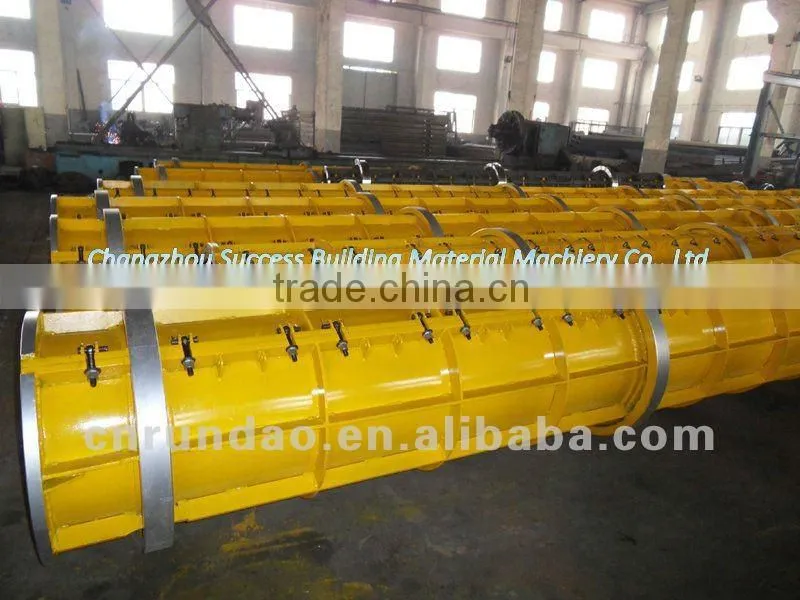

Pictures of Product:



Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line   Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line



Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line  Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line



Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line  Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line

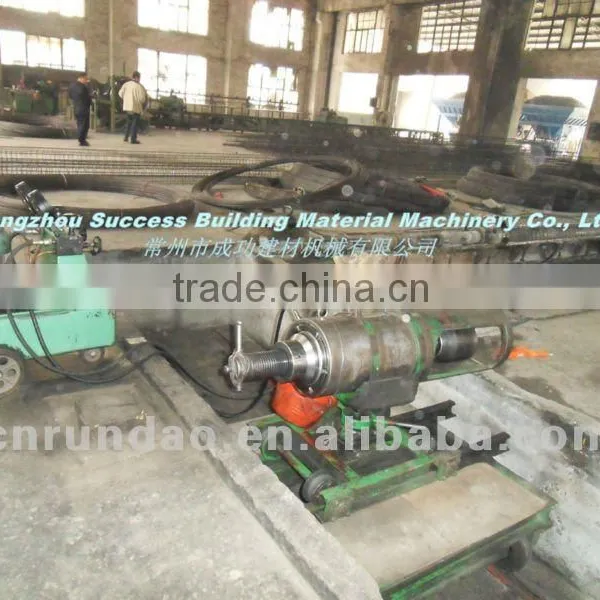

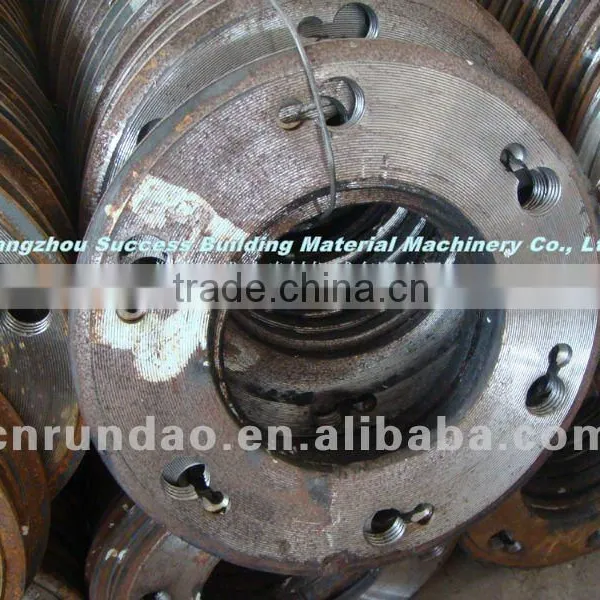

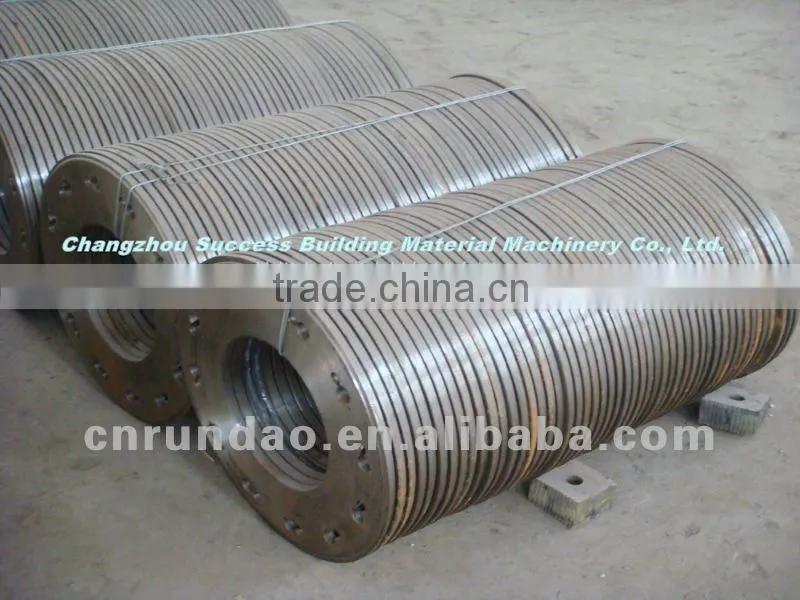

Tension Parts:





Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line  Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line  Concrete Spun Pile Making Machine/Pre-stressing Concrete Pile Machinery/PC Spun Pile Production Line
