pear selecting machinecan sort apple, pear, peach, orange, persimmon, date, onion, tomato, mango, lemon, guava, kiwi fruit

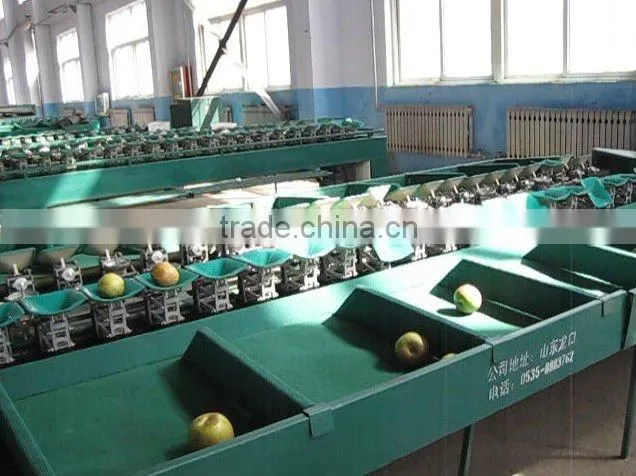

pear selecting machine
Product information:
Application: The fruit grader is used for separating some round fruit, such as apple, pear, peach, orange, persimmon, date, onion, tomato, mango, lemon, guava, kiwi fruit, pomegranate,etc. It is convenient to move, suitable for small scale work. If required to save labor, a automatic fruit loading device can be installed to work with this machine.
Technical parameters:
FGX-Z Vertical Fruit Grading Machine
Model No: FGX-Z
Separating speed: 7200 pcs/H
Power: 0.55KW
Power supply: 220V
Separation grade: 9
Weight range of separation: 20-1500g
Separation precision: ±3g
Layout: 5.00X0.60X0.86m
Weight: 0.6MT
FGX-L Horizontal Fruit Grading Machine
Model No: FGX-L
Separating speed: 12,800pcs/H
Power: 0.75KW
Power supply: 220/380V
Separation grade: 8
Weight range of separation: 20-1500g
Separation precision: ±2g
Layout: 6.60X1.26X1.10m
Weight: 1MT
Electronic Fruit Grading Machine Specifications
Total power |
1.5KW |
Sharpness of separation |
±3g |
Length |
Grader: 9.6m, Conveyor belt: 1.5m (automatic fruit loader), 3m(manual fruit loading) |
Width |
Grader: 1.2m. If automatic fruit loader is required, the width will be 3m. |
Height |
0.95m |
Working efficiency |
15000-21000pcs/hour. |
Grade |
9 grades,9 compartments |
Electronic controlling system |
Siemens elements text display, PLC, Weighing module, Weighing sensor |
Operating system |
Chinese/English Interface |
Double-lane Electronic Fruit Grading Machine Specifications
Total power |
3KW |
Length |
Grader: 12.8m, Conveyor belt: 1.5m (automatic fruit loader),3m(manual fruit loading) |
Width |
Grader: 2.3m. If automatic fruit loader is required, the width will be 5m. |
Height |
0.95m |
Working efficiency |
Double lane, 42000pcs/hour. |
Grade |
12 grades,24 compartments |
Electronic controlling system |
Colour touch screen, PLC, Weighing module, Weighing sensor all use Siemens |
Operating system |
Chinese/English Interface |
More pictures:
