Specifications

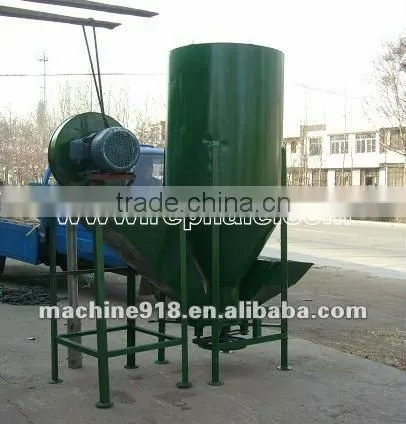

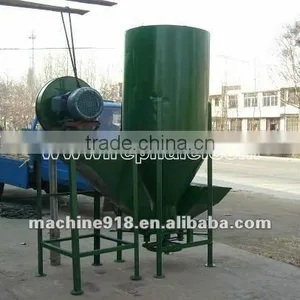

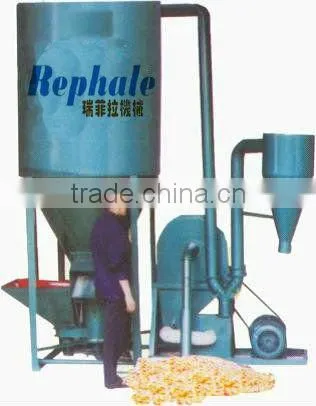

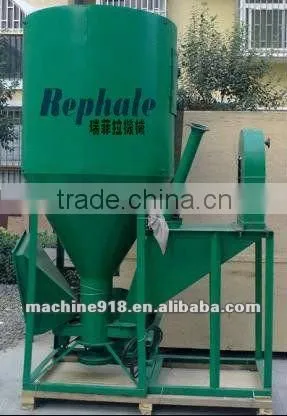

The vertical crushing mixer, which takes small area is suitable for producing all-around nutrition feedstock.Crushing Mixing Machine
Brief introduction
The vertical crushing mixer, which takes small area is suitable for producing all-around nutrition feedstock. The output is from 250kg-1000kg/time.
It is a whole processing equipment combined with the function of crushing and mixing. It is suitable for the small farm and feed factory. The machine adopts the structures of rotary and throwing out to make the material billow up and down, move left and right, in order to mix uniformly and fast. Reasonable structure, convenient to operate and use. Covering little space, low noise, dustless, energy saving, environmental, convenient to install and detach, durable and easy to clean and maintain the machine, multifunctional machine.
Characters of mixer:
1. Run stable, low noise, mix uniformly and fast.
2. Adopt the normal carbon steel, it is durable.
3. It is suitable to mix feed, aquatic feed, chemical, additives, medicine, fertilizer and soon.
4. Simple and compact structure, energy saving, convenient to operate and maintain. The machine can be storage bin for the material after crushing and mixing.
The process of the crushing and mixing machine:
The material can be fed in the crushing machine through conveyor. The crushed material can be blow into the upper hopper by fan. After crushing, start the mixer. You can add the additives from the down hopper. The additives will be lifted to the top of mixing machine through the screw conveyor in mixing machine, then the additives will through out like a umbrella, then fall around the wall of mixer to the bottom , then the material will lift by screw conveyor again, do this cycle until the material is uniform. At last, open the discharge, the final product comes out.
Main parameters
Model |
Crushing Motor |
Mixing Motor |
Capacity |
FJYT250 |
5.5 kw |
1.5 kw |
250-600kg/h |
FJYT500 |
7.5 kw |
3 kw |
500-850kg/h |
FJYT750 |
7.5 kw |
3 kw |
750-900kg/h |
FJYT1000 |
7.5kw |
3kw |
1000-1500kg/h |
FJYT2500 |
15kw |
3kw |
2500-3000kg/h |
